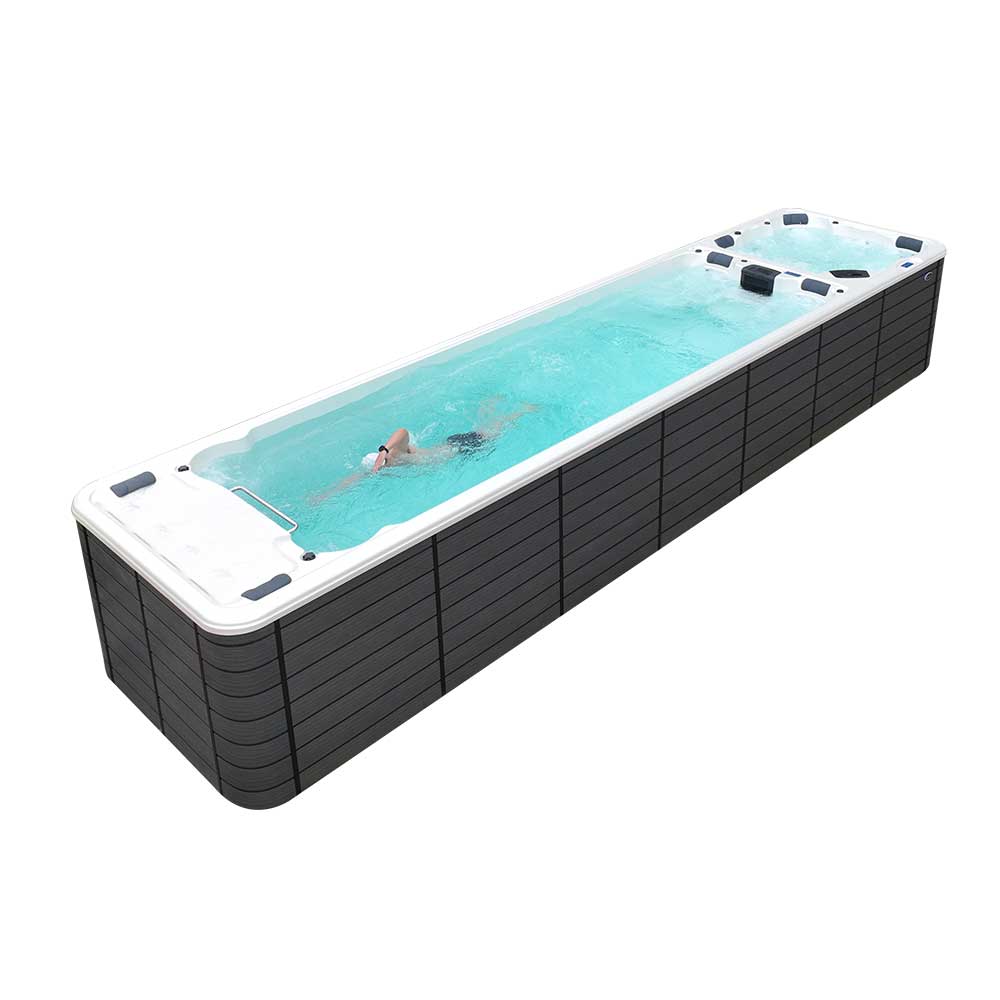

BG-6616 10m Dual Zone Swim Spa and Hot Tub Combo
The BIGEER BG-6616 is a 10m dual zone swim spa that combines a 6.58m swimming area with a separate hot tub. Two Balboa control systems and two 3 kW heaters support independent temperature management for swimming and soaking.
The swim zone holds 14,000 liters, while the hot tub holds 2,500 liters, giving the complete unit a listed capacity of 16,500 liters. Its layout includes six seats, two loungers and one standing position across the two zones.
With current swimming, water massage and separate relaxation spaces in one acrylic pool, the BG-6616 brings a flexible swim-and-spa routine to your home or villa project.
Request a Quote
A 6.58m Swimming Area and Separate 2,500-Liter Hot Tub
Extended Room for Swimming and Water Exercise
The swimming area measures 6,580 × 2,060 × 1,445 mm internally. Its elongated layout provides space for swimming practice and water exercise, with seating integrated into the swim side.
Use these internal dimensions when comparing exercise space. The complete product measures 10m long, including the hot tub and surrounding structure.

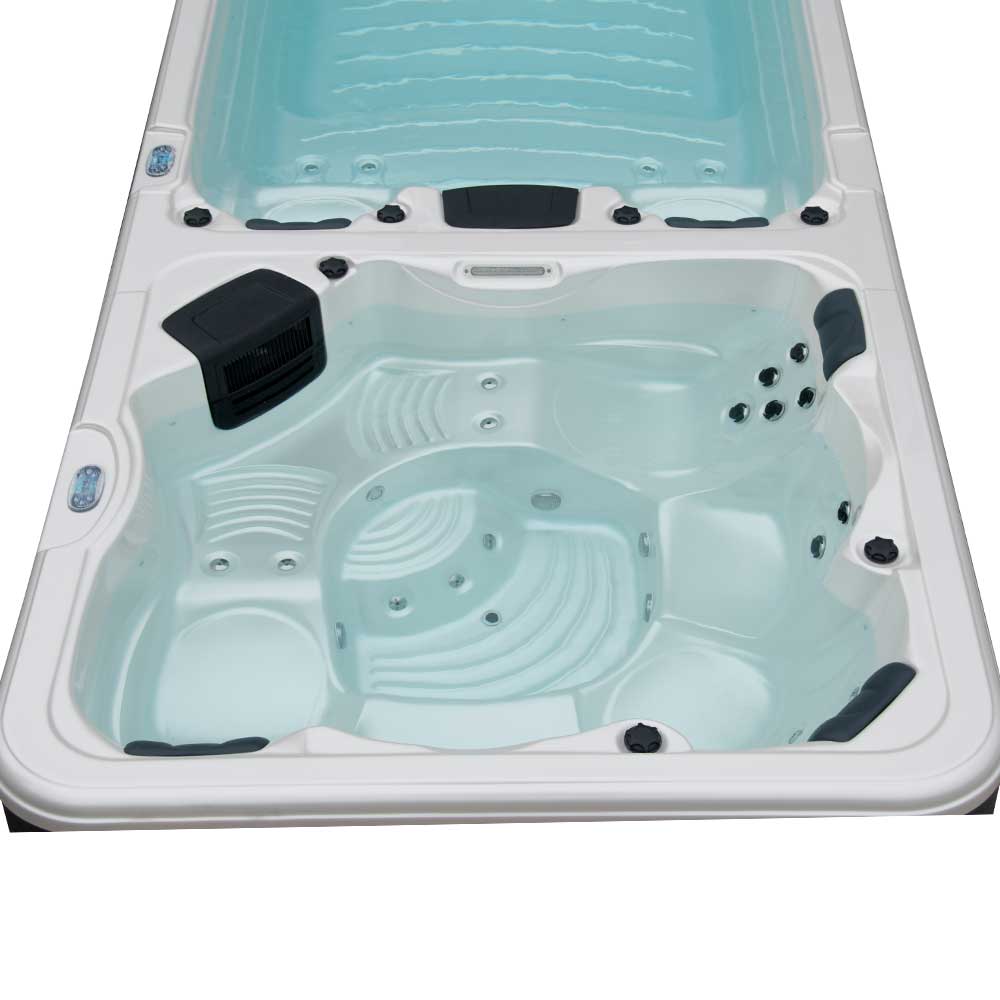

A Dedicated Space for Warm-Water Relaxation
The separate hot tub measures 2,000 × 2,060 × 820 mm internally and holds 2,500 liters. Its dedicated pumps, controls and heater support a separate soaking environment alongside the swimming area.
This divided layout lets you plan an active swim session and a warmer massage session within the same installation.
The BG-6616's listed swim configuration uses five-outlet swim jets and two 3 HP swim-current pumps. A separate 2 HP massage pump serves the swim area.
The swimming-side equipment also includes a 1 HP circulation pump and a 1.5 HP sand filter circulation pump. The detailed pump table below makes it easy to compare the equipment assigned to each zone.
Current Swimming with Dedicated Pumps
A swimming machine can be added to the BG-6616 as an optional configuration. Include this requirement when requesting a quotation so the proposed system, controls and electrical requirements can be reviewed together.
For a training-focused project, ask for the current-performance details of the selected system. The five-outlet jet configuration and the optional swimming machine should be clearly identified in your equipment list.
Specify a Swimming Machine Upgrade
Dual Balboa Controls and Independent Heating
Two Balboa control systems and two 3 kW heaters allow the swim and hot tub zones to be managed separately.
Keep the swimming water at a temperature that suits exercise while setting the hot tub for warmer relaxation. Each zone has its own purpose, without requiring both activities to share the same water temperature.
For your installation, discuss the heating arrangement alongside climate, usage hours, insulation and cover requirements.
Request a Quote
Six Seats, Two Loungers and One Standing Position
The BG-6616 provides six seats and two loungers across the complete unit, plus one standing position. This gives you eight seated or reclining positions and a separate place for standing use.

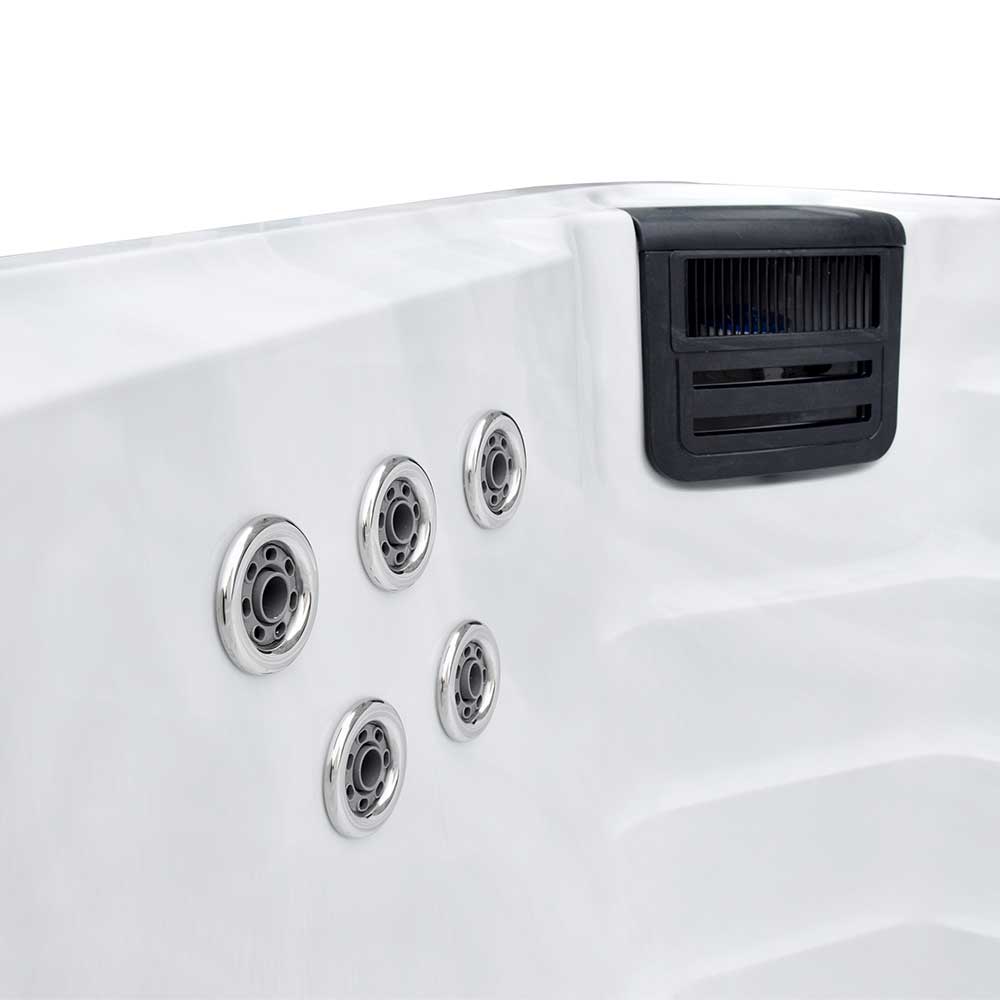

The specified nozzle count is 81. In the hot tub zone, two 2 HP massage pumps provide water massage, supported by a separate 0.5 HP circulation pump.
Four waterfall features add movement to the pool setting. The listed configuration also includes two sunbed pillows and one handrail.

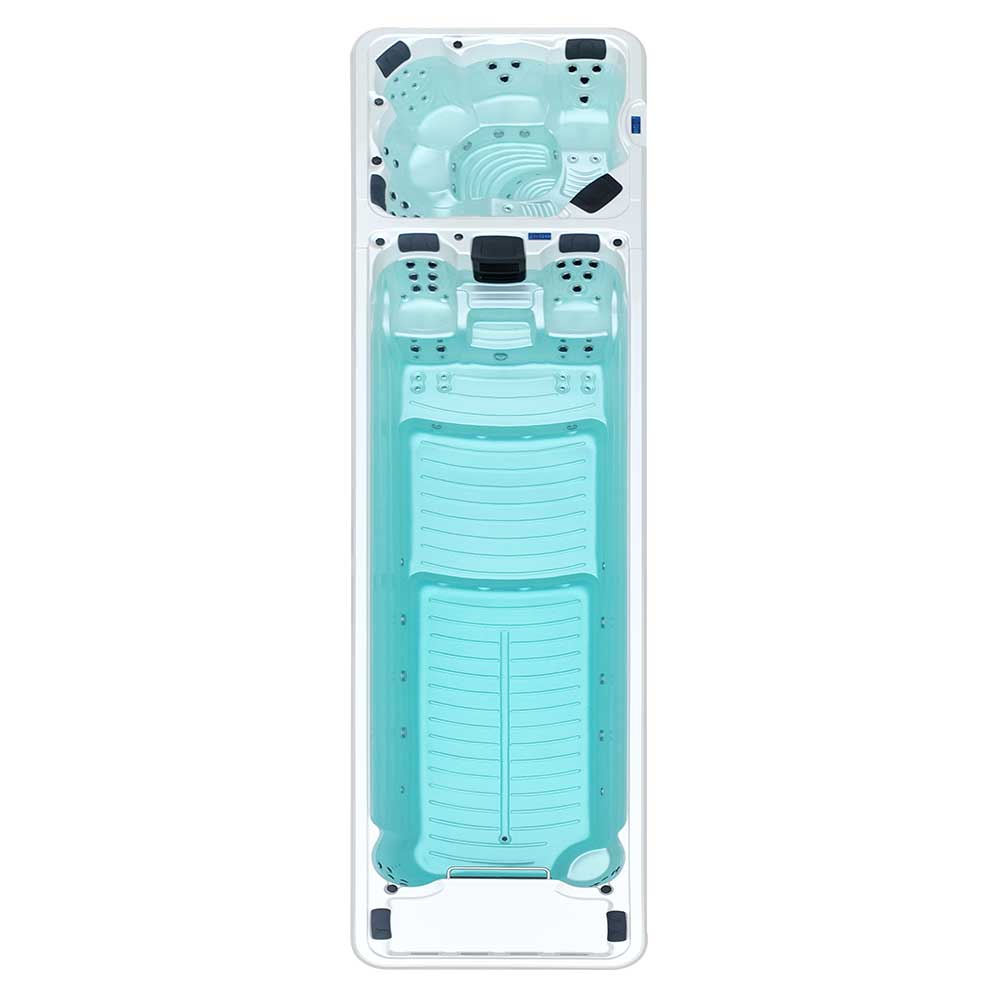

The seating figures describe the complete swim spa; consult the layout drawing to see how the positions are distributed between the two zones.
PHOTO JOURNAL
Aristech Acrylic Construction and Sand Filtration
The BG-6616 combines an Aristech acrylic shell with a hot-dip galvanized steel support frame, an ABS base and PS WPC cabinet panels. Shell insulation forms part of the listed construction.
A sand filter is included with dedicated sand filter circulation equipment. Plan routine water care for both water zones using the maintenance instructions supplied with your selected configuration.
When coordinating the pool with decking or landscaping, preserve access to the equipment compartments and discuss your preferred shell and cabinet finishes with BIGEER.
BG-6616 Dimensions and Technical Specifications
| Specification | BG-6616 |
| Product type | Dual zone swim spa and hot tub combo |
| Overall dimensions | 10,000 × 2,400 × 1,600 mm |
| Overall dimensions in feet | Approximately 32.81 × 7.87 × 5.25 ft |
| Internal swim-zone dimensions | 6,580 × 2,060 × 1,445 mm |
| Internal hot tub dimensions | 2,000 × 2,060 × 820 mm |
| Swim-zone capacity | 1,750 × 600 × 350 mm |
| Hot tub capacity | 14,000 L |
| Hot tub water capacity | 2,500 L |
| Combined water capacity | 16,500 L |
| Seating configuration | 6 seats + 2 loungers + 1 standing position across the unit |
| Specified nozzle count | 81 |
| Swim system | Five-outlet swim jets |
| Control systems | 2 × Balboa |
| Heaters | 2 × 3 kW |
| Sand filter | 400 sand filter |
| Waterfalls | 4 |
| Sunbed pillows | 2 |
| Handrail | 1 |
| Shell material | Aristech acrylic |
| Cabinet panels | PS WPC |
| Support frame | Hot-dip galvanized steel |
| Base | ABS |
| Net weight | 2,320 kg |
| Total rated power | 19.9 kW |
| Listed electrical supply | 220–240 V / 50–60 Hz |
| Zone | Pump configuration |
| Swimming area | 2 × 3 HP swim-current pumps; 1 × 2 HP massage pump; 1 × 1 HP circulation pump; 1 × 1.5 HP sand filter circulation pump |
| Hot tub area | 2 × 2 HP massage pumps; 1 × 0.5 HP circulation pump |
Installation Planning for a 10m Swim Spa
The BG-6622 occupies approximately 14.16 m² before allowing for access steps, service clearance or cover handling.
Space and Delivery Access
The BG-6616 measures 10 × 2.4m externally, giving it an approximate planning footprint of 24 m² before allowing for service access, steps, cover handling and movement around the pool.
Check the delivery route, unloading location and lifting access before finalizing the surrounding landscaping.
Foundation and Electrical Connection
The listed filled weight is 18,820 kg before adding occupants. Have the supporting base or structure assessed for the complete installed load and the conditions at your site.
The specified supply is 220–240 V / 50–60 Hz, with a total rated power of 19.9 kW. Have your installer confirm the phase, circuit capacity, protection and connection requirements for the ordered configuration.
Equipment Access and Project Requirements
Keep access available for both zones' pumps, heaters and controls, as well as the sand filter. Coordinate drainage and maintenance access with the installation drawing.
For hotel, resort or shared-use projects, provide the expected usage and operating schedule so the proposed equipment package can be reviewed against the site's requirements.
Ask BIGEER about:
Shell colors including Cloud Gray, Cloud Blue, Pearl White and White.
Gray or Coffee cabinet finishes and available panel styles.
Additional shell and pipe insulation.
Compatible Wi-Fi controls and Bluetooth audio.
Entry steps, UV water-care options and a suitable swim spa cover.
Request a Quote
-
Can the swim and hot tub zones use different temperatures?
Yes. The listed BG-6616 configuration uses two Balboa control systems and two 3 kW heaters for separate temperature management.
-
Is the BG-6616 a nine-seat swim spa?
It has six seats, two loungers and one standing position across the complete unit. That means eight seated or reclining positions, plus a standing position.
-
How long is the swimming area?
The internal swim area is 6.58m long and 2.06m wide. The complete unit measures 10m long and 2.4m wide.
-
Is a swimming machine included?
The listed system uses five-outlet swim jets. A swimming machine is an optional addition that should be specified when requesting your quotation.
-
How much water does the BG-6616 hold?
Its combined listed capacity is 16,500 liters: 14,000 liters in the swimming area and 2,500 liters in the hot tub.
-
What determines the running cost?
Electricity tariffs, water temperatures, climate, cover use and pump and heater operating times all affect running cost. The 19.9 kW total power rating is not a daily energy-consumption figure.
-
How much does the BG-6616 cost?
Request a quotation based on your selected current system, equipment, finishes, accessories and delivery destination. Include any cover or swimming machine requirements so they can be itemized in the proposal.
