Bigeer
-
BG-6622
-
11800×2500×1650 mm (38.71×8.20×5.41 ft)
-
8220×2160×1480 mm (26.97×7.09×4.86 ft)
-
16000 L /4226.75 gal (Swim Spa Area) 2000 L /528.34 gal (Hot Tub Area)
-
2600 KGS
-
5 seats 2 loungers
-
4 short filter cartridges, 1 set Ozone ，400 sand filter
-
2 × 3 kW Heater
-
2 × Balboa Control System
-
PS WPC
-
Aristech Acrylic Shell
-
Underwater Lighting 4 pc
-
18.4 KW
-
1 unit
-
30 days

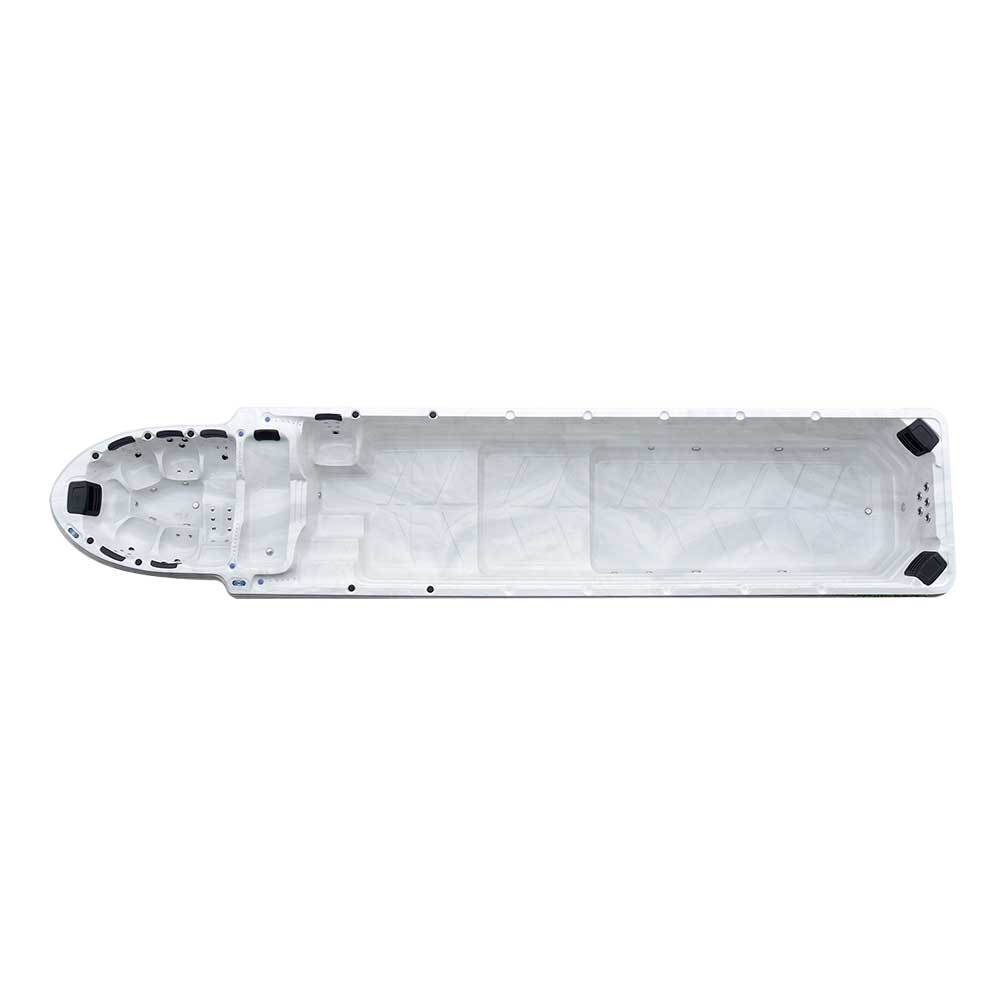

BG-6617 11.8m Dual Zone Swim Spa and Hot Tub Combo
The BIGEER BG-6617 combines an 8.22m swimming area, a separate hot tub and a sun lounge within an 11.8m acrylic swim spa. Dual Balboa control systems and two 3 kW heaters allow the swimming and hot tub zones to be managed separately.
With 16,000 liters in the swim zone and 2,000 liters in the hot tub, this large dual zone swim spa gives you dedicated spaces for current swimming, water exercise and warm-water relaxation. The complete layout includes five seats and two loungers.
Request a Quote
An 8.22m Swim Area,Separate Hot Tub and Sun Lounge
Extended Space for Swimming and Water Exercise

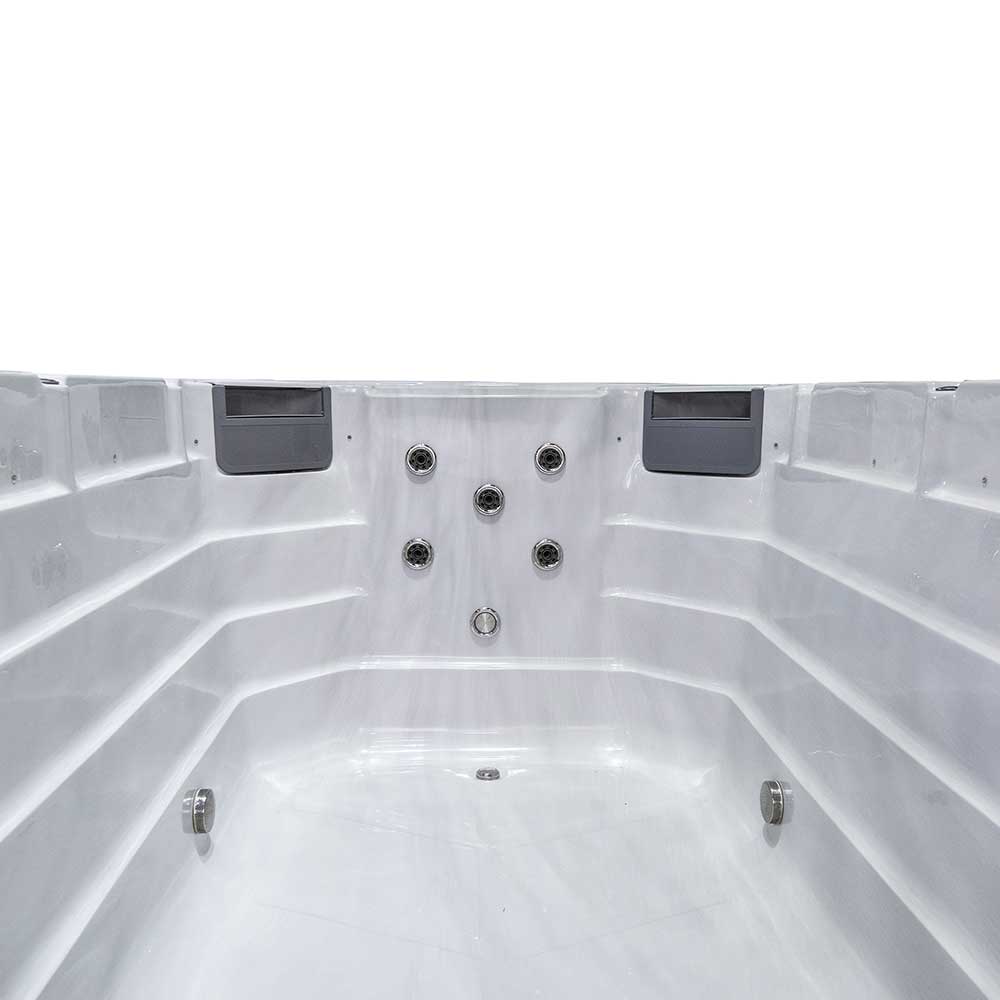

The internal swim area measures 8,220 × 2,160 × 1,480 mm and holds 16,000 liters. Its elongated layout creates room for swimming practice and water exercise, with counter-current outlets positioned at the swimming end.
When planning your pool, use the internal swim-zone dimensions alongside the overall footprint to understand how the space is divided.
View More >>

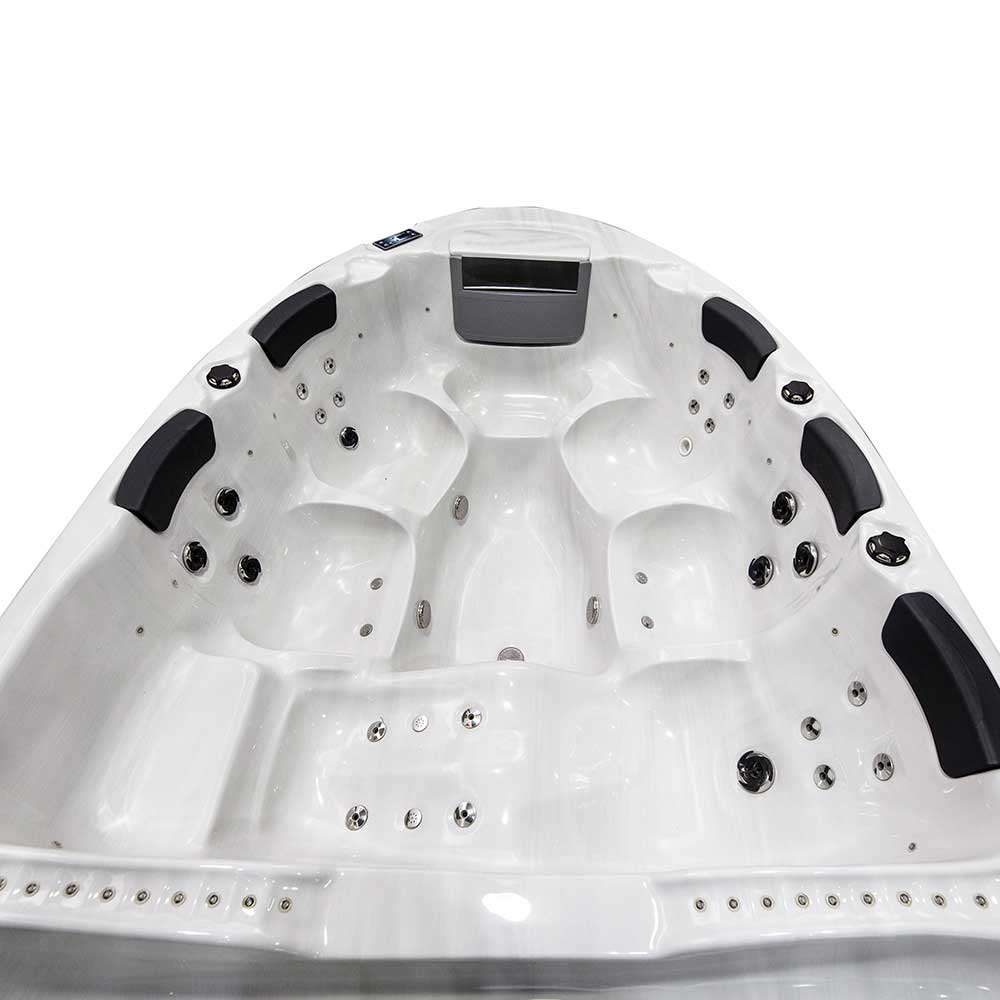

A Dedicated 2,000-Liter Hot Tub
The separate hot tub measures 1,950 × 1,750 × 835 mm internally. It provides a dedicated place to settle into a massage seat after swimming, with its own heating, controls and pump equipment.
Keeping swimming and soaking in separate water zones lets you set temperatures to suit each activity.
View More >>
Five Seats and Two Loungers Across the Complete Spa

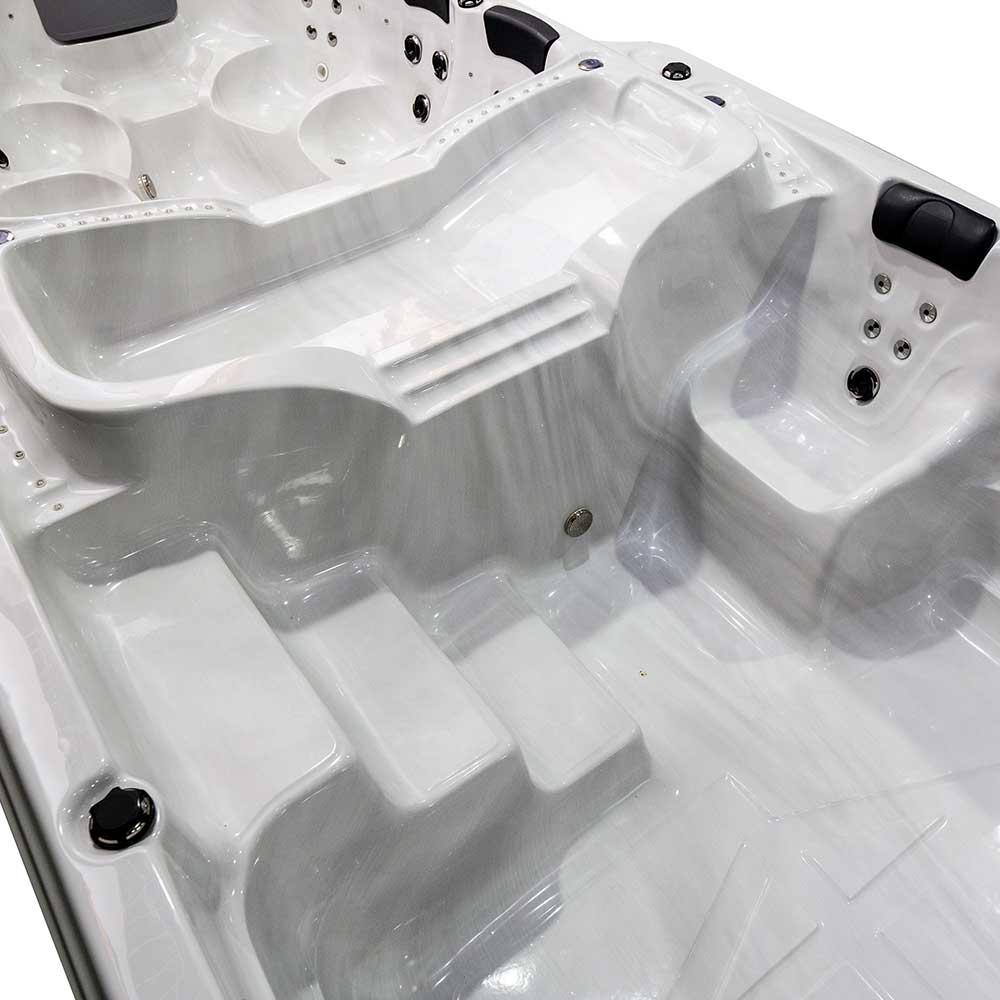

The BG-6617 has five seats and two loungers distributed across the unit. Its layout also identifies a sun lounge measuring 1,750 × 600 × 350 mm, positioned between the hot tub and extended swimming area.
The seating count describes the complete product, rather than seven positions within the hot tub compartment.
View More >>
The specified swimming system uses five-outlet swim jets powered by two 3 HP swim-current pumps. The swim zone also has a 2 HP massage pump and a 1.5 HP sand filter circulation pump.
This configuration brings current swimming, massage and filtration equipment together around the extended swim area.
Dedicated Pumps for Current Swimming
The BG-6617 can be configured with an added swimming machine. Discuss this option when specifying your order so the current system, controls and electrical requirements can be matched to your project.
For a training-focused installation, request the performance details of the proposed current system alongside the pool layout. Confirm the selected swimming machine and any resulting equipment changes in your quotation.
Optional Swimming Machine Configuration
Dual Balboa Controls and Independent Heating
Two Balboa control systems and two 3 kW heaters support separate temperature management for the swimming and hot tub zones.
Set up the swimming area for your exercise routine and the hot tub for warmer relaxation. This separation gives each activity its own water environment within one pool-and-spa layout.
For outdoor installations, discuss your climate, usage schedule, insulation requirements and cover choice when planning the heating configuration.
Request a Quote
Acrylic Construction, Sand Filtration and Fountain Features
The BG-6617 combines an Aristech acrylic shell, shell insulation, PS WPC cabinet panels, an ABS base and a hot-dip galvanized steel support frame.
A sand filter works with the swim zone's dedicated circulation pump. The hot tub has a separate 0.5 HP circulation pump alongside three 2 HP massage pumps.
Twelve fountain outlets add a moving-water feature to the pool setting. One handrail is included in the listed configuration.
BG-6617 Dimensions and Technical Specifications
| Specification | BG-6617 |
| Product type | Large dual zone swim spa and hot tub combo |
| Overall dimensions | 11,800 × 2,500 × 1,650 mm |
| Overall dimensions in feet | Approximately 38.71 × 8.20 × 5.41 ft |
| Internal swim-zone dimensions | 8,220 × 2,160 × 1,480 mm |
| Internal hot tub dimensions | 1,950 × 1,750 × 835 mm |
| Sun lounge dimensions | 1,750 × 600 × 350 mm |
| Swim-zone water capacity | 16,000 L |
| Hot tub water capacity | 2,000 L |
| Combined water capacity | 18,000 L |
| Seating layout | 5 seats + 2 loungers across the complete unit |
| Specified nozzle count | 38 |
| Swimming system | Five-outlet swim jets |
| Control systems | 2 × Balboa |
| Heaters | 2 × 3 kW |
| Sand filter | 400 sand filter |
| Fountain outlets | 12 |
| Shell material | Aristech acrylic |
| Cabinet material | PS WPC |
| Support frame | Hot-dip galvanized steel |
| Base | ABS |
| Handrail | 1 |
| Net weight | 2,600 kg |
| Listed filled weight | 20,600 kg |
| Total rated power | 18.4 kW |
| Listed electrical supply | 220–240 V / 50–60 Hz |
| Zone | Pump configuration |
| Swimming area | 2 × 3 HP swim-current pumps; 1 × 2 HP massage pump; 1 × 1.5 HP sand filter circulation pump |
| Hot tub area | 3 × 2 HP massage pumps; 1 × 0.5 HP circulation pump |
Installation Planning for an 11.8m Swim Spa
The BG-6622 occupies approximately 14.16 m² before allowing for access steps, service clearance or cover handling.
Pool Position and Delivery Access
Start with the overall dimensions of 11.8 × 2.5m, then allow additional room for service access, entry steps, cover handling and movement around the pool.
Review the delivery route, unloading area and lifting arrangements before completing the surrounding landscaping or deck.
Foundation and Electrical Preparation
The listed filled weight is 20,600 kg before occupants. Have the supporting foundation or structure assessed for the complete installed load and site conditions.
The specified electrical supply is 220–240 V / 50–60 Hz, with a total rated power of 18.4 kW. Your installer should confirm the phase, circuit capacity, protection and connection requirements using the documentation for the ordered configuration.
Service Access and Project Use
Keep access available for both zones' pumps, controls and heaters, as well as the sand filter. Coordinate drainage and maintenance access with the final installation drawing.
For a villa, hotel or resort project, include the intended use and operating schedule in your inquiry so the proposed equipment package can be reviewed against the site's requirements.
Ask BIGEER about:
Shell colors including Cloud Gray, Cloud Blue, Pearl White and White.
Gray or Coffee cabinet finishes and available panel styles.
Additional shell and pipe insulation.
Compatible Wi-Fi controls and Bluetooth audio.
Entry steps, UV water-care options and a suitable swim spa cover.
Request a Quote
-
Can the swimming and hot tub zones use different temperatures?
Yes. The listed configuration has two Balboa control systems and two 3 kW heaters for separate temperature management of the swimming and hot tub zones.
-
How long is the swimming area?
The internal swimming area is 8.22m long and 2.16m wide. The complete BG-6617 measures 11.8m long, including the hot tub, sun lounge and surrounding structure.
-
How many people can the BG-6617 seat?
The complete unit has five seats and two loungers, providing seven seating or reclining positions across the layout. These positions are distributed across the product.
-
Is a swimming machine included?
The listed configuration uses five-outlet swim jets. A swimming machine can be added as an option and should be specified when requesting your quotation.
-
How much electricity does the BG-6617 use?
Its total rated power is 18.4 kW. Actual energy consumption depends on pump and heater operating times, water temperatures, climate, insulation and cover use. A running-cost estimate also requires your local electricity tariff.
-
How much does the BG-6617 cost?
Pricing depends on the selected current system, equipment, finishes, accessories and delivery destination. Request an itemized quotation for your project, including any swimming machine upgrade and cover requirements.
Request a BG-6617 Quote for Your Home or Project
Bring an extended swimming area, independent hot tub and sun lounge into your pool project with the BIGEER BG-6617.
Send your delivery country, installation dimensions, intended use and preferred swim-current configuration. Include any finish, cover or accessory requirements so they can be addressed in your quotation.
