Bigeer
-
BG-6609
-
5850x2250x1400 mm (19.19x7.38x4.59 ft)
-
3900x1940x1250 mm (12.80x6.36x4.10 ft)1540×1940×820 mm (5.05×6.36×2.69 ft)
-
6000 L /1585.03 gal（Swim Spa Area） 1500 L /396.26 gal（Hot Tub Area）
-
1415 KGS
-
6 seats 2 loungers
-
4 short filter cartridges, 1 set Ozone
-
2 × 3 kW Heater
-
2*Balboa Control System
-
PS WPC
-
Aristech Acrylic Shell
-
Underwater Lighting 2 pc
-
19 KW
-
1 unit
-
30 days

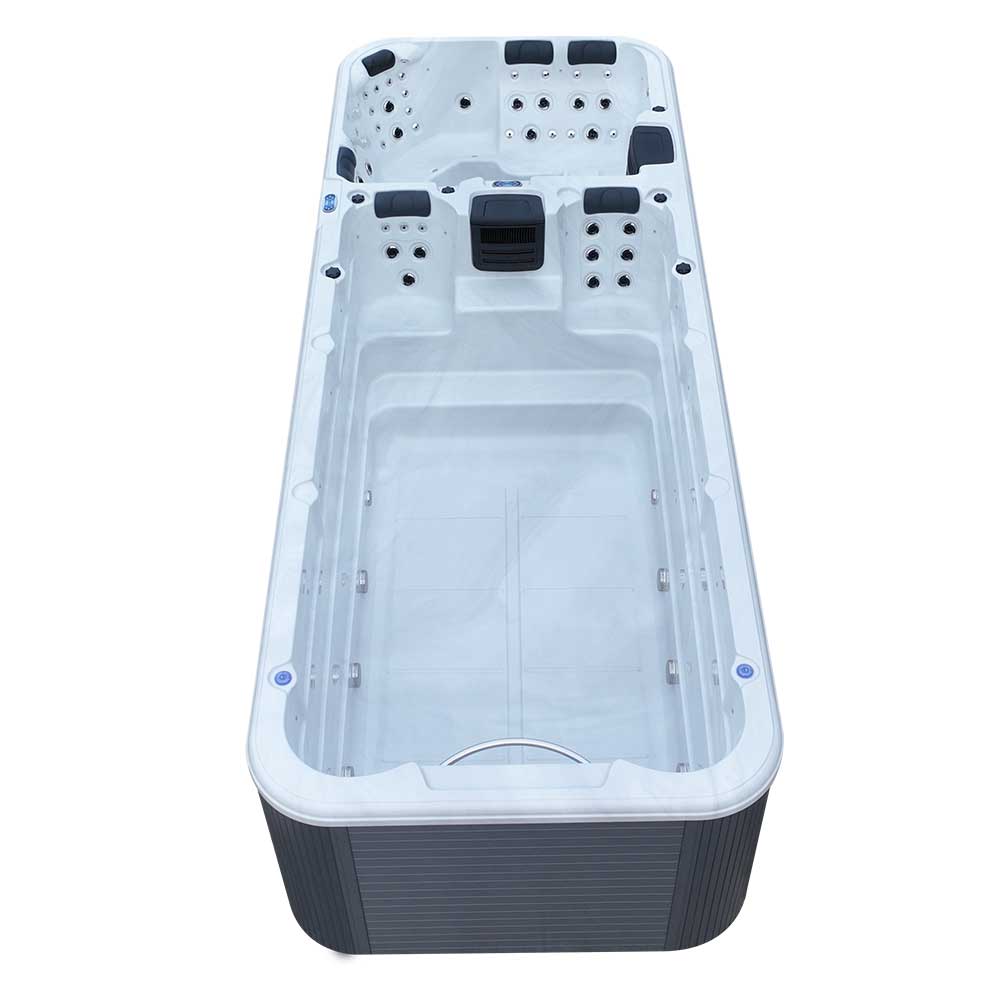

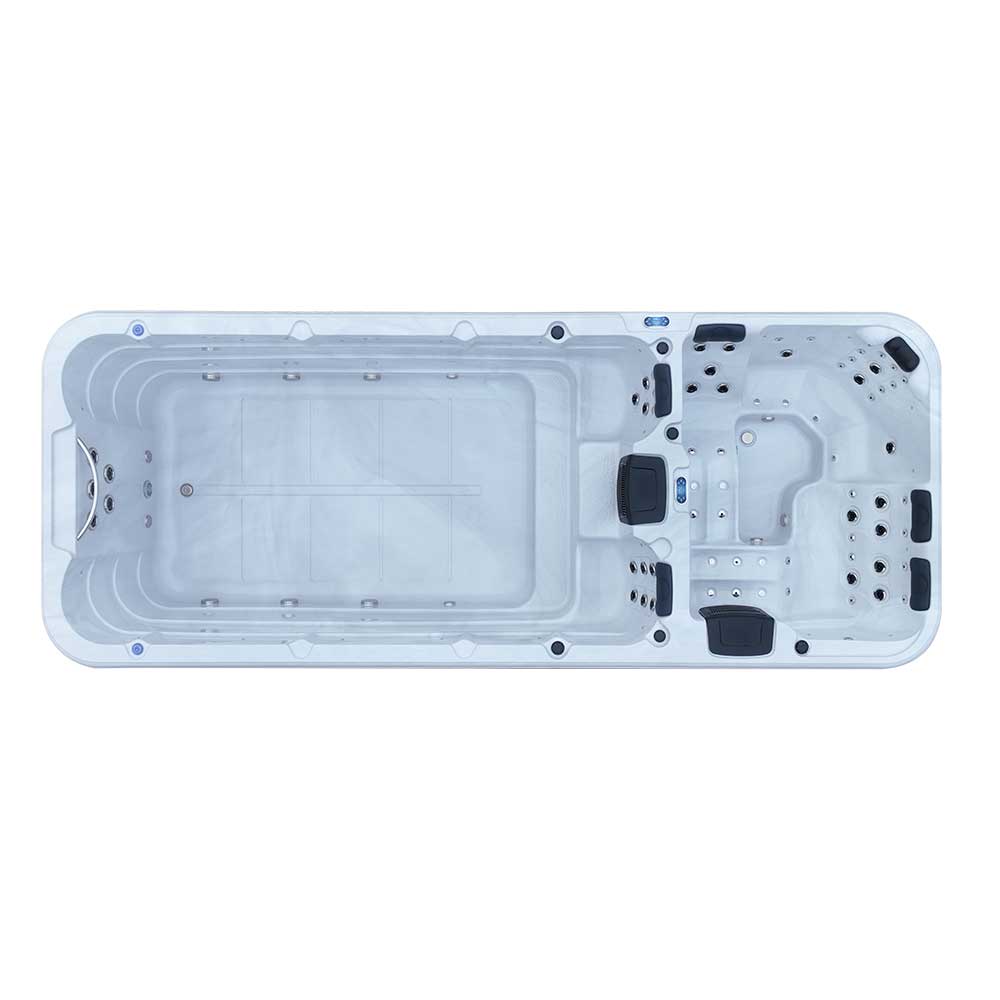

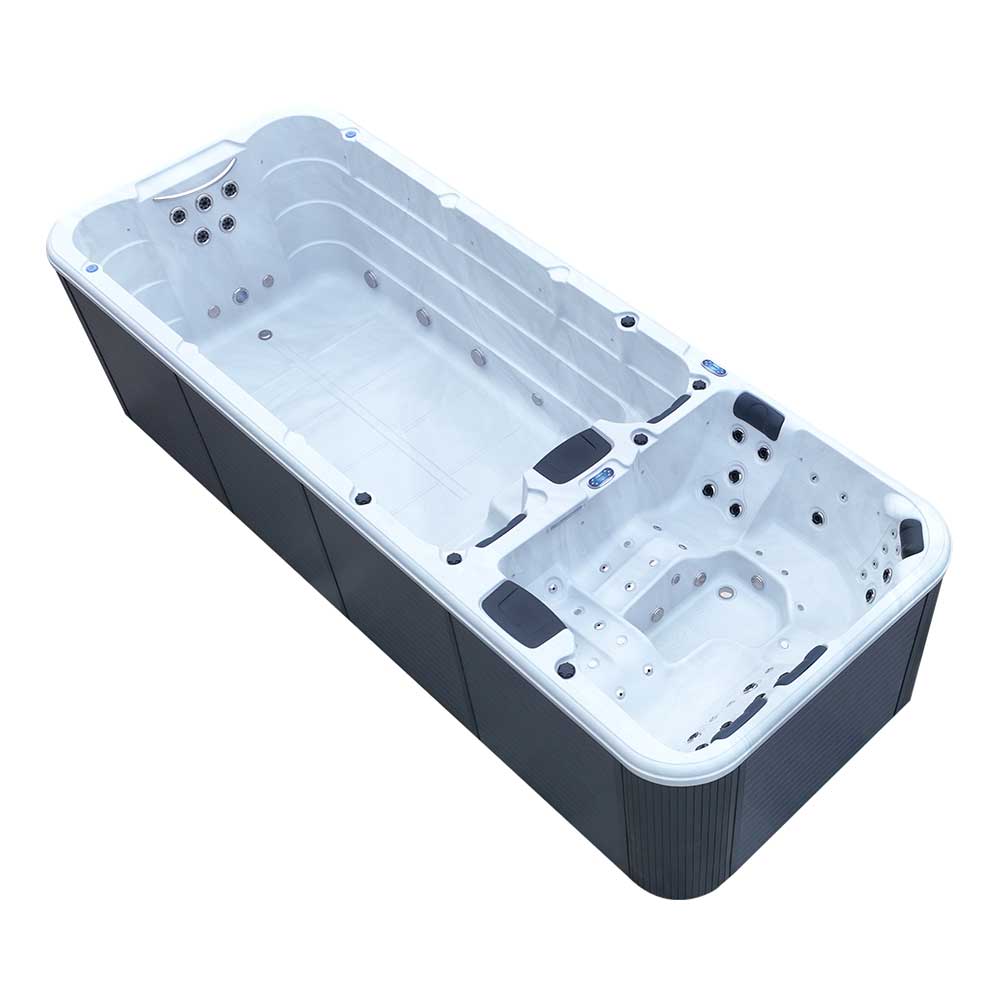

BG-6609 5.85m Dual Zone Swim Spa and Hot Tub
Bring swimming and warm-water relaxation into one space with the BIGEER BG-6609. This 5.85m dual zone swim spa combines a dedicated swimming area with a separate hot tub, giving you two ways to enjoy the water at home.
The BG-6609 features a five-outlet swim jet system, two Balboa control systems and two 3 kW heaters. Its complete seating layout includes six seats and two loungers across the unit, with a listed water capacity of 7,500 litres.
From a morning swim to an evening soak, the divided layout gives exercise and relaxation their own space.
Request a Quote
A 3.90m Swimming Area
The swimming area measures 3,900 × 1,940 × 1,250 mm and holds approximately 6,000 litres. Swim against the generated current or use the area for water-based movement, then take a break in the adjacent massage seating.
The 3.90m measurement describes the swim area. The complete unit measures 5.85m in length, including the hot tub area and surrounding structure.
Request a Quote
A Separate 1,500-Litre Hot Tub
The hot tub area measures 1,540 × 1,940 × 820 mm and holds approximately 1,500 litres. Its separate water area and dedicated equipment allow you to plan a warmer soaking space alongside the swimming section.
This arrangement suits households that want both regular water exercise and a place to unwind without installing two separate units.

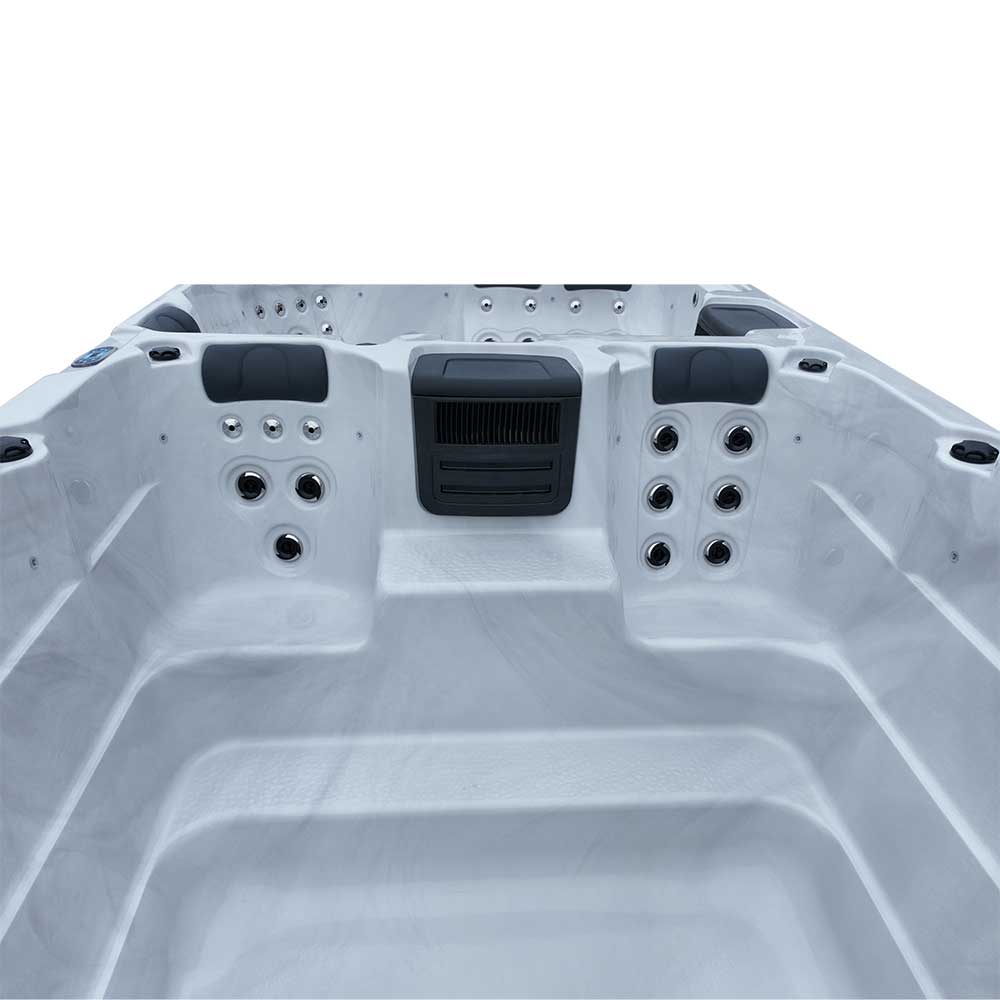

The BG-6609 includes six seats and two loungers in its overall layout. These positions are distributed across the complete swim spa; the specification does not mean that all eight positions are inside the hot tub compartment.
Upright seats and reclining positions offer different ways to enjoy a massage or spend time together. Review the layout drawing when choosing the seating arrangement that best fits your household.

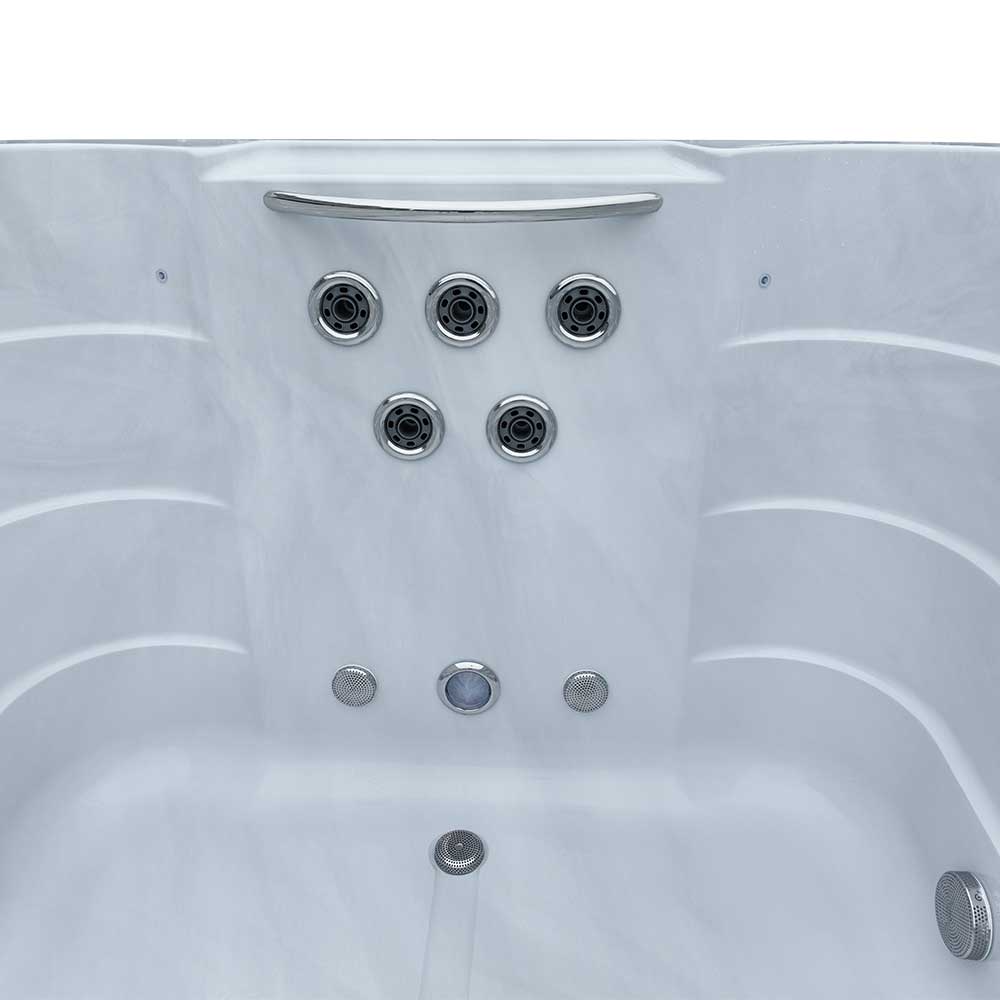

The BG-6609 uses a five-outlet jet system to create its swimming current. Two 3 HP swim pumps power this system, while separate massage and circulation pumps serve the two water areas.
| Equipment | Swimming area | Hot tub area |
| Swim pumps | 2 × 3 HP | — |
| Massage pumps | 1 × 2 HP | 2 × 2 HP |
| Circulation pump | 1 × 1 HP | 1 × 0.5 HP |
Dual Balboa Controls and Two 3 kW Heaters
Two Balboa control systems and two 3 kW heaters support the separate swimming and hot tub areas. The dual zone arrangement allows different temperature settings for swimming and soaking, within the operating limits of the supplied equipment.
Dedicated circulation pumps serve each section. This gives each water area its own circulation equipment alongside the pumps used for swimming and massage.
The listed electrical specification is 220–240 V, 50–60 Hz, with total rated power of 19 kW. Confirm the electrical configuration and connection requirements for your destination before installation.
Aristech Acrylic Shell and Insulated Construction
The BG-6609 combines an Aristech acrylic shell with shell insulation, a hot-galvanized steel support frame and an ABS base. The exterior cabinet is specified as PS WPC, and one handrail is included.
Shell insulation helps limit heat loss through the shell. Actual heat retention and operating costs also depend on the cover, surrounding temperature, wind exposure, water settings and usage.
For a coordinated installation, discuss available shell and cabinet finishes when requesting your quotation.
BG-6609 Dimensions and Technical Specifications
| Specification | BG-6609 |
| Product type | Dual zone swim spa and hot tub |
| Overall dimensions, L × W × H | 5,850 × 2,250 × 1,400 mm |
| Swimming area dimensions | 3,900 × 1,940 × 1,250 mm |
| Hot tub area dimensions | 1,540 × 1,940 × 820 mm |
| Swimming area water capacity | 6,000 L |
| Hot tub water capacity | 1,500 L |
| Combined water capacity | 7,500 L |
| Seating across the complete unit | 6 seats + 2 loungers |
| Listed nozzle count | 55 |
| Swimming system | Five-outlet jets |
| Swimming machine compatibility | Cannot be added |
| Control systems | 2 × Balboa |
| Heaters | 2 × 3 kW |
| Swimming area pumps | 2 × 3 HP swim pumps; 1 × 2 HP massage pump; 1 × 1 HP circulation pump |
| Hot tub area pumps | 2 × 2 HP massage pumps; 1 × 0.5 HP circulation pump |
| Shell material | Aristech acrylic |
| Cabinet material | PS WPC |
| Insulation | Shell insulation |
| Support frame | Hot-galvanized steel |
| Base | ABS |
| Handrail | 1 |
| Net weight | 1,415 kg |
| Listed weight when full | 8,915 kg |
| Total rated power | 19 kW |
| Listed voltage and frequency | 220–240 V / 50–60 Hz |
| Listed electrical supply | 220–240 V / 50–60 Hz |
Planning Your BG-6609 Swim Spa Installation
Ask BIGEER about:
Shell colors including Cloud Gray, Cloud Blue, Pearl White and White.
Gray or Coffee cabinet finishes and available panel styles.
Additional shell and pipe insulation.
Compatible Wi-Fi controls and Bluetooth audio.
Entry steps, UV water-care options and a suitable swim spa cover.
Request a Quote
-
Can the Swimming Area and Hot Tub Have Different Temperatures?
Yes. The BG-6609 has separate swimming and hot tub areas supported by two Balboa control systems and two 3 kW heaters. The dual zone configuration allows separate temperature settings within the supplied equipment's operating range.
-
Does the Hot Tub Compartment Seat Eight People?
The specification lists six seats and two loungers across the complete unit. These positions are distributed between the water areas, so they should not be interpreted as eight places inside the hot tub compartment.
-
How Much Water Does the BG-6609 Hold?
The swimming area holds approximately 6,000 litres and the hot tub holds approximately 1,500 litres, giving a combined listed capacity of 7,500 litres.
-
Can a Swimming Machine Be Added Later?
No. The BG-6609 specification states that a swimming machine cannot be added. This model uses a five-outlet jet system powered by two 3 HP swim pumps.
-
Does the 19 kW Rating Describe Normal Electricity Consumption?
No. The 19 kW figure is the listed total power rating, not a measured average consumption figure. Electricity use depends on which equipment is running, heating demand and operating time. Running costs also depend on your local electricity tariff.
Request a BG-6609 Swim Spa Quote
Choose the BG-6609 for a dedicated swimming area and a separate hot tub within a 5.85m unit.
Contact BIGEER with your delivery location, installation setting, available electrical supply and preferred finishes. Request a quotation with the confirmed equipment list, delivery arrangements and installation information for your project.
