Bigeer
-
BG-6613
-
8150×2250×1500 mm (26.74×7.38×4.92 ft)
-
4150×1900×1330 mm (13.62×6.23×4.36 ft)/3220×1900×840 mm (10.56×6.23×2.76 ft)
-
6000 L /1585.03 gal（Swim Spa Area） 3000 L /792.52 gal（Hot Tub Area）
-
1830 KGS
-
3 seats 2 loungers
-
2 long filter cartridges, 1 set Ozone
-
1 × 3 kW Heater
-
2 × Balboa Control System
-
PS WPC
-
Aristech Acrylic Shell
-
Underwater Lighting 1 pc
-
18.6 KW
-
1 unit
-
30 days

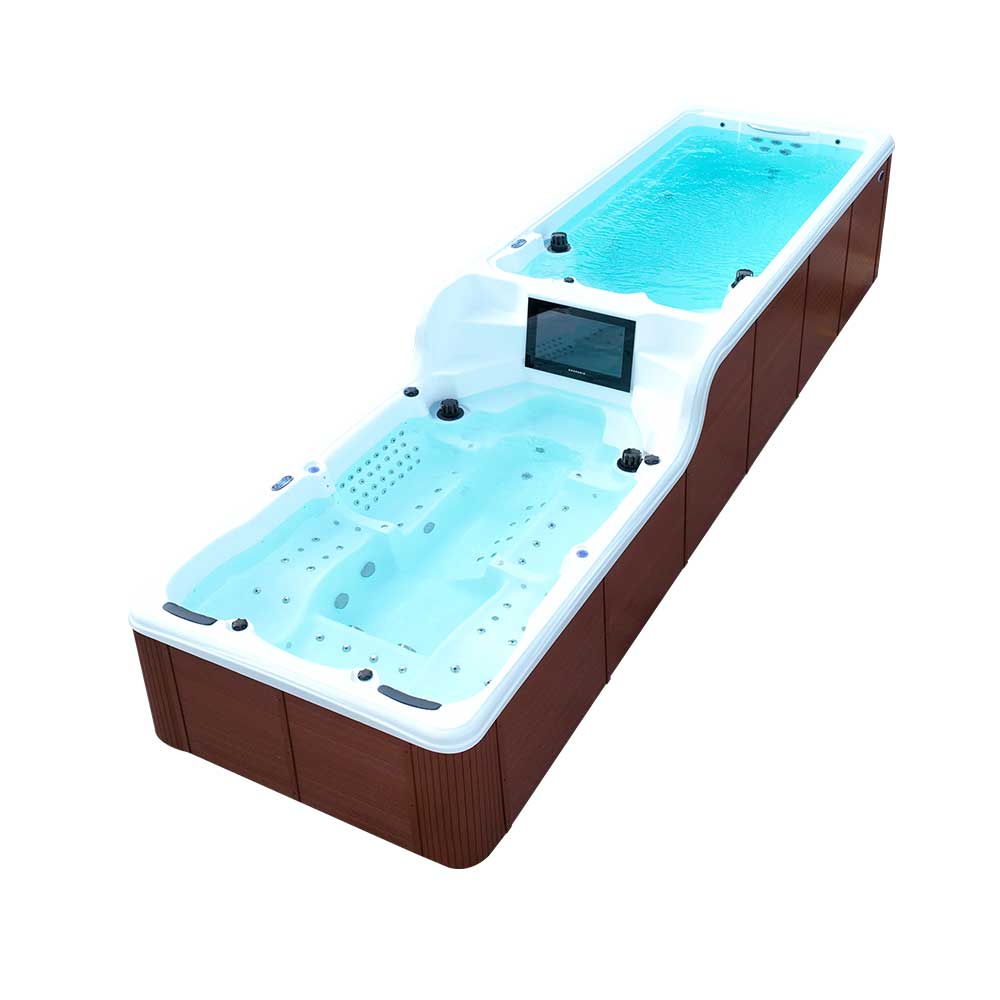

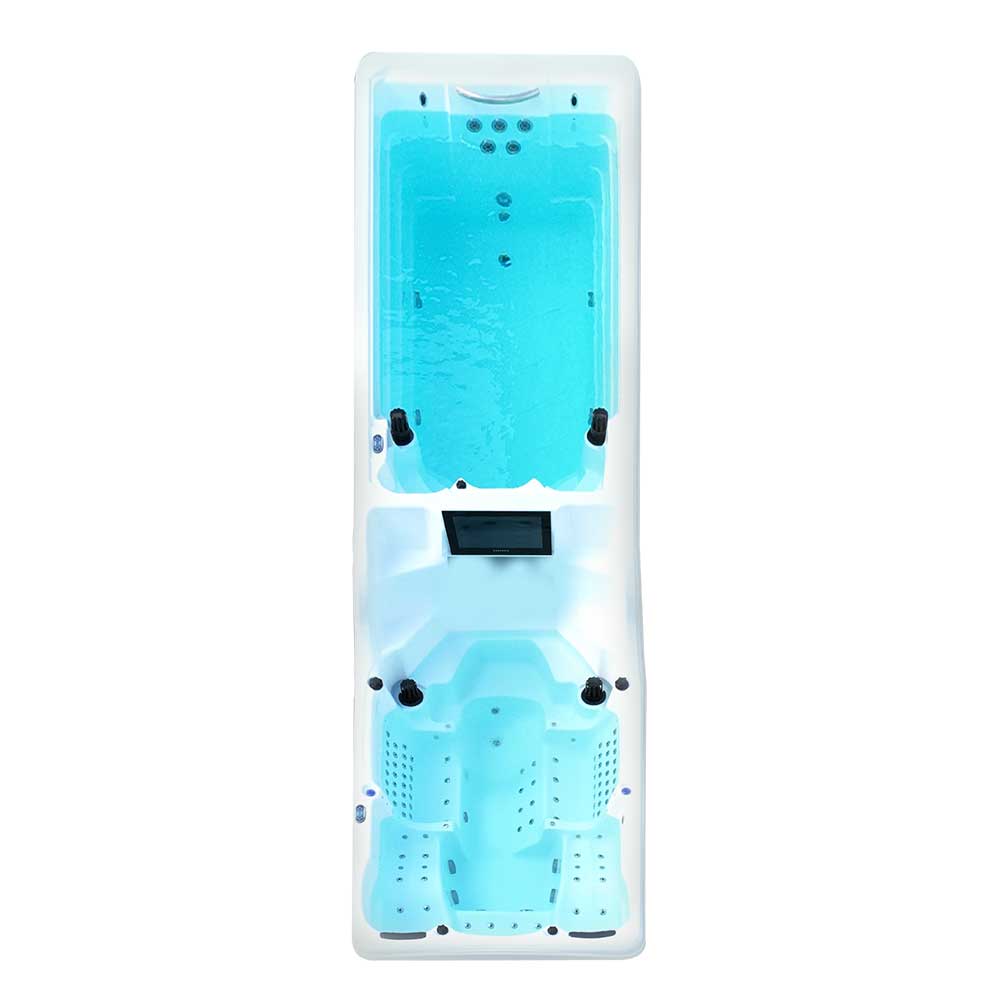

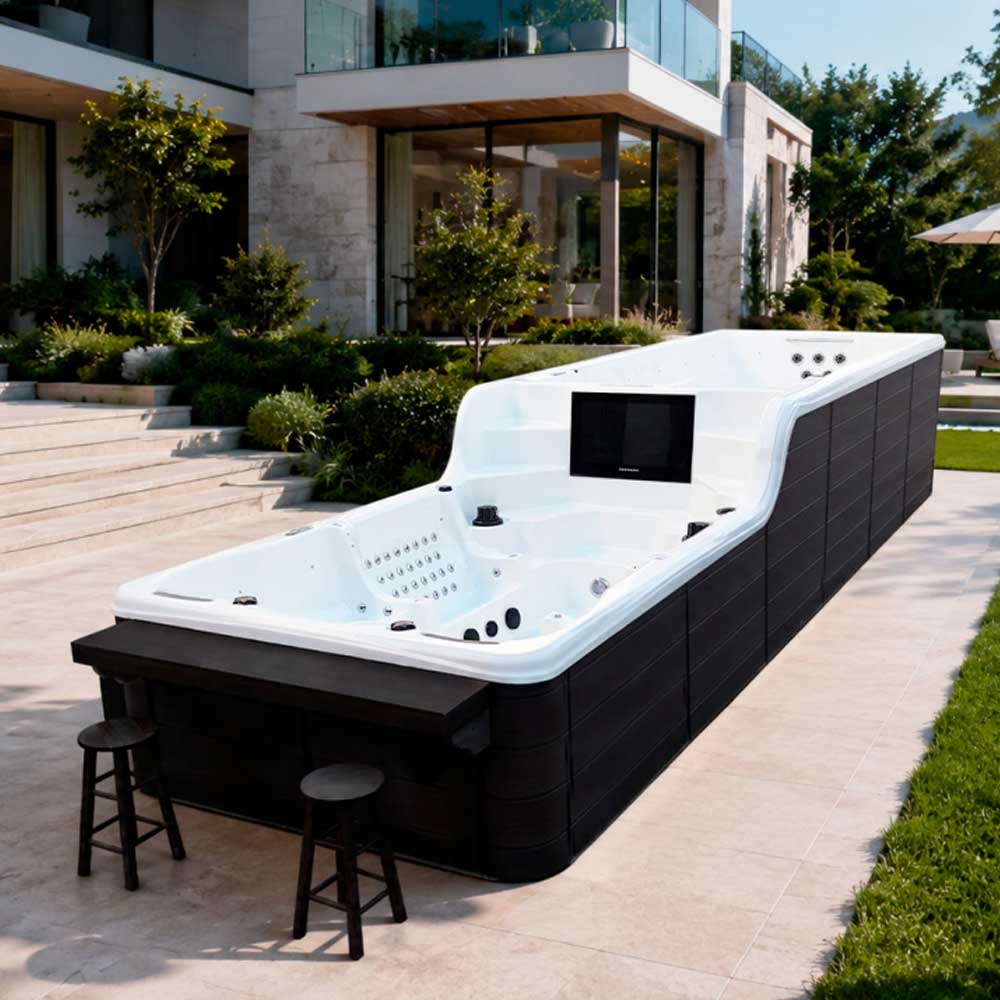

BG-6613 8.15m Dual Zone Swim Spa and Hot Tub
The BIGEER BG-6613 combines a dedicated swimming area and a separate hot tub area in an 8.15-metre unit. Its layout brings together a 4.15-metre swim zone, a 3.22-metre spa zone, three seats and two loungers, making space for both water exercise and relaxed soaking.
The specified configuration includes 92 nozzles, two Balboa control systems and two 3 kW heaters. An Aristech acrylic shell, galvanized steel support frame and ABS base complete the construction.
For buyers comparing large dual zone swim spas, the BG-6613 offers a clearly defined balance of swimming space and spa seating.
Request a Quote
Two Separate Zones for Swimming and Spa Relaxation
A 4.15m Swim Area with a Five-Hole Jet System
The swimming area measures 4,150 × 1,900 × 1,330 mm and holds 6,000 litres of water. Its five-hole swim jet system works with two 3 HP surf pumps to provide the current for swimming against the flow.
The swim area also has one 1 HP massage pump and one 1 HP circulation pump. These specifications help you compare the swimming, massage and circulation equipment separately when selecting a model.
The BG-6613 uses the specified jet-based swimming system and cannot accommodate an added swimming machine. If a dedicated swimming machine is a project requirement, ask BIGEER to identify a compatible model.
A 3.22m Hot Tub Area for Massage and Lounging
The separate hot tub area measures 3,220 × 1,900 × 840 mm and holds 3,000 litres. Two 3 HP massage pumps serve this zone, supported by a dedicated 0.5 HP circulation pump.
The overall seating configuration includes three seats and two loungers, offering upright and reclining positions. The divided layout lets swimming and spa relaxation occupy their own areas within the same unit.

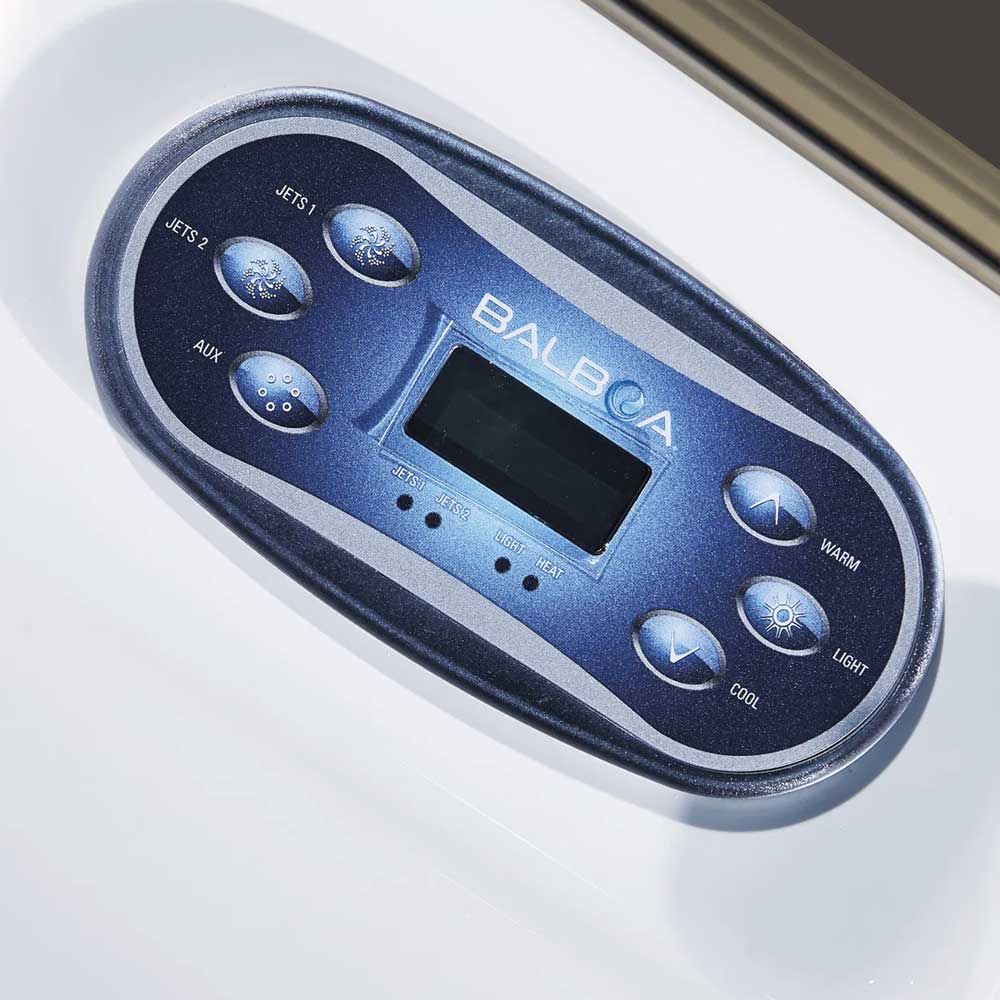

Balboa Controls, Heating and Pump Configuration
The BG-6613 is specified with two Balboa control systems and two 3 kW heaters. Its pump configuration is organized by zone, making the equipment package straightforward to review.
| Equipment | Swim area | Hot tub area |
| Swim current pumps | 2 × 3 HP surf pumps | — |
| Massage pumps | 1 × 1 HP | 2 × 3 HP |
| Circulation pump | 1 × 1 HP | 1 × 0.5 HP |
BG-6613 Dimensions and Technical Specifications
| Specification | BG-6613 |
| Product type | Dual zone swim spa and hot tub combo |
| Overall dimensions | 8,150 × 2,250 × 1,500 mm |
| Swim area dimensions | 4,150 × 1,900 × 1,330 mm |
| Hot tub area dimensions | 3,220 × 1,900 × 840 mm |
| Seating configuration | 3 seats and 2 loungers |
| Specified nozzle count | 92 |
| Swimming system | Five-hole swim jets |
| Swim area water capacity | 6,000 L |
| Hot tub area water capacity | 3,000 L |
| Seating configuration | 6 seats + 2 loungers + 1 standing position across the unit |
| Combined water capacity | 9,000 L |
| Net weight | 1,830 kg |
| Control systems | 2 × Balboa |
| Heaters | 2 × 3 kW |
| Handrail | 1 |
| Shell material | Aristech acrylic |
| Cabinet panels | PS WPC |
| Support frame | Hot-dip galvanized steel |
| Base | ABS |
| Total rated power | 18.6 kW |
| Listed electrical supply | 220–240 V / 50–60 Hz |
PHOTO JOURNAL

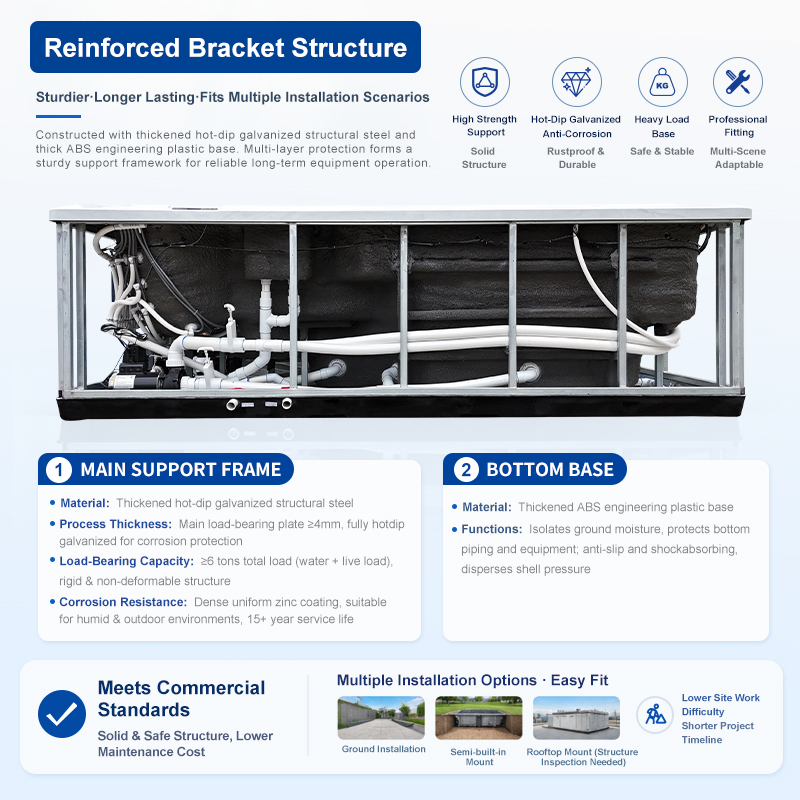

Aristech Acrylic Shell and Structural Materials
The BG-6613 combines an Aristech acrylic shell with shell insulation, PS WPC cabinet panels, a galvanized steel support frame and an ABS base.
The acrylic interior forms the swimming area, seats and loungers, while the surrounding cabinet provides the exterior finish. Ask for current shell and cabinet samples to coordinate the unit with your terrace, courtyard or garden design.
When requesting a quotation, include the water-care equipment, lighting and accessories you want itemized alongside the core specification.

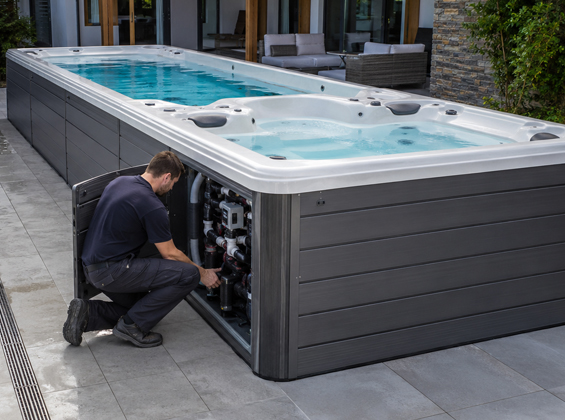

Space, Delivery and Equipment Access
Plan around the complete 8,150 × 2,250 × 1,500 mm unit, allowing additional space for entry, maintenance and access to equipment. Share your site layout and delivery route with BIGEER before finalizing the order.

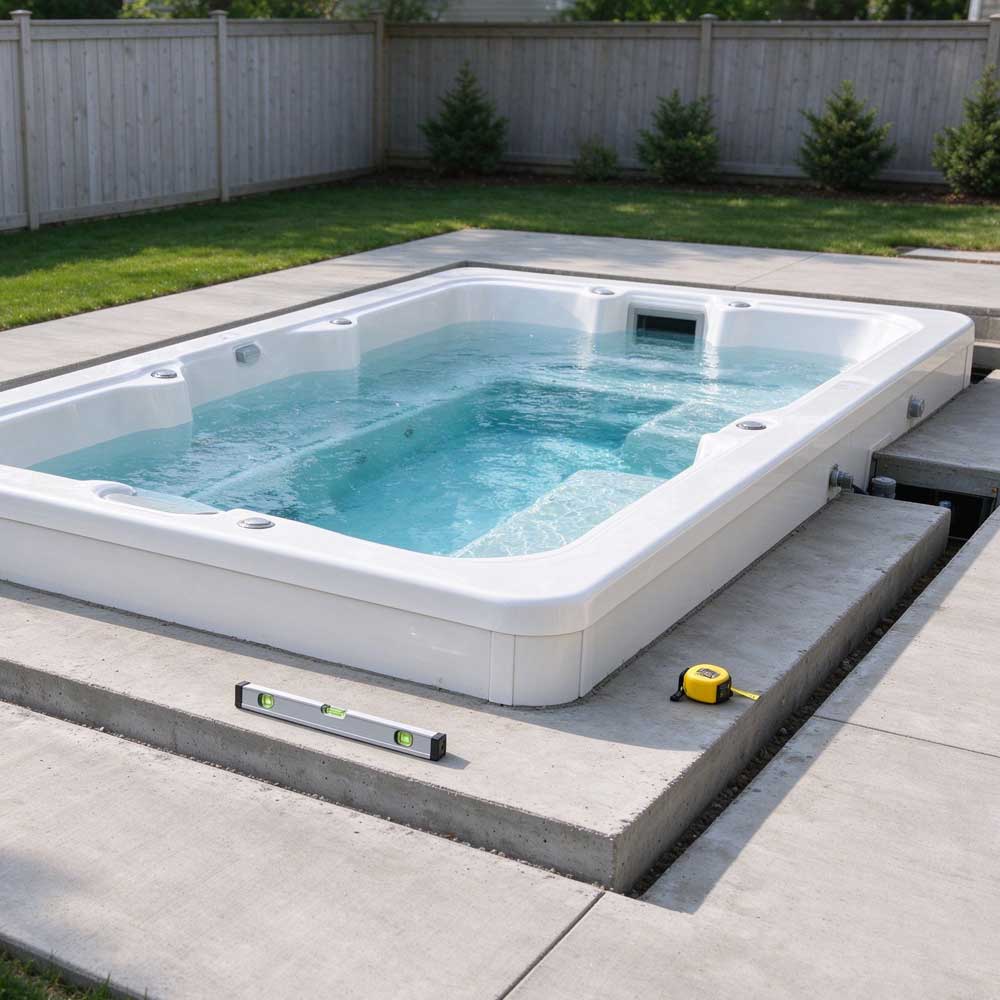

For a recessed installation or surrounding deck, coordinate drainage and service access before construction. Keep access panels reachable after the landscape work is complete.
Filled Weight and Electrical Planning
The specified filled weight is 10,830 kg. The supporting structure must account for this load together with occupants and the requirements of the proposed installation.
Use the final electrical schedule to confirm the supply arrangement, protective devices and connections with your installer. Request the installation drawing before completing the foundation or electrical work.
Ask BIGEER about:
Shell colors including Cloud Gray, Cloud Blue, Pearl White and White.
Gray or Coffee cabinet finishes and available panel styles.
Additional shell and pipe insulation.
Compatible Wi-Fi controls and Bluetooth audio.
Entry steps, UV water-care options and a suitable swim spa cover.
Request a Quote
-
Is the BG-6613 an 8.15m swimming lane?
The BG-6613 is 8.15 metres long overall. Within that unit, the swim area is 4.15 metres long and the separate hot tub area is 3.22 metres long. These internal dimensions are the useful measurements when comparing space for swimming and soaking.
-
How many seats and loungers does the BG-6613 have?
The specified seating layout contains three seats and two loungers across the unit. Use the layout drawing to review their positions and choose the configuration that suits your intended use.
-
Can a swimming machine be added to the BG-6613?
No. The BG-6613 specification states that a swimming machine cannot be added. This model uses a five-hole swim jet system with two 3 HP surf pumps.
-
How much water does the BG-6613 hold?
The swim area holds 6,000 litres and the hot tub area holds 3,000 litres, giving a combined specified capacity of 9,000 litres.
-
Which control and heating systems are specified?
The BG-6613 is specified with two Balboa control systems and two 3 kW heaters. Request the controller details and operating settings for your quoted configuration.
-
How do I get a BG-6613 price and delivery quotation?
Send BIGEER your destination, order quantity, intended installation and preferred finish. Include any required accessories so the quotation can identify the equipment package, shipping scope and lead time.
Request a BG-6613 Quote from BIGEER
Bring your swimming and spa plans together with the BIGEER BG-6613. Its 8.15-metre dual zone layout combines a dedicated swim area with a separate massage and lounging area.
Contact BIGEER for a quotation covering your residential project, distributor order or project supply enquiry. Request the configuration sheet, layout drawing, available finishes, warranty terms and delivery details for your order.
