Bigeer
-
BG-6613
-
8000×2400×1600 mm (26.25×7.87×5.25 ft)
-
4500×2060×1450 mm (14.76×6.76×4.76 ft)/1960×2060×930 mm (6.43×6.76×3.05 ft)
-
11000 L /2905.89 gal (Swim Spa Area) 2500 L /660.43 gal (Hot Tub Area)
-
1970 KGS
-
4 seats 1 loungers
-
4 short filter cartridges, 1 set Ozone, 400 sand filter
-
2 × 3 kW Heater
-
2 × Balboa Control System
-
PS WPC
-
Aristech Acrylic Shell
-
Underwater Lighting 2 pc
-
18KW
-
1 unit
-
30 days

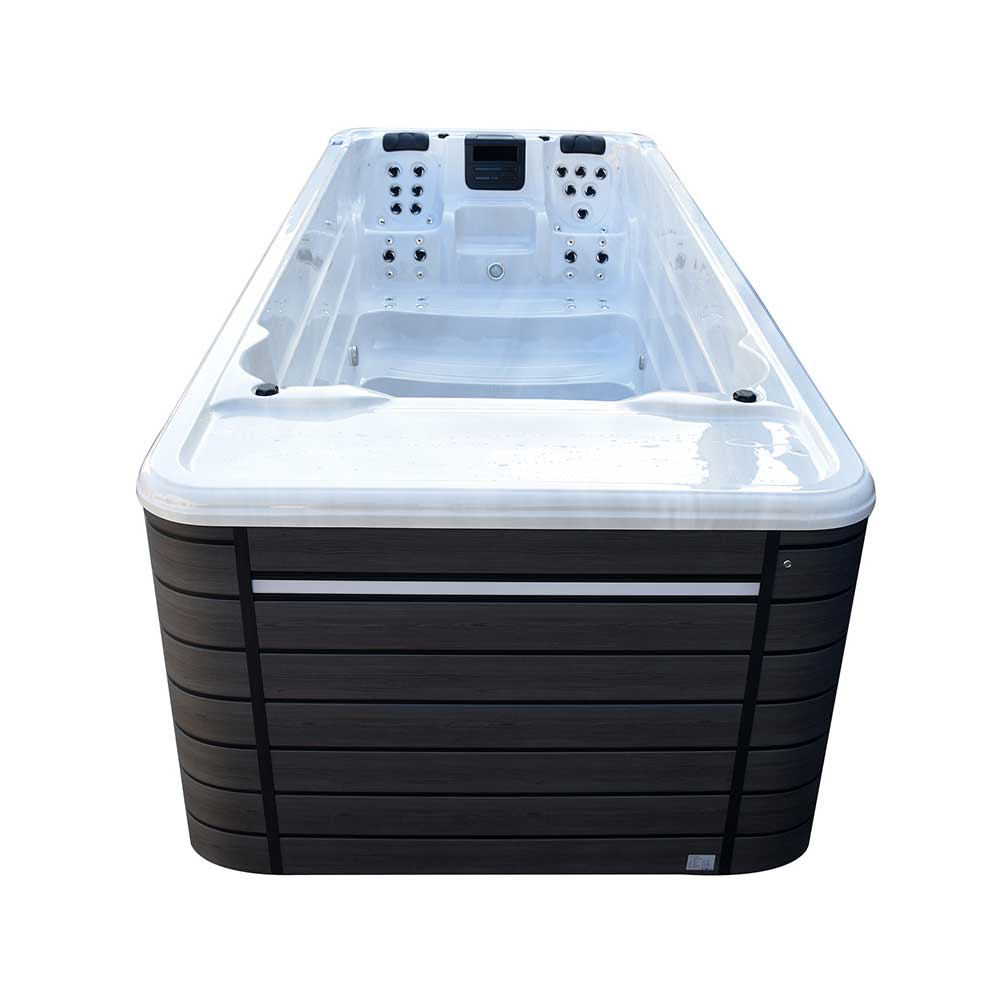

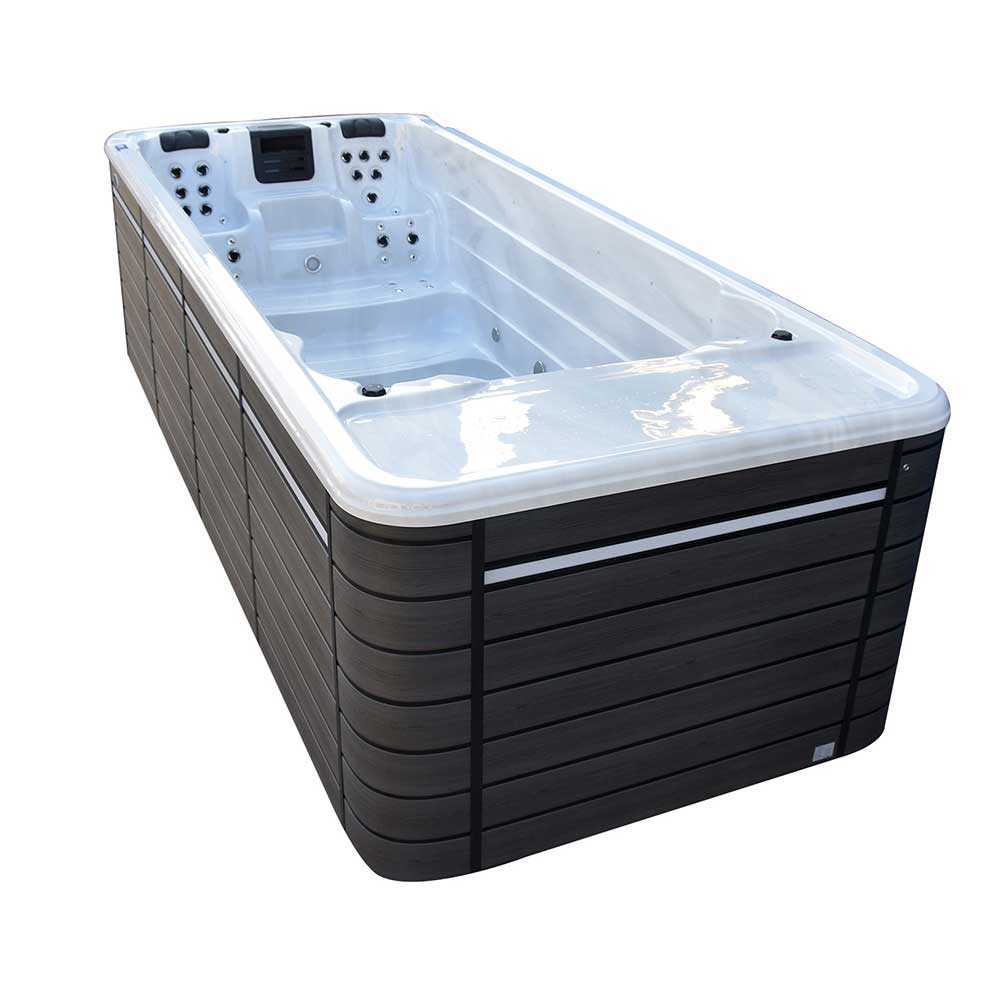

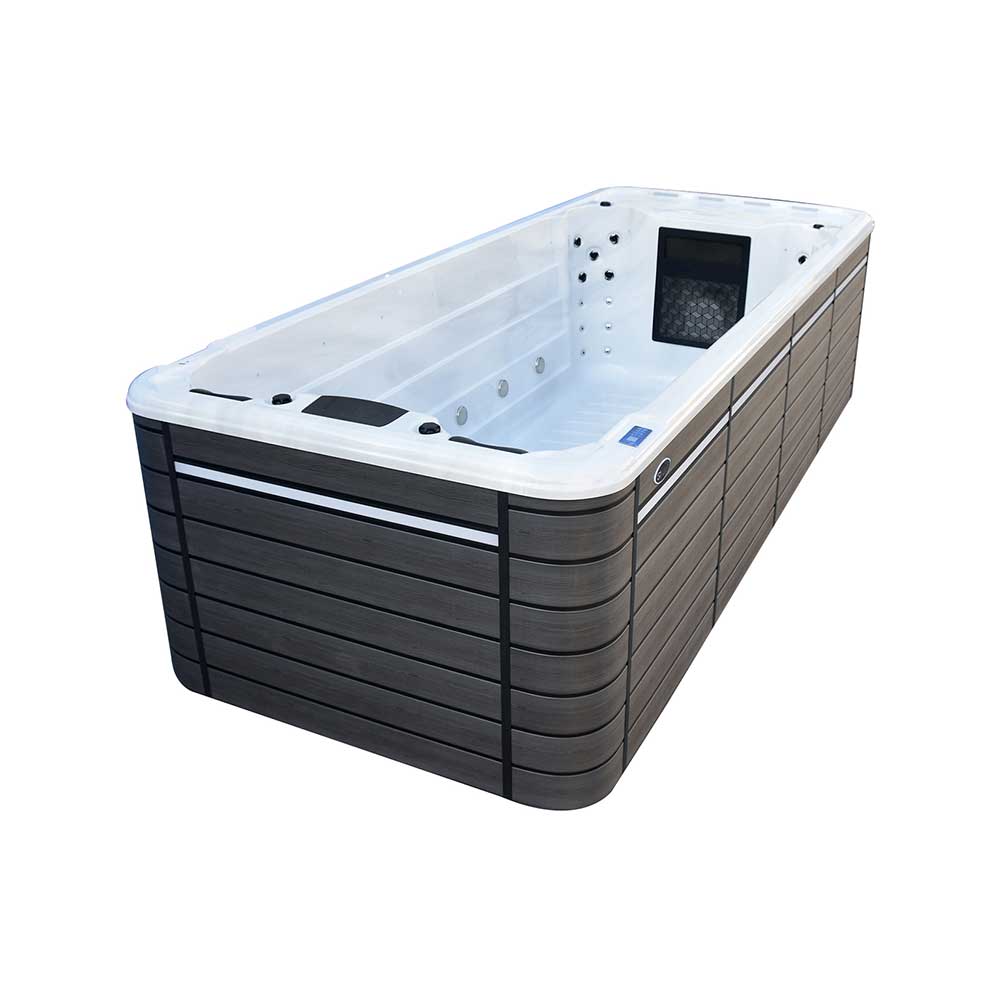

BG-6611 8m Dual Zone Swim Spa and Hot Tub Combo
The BIGEER BG-6611 is an 8-meter dual zone swim spa combining a 4.5-meter swimming area with a separate 2,500-liter hot tub. Four seats and one standing position are arranged across the complete unit, with 71 specified nozzles for its swim and spa configuration.
Two Balboa control systems and two 3 kW heaters support separate management of the swimming and hot tub zones. The equipment package also includes sand filtration, dedicated circulation pumps and a five-outlet swim jet system, with an optional swimming machine available.
For a home or villa project, the BG-6611 brings current swimming, water exercise and hot tub relaxation into one pool-and-spa layout.
Request a Quote
A 4.5m Swim Area and Separate 2,500-Liter Hot Tub
Dedicated Space for Swimming and Water Exercise
The internal swimming area measures 4,500 × 2,060 × 1,450 mm and holds 11,000 liters. Counter-current outlets create water resistance for swimming in place, while the open central area provides space for water exercise.
When comparing 8m swim spas, consider the internal swim area as well as the overall length. The BG-6611 allocates 4.5 meters to its swimming area within the complete 8-meter structure.

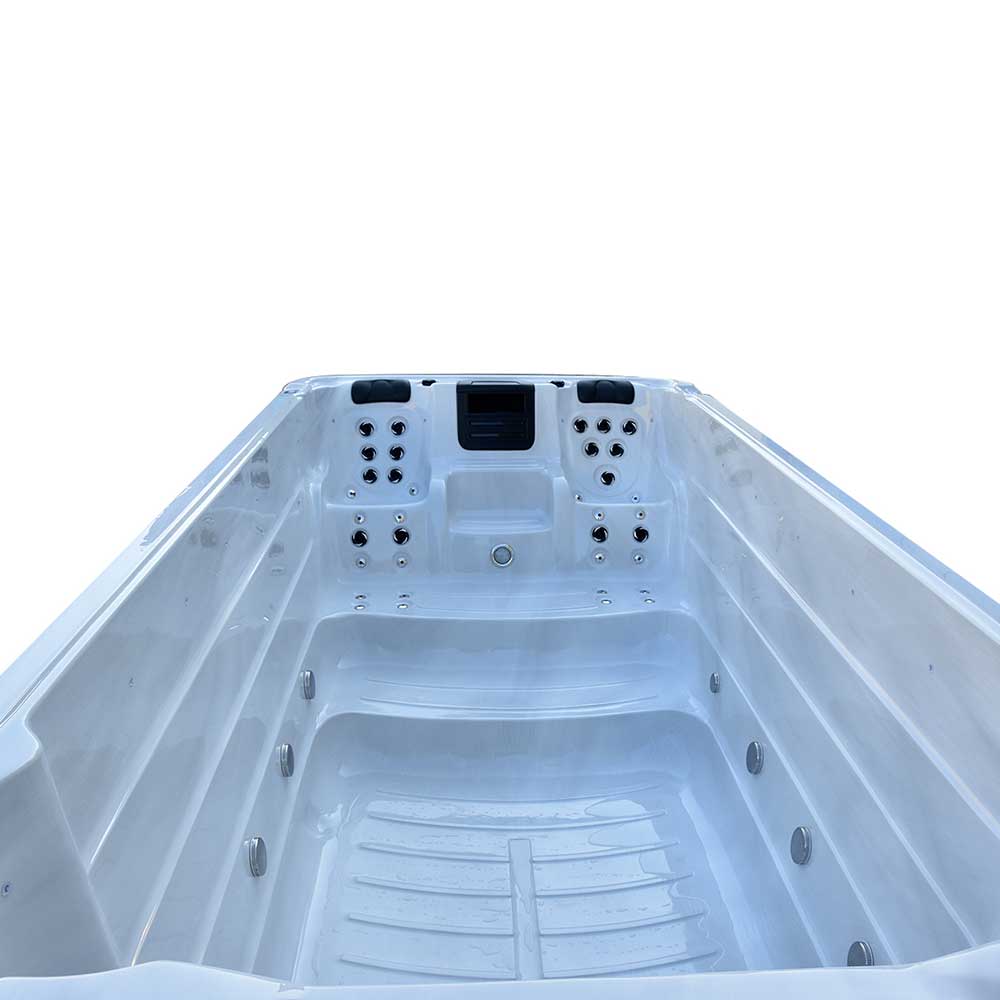

Four Seats and One Standing Position
The separate hot tub area measures 1,960 × 2,060 × 930 mm and holds 2,500 liters. It provides a dedicated setting for soaking and water massage alongside the swimming area.

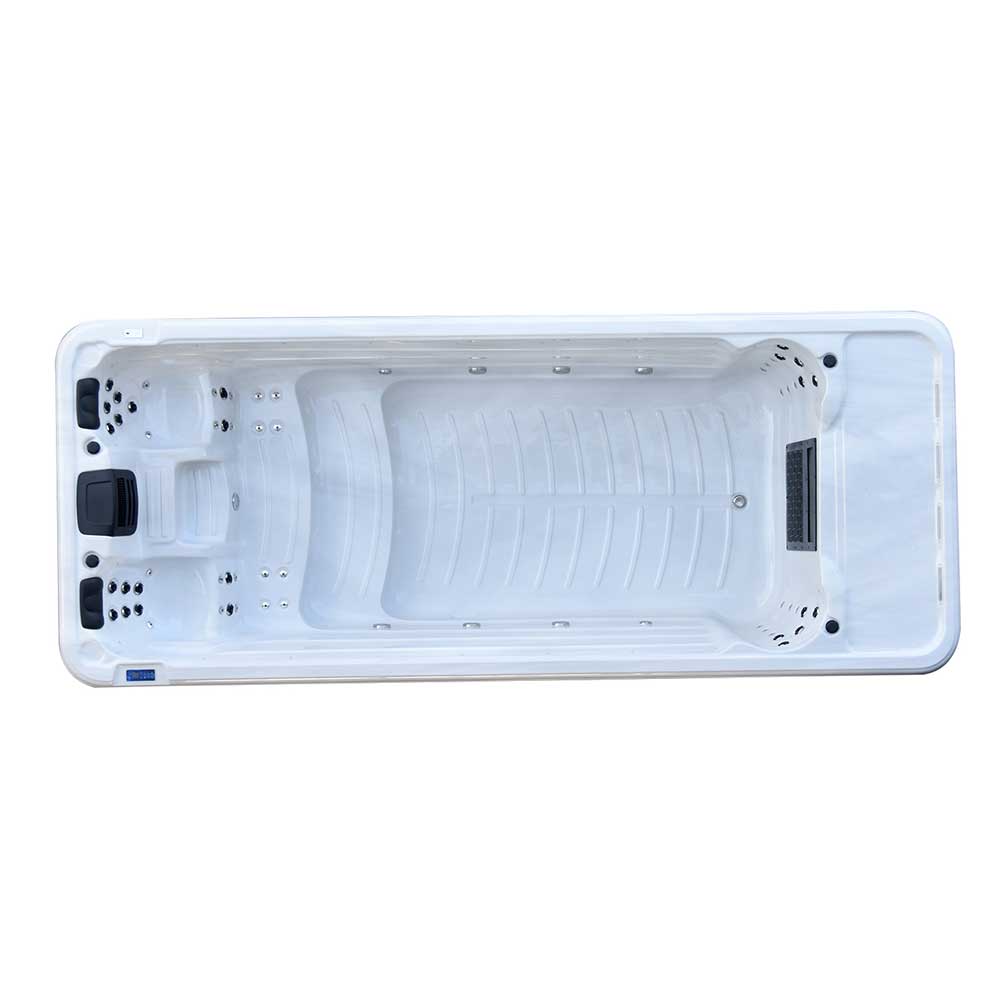

The complete BG-6611 layout includes four seats and one standing position. Review the plan view to see how these positions are distributed and how the layout suits your swimming and relaxation routine.

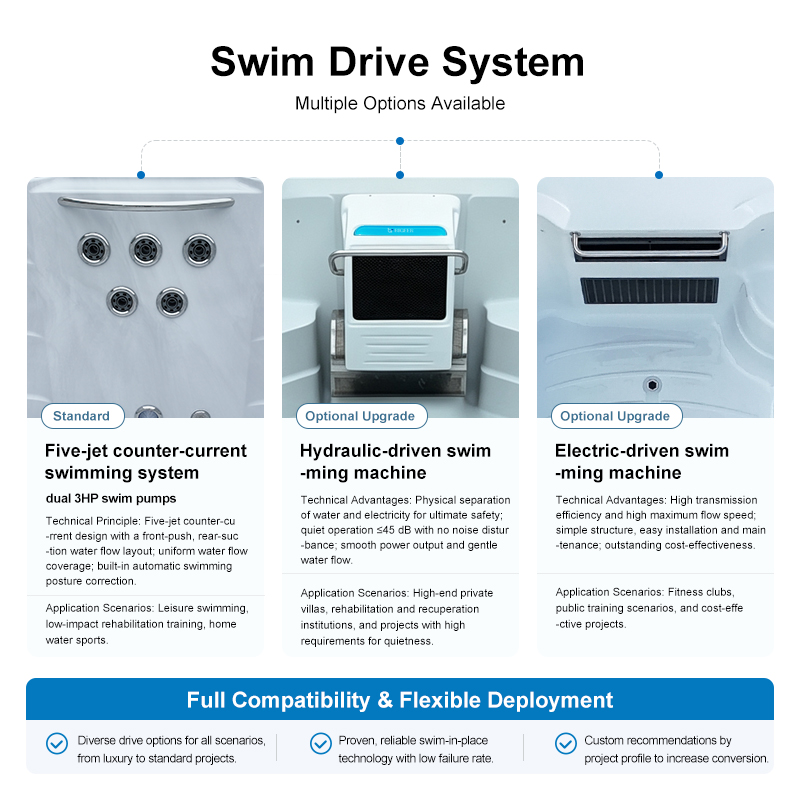

Five-Outlet Swim Jets with an Optional Swimming Machine
Jet-Based Swimming Configuration
The specified swim-current system uses five outlets powered by two 3 HP swim-current pumps. The swimming area also includes a 2 HP massage pump.
This arrangement combines current swimming and water massage within the swim zone. Evaluate the available swimming space and current performance together when choosing a configuration for your intended use.
Optional Swimming Machine
The BG-6611 can accommodate an added swimming machine. Specify this option when requesting your quotation so the proposed current system, controls and electrical requirements can be reviewed together.
Ask for the selected machine's performance details and a complete equipment list. The technical specifications below describe the listed jet-based configuration; a swimming machine is an optional addition.
Separate Controls for the Two Water Zones
Two Balboa control systems and two 3 kW heaters allow the swimming and hot tub zones to be managed separately. Set each water environment to suit its purpose, from swimming sessions to warmer soaking.
The hot tub has two 2 HP massage pumps and its own 0.5 HP circulation pump.
Sand Filtration with a Dedicated Pump
The BG-6611 includes a sand filter supported by a dedicated 1 HP sand filter circulation pump. The swimming area also has a separate 1 HP circulation pump.
This distinction matters when reviewing the equipment package: the swim-zone circulation pump and the sand filter pump are separate items. Plan service access for both, together with the filter and its maintenance connections.
Aristech Acrylic Construction and Four Waterfalls
An Aristech acrylic shell forms the swimming area and spa seating. The surrounding construction includes shell insulation, PS WPC cabinet panels, an ABS base and a galvanized steel support frame.

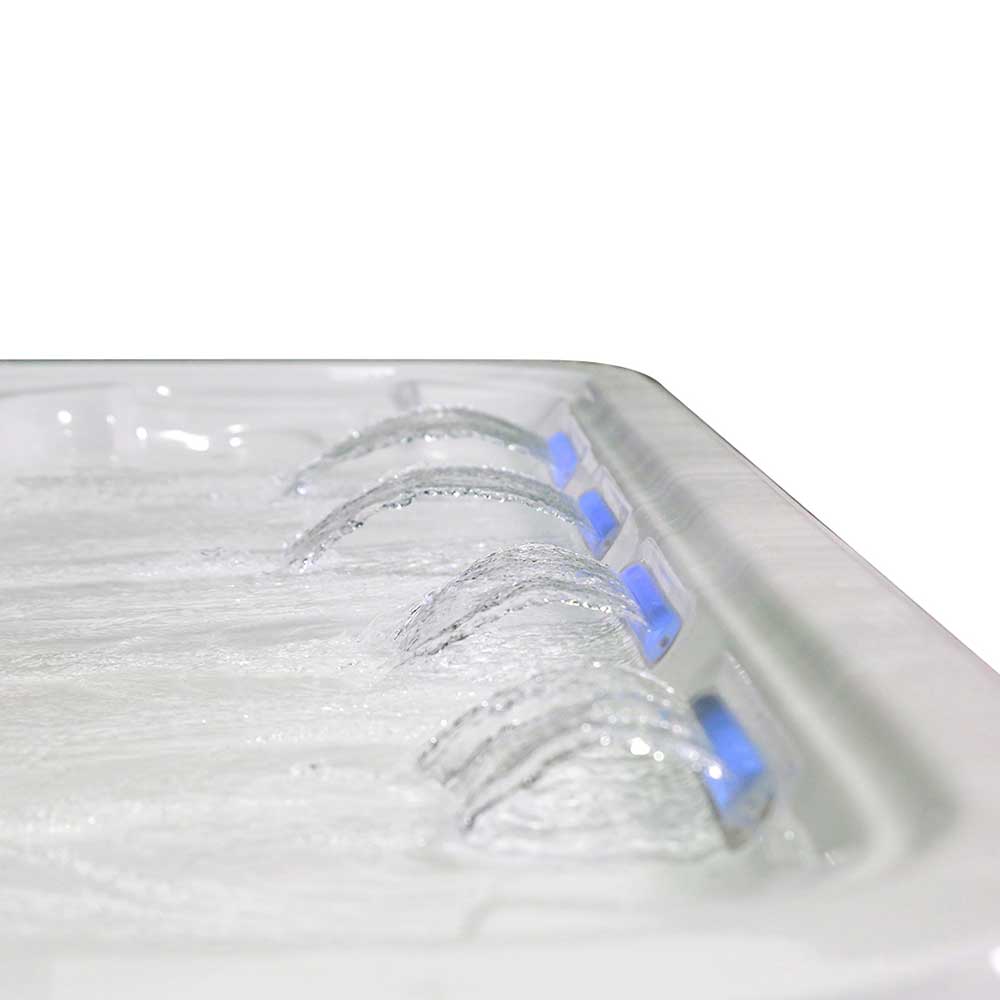

Four waterfalls add moving-water features to the setting, while two sunbed pillows are included in the listed configuration. One handrail is also specified.
Coordinate the shell and cabinet finish with your landscaping or terrace design. For the complete outdoor setup, ask about a compatible cover, entry steps and any additional insulation required for your climate.
BG-6611 Dimensions and Technical Specifications
| Specification | BG-6611 |
| Product type | Dual zone swim spa and hot tub combo |
| Series | BIGEER Swim Spa Classic Series |
| Overall dimensions | 8,000 × 2,400 × 1,600 mm |
| Overall dimensions in feet | Approximately 26.25 × 7.87 × 5.25 ft |
| Internal swim area dimensions | 4,500 × 2,060 × 1,450 mm |
| Internal hot tub dimensions | 1,960 × 2,060 × 930 mm |
| Swim area water capacity | 11,000 L |
| Hot tub water capacity | 2,500 L |
| Combined water capacity | 13,500 L |
| Seating layout | 4 seats + 1 standing position across the complete unit |
| Specified nozzle count | 71 |
| Swimming system | Five-outlet swim jets |
| Swimming machine | Optional addition |
| Control systems | 2 × Balboa |
| Heaters | 2 × 3 kW |
| Sand filter | 400 sand filter |
| Waterfalls | 4 |
| Sunbed pillows | 2 |
| Shell material | Aristech acrylic |
| Cabinet material | PS WPC |
| Insulation | Shell insulation |
| Support frame | Hot-galvanized steel |
| Base | ABS |
| Handrail | 1 |
| Net weight | 1,970 kg |
| Listed filled weight | 15,470 kg |
| Total rated power | 18 kW |
| Listed electrical supply | 220–240 V / 50–60 Hz |
| Pump function | Swimming area | Hot tub area |
| Swim current | 2 × 3 HP | — |
| Massage | 1 × 2 HP | 2 × 2 HP |
| Circulation | 1 × 1 HP | 1 × 0.5 HP |
| Sand filter circulation | 1 × 1 HP | — |
Installation Planning for an 8m Swim Spa
No experience required. The agent will guide you in every step.
Ask BIGEER about:
Shell colors including Cloud Gray, Cloud Blue, Pearl White and White.
Gray or Coffee cabinet finishes and available panel styles.
Additional shell and pipe insulation.
Compatible Wi-Fi controls and Bluetooth audio.
Entry steps, UV water-care options and a suitable swim spa cover.
Request a Quote
-
Is the BG-6611 swimming area 8 meters long?
The complete unit is 8 meters long. Its internal swimming area is 4.5 meters long and 2.06 meters wide, with a separate hot tub area measuring 1.96 × 2.06 meters internally.
-
How many seats does the BG-6611 have?
The listed layout has four seats and one standing position across the complete spa. The two sunbed pillows are listed separately from the seating configuration.
-
Can the swimming and hot tub zones use different temperatures?
Yes. Two Balboa control systems and two 3 kW heaters support separate temperature management for the two zones.
-
Is a swimming machine included?
The listed configuration uses five-outlet swim jets. A swimming machine can be added as an option and should be specified in your order.
-
Does the BG-6611 include sand filtration?
Yes. The specification includes a 400 sand filter and a dedicated 1 HP sand filter circulation pump, in addition to the swim area's separate 1 HP circulation pump.
-
How much electricity does the BG-6611 use?
Its total rated power is 18 kW. Actual energy use depends on pump and heater operating times, water temperatures, weather, insulation and cover use. A running-cost estimate also requires your local electricity tariff.
-
How much does the BG-6611 cost?
Request an itemized quotation based on your selected swim-current system, finishes, accessories, quantity and delivery destination. Identify any swimming machine upgrade so its equipment and delivery requirements are included.
Request a BG-6611 Quote for Your Home or Project
Plan your swimming and spa space around the BIGEER BG-6611's 4.5-meter swim area, separate hot tub and optional swimming machine configuration.
Send your delivery country, intended use, installation dimensions and order quantity. Include your preferred finishes, current system and accessory requirements.
