Bigeer
-
BG-6659
-
5900×2260×1500 mm
-
4040×1920×1350 mm
-
8000 L（pool Area） 1500 L（SPA Area）
-
1,600 kg
-
four Seats
-
6 pcs filter cartridges, 1 set sand filter tank, Ozone / UV sterilizer (optional)
-
2 × 3 kW Heater
-
Balboa Control System
-
Imported Aristech Acrylic Shell
-
20 kW
-
1 unit

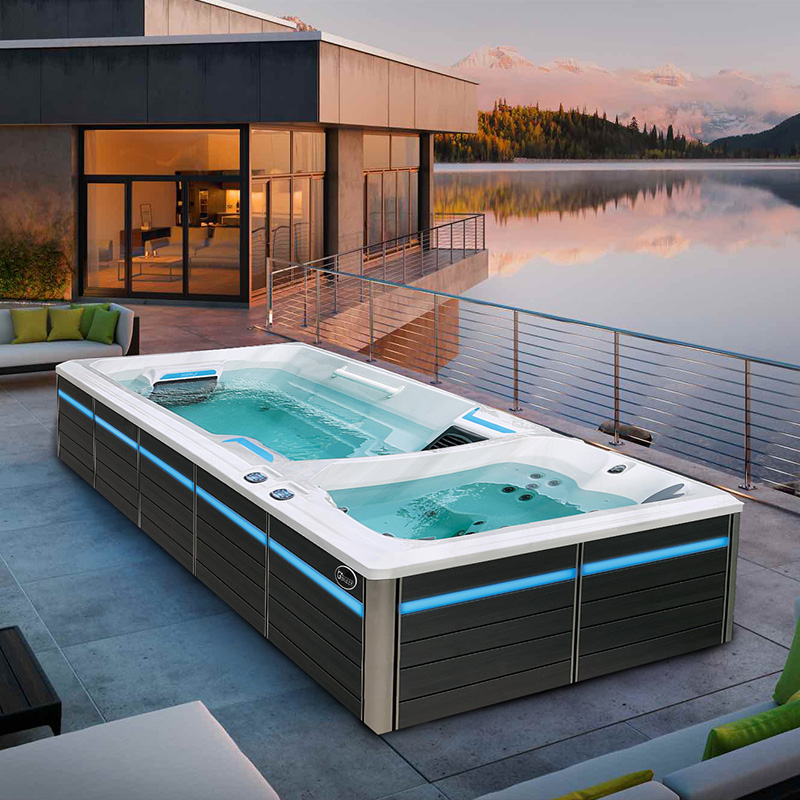

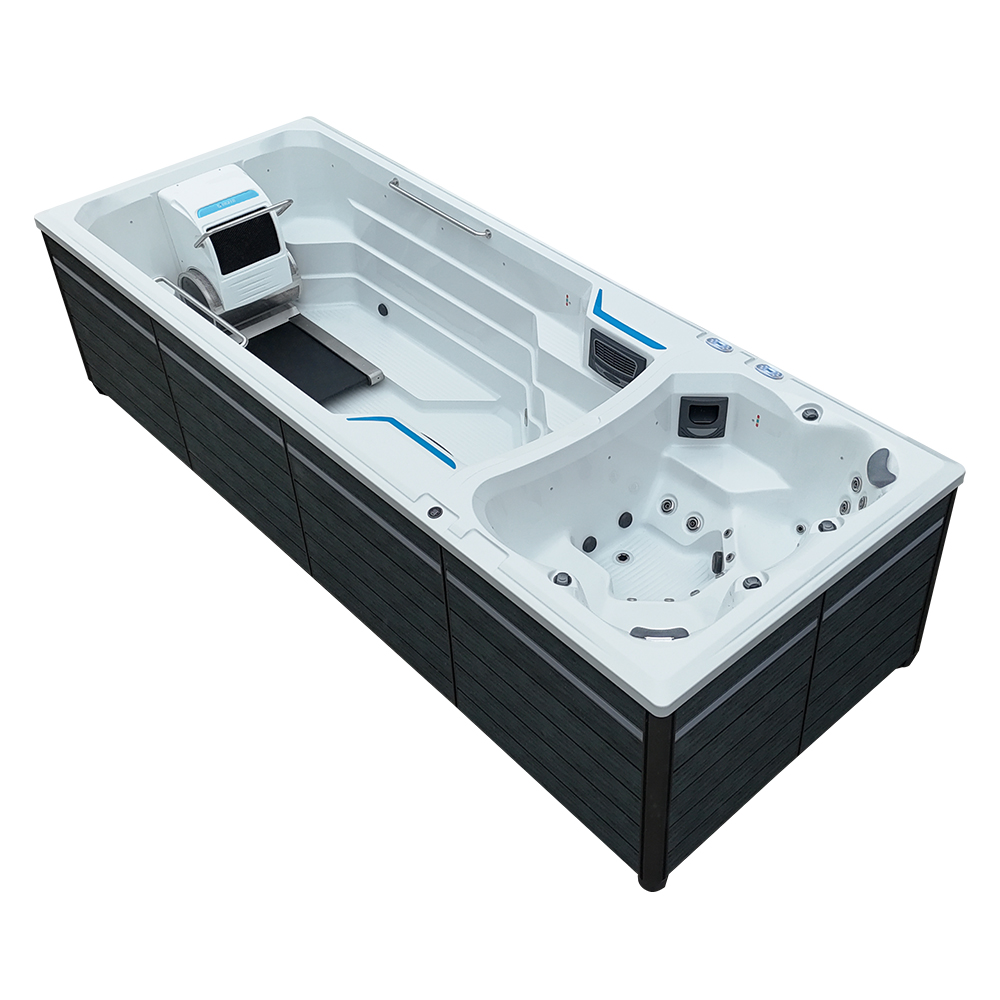

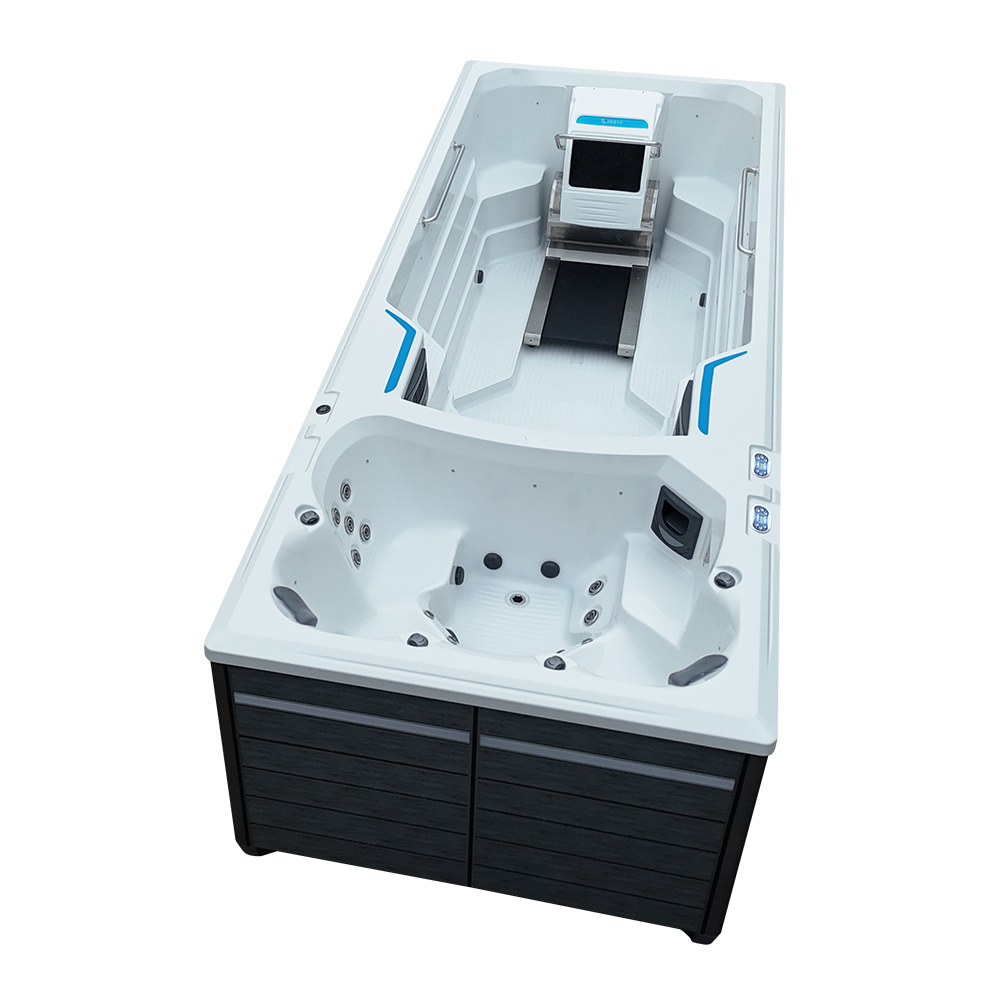

BG-6659 20' Dual-Temperature Swim Spa Overview
The BG-6659 is a 5.9-meter dual-temperature swim spa designed for swimming, aquatic exercise, hydromassage and relaxation in one integrated unit. Its two physically separated water zones include an 8,000-liter swim area and a 1,500-liter spa area with four massage positions.
A 7.5 kW variable-speed swim machine generates an adjustable counter-current for swim-in-place training, while 35 imported massage jets provide targeted hydrotherapy. Two control systems and two 3 kW heaters allow the swim and spa zones to operate at different temperatures at the same time.
Key BG-6659 features include:
True dual-zone and dual-temperature design
5,900 × 2,250 × 1,500 mm overall dimensions
8,000 L dedicated swim zone
1,500 L dedicated hydrotherapy zone
35 imported massage jets
Two 3 kW heaters
Six paper filter elements
Imported Aristech acrylic shell
Hot-dip galvanized support frame
Reinforced ABS base
LED underwater and waterline lighting
Bluetooth audio system
20 kW total rated power
220 V or 380 V electrical configuration
What Is the BG-6659 Dual-Temperature Swim Spa?
The BG-6659 is a 20-foot-class dual-zone swim spa that combines a counter-current swimming pool with a separate heated massage spa.
Unlike a conventional single-zone swim spa, the BG-6659 uses two divided water areas. This allows users to keep the larger swimming zone at a comfortable exercise temperature while maintaining warmer water in the spa zone for post-workout relaxation.
Because the two zones can be controlled separately, one person can swim while other users enjoy the hydrotherapy area. There is no need to drain the spa or wait for the entire body of water to change temperature between activities.
The BG-6659 is suitable for residential gardens, villas, wellness facilities, hotels, resorts, fitness clubs and distributors seeking a full-size dual-temperature swim spa.
Request a Quote

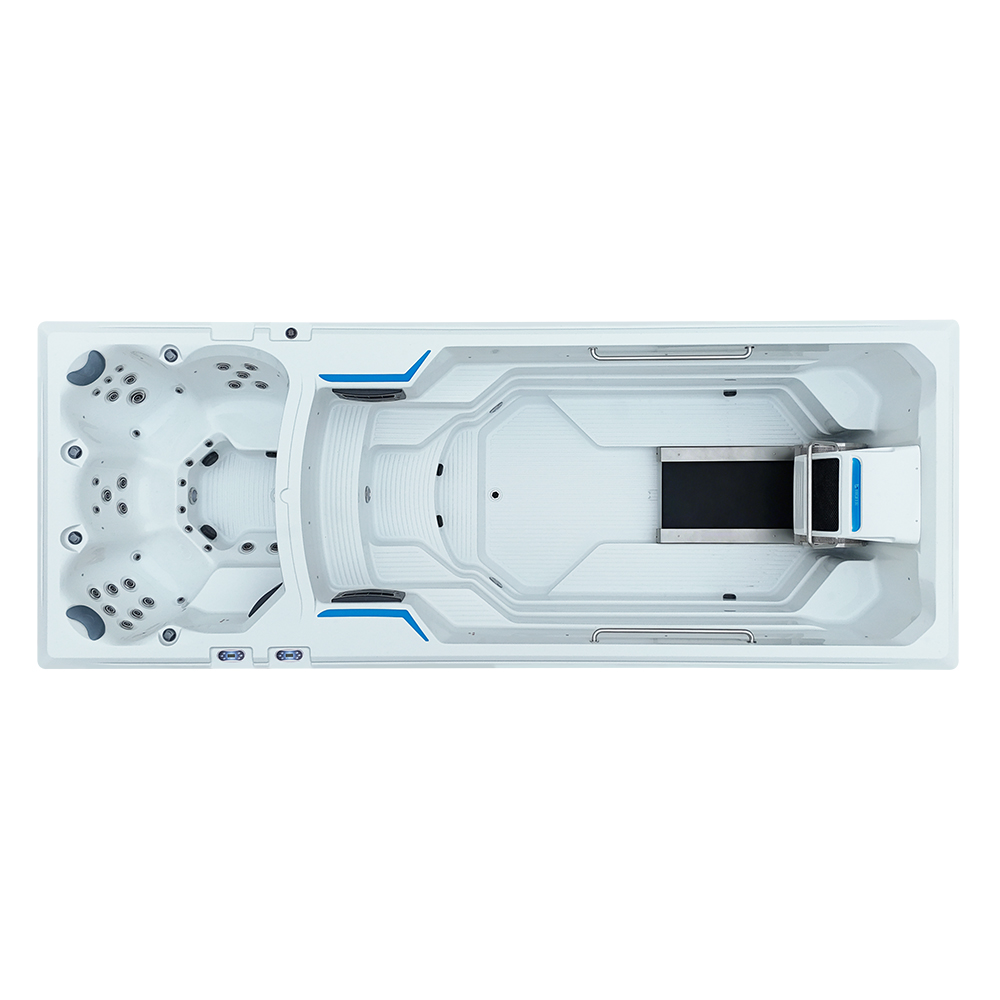

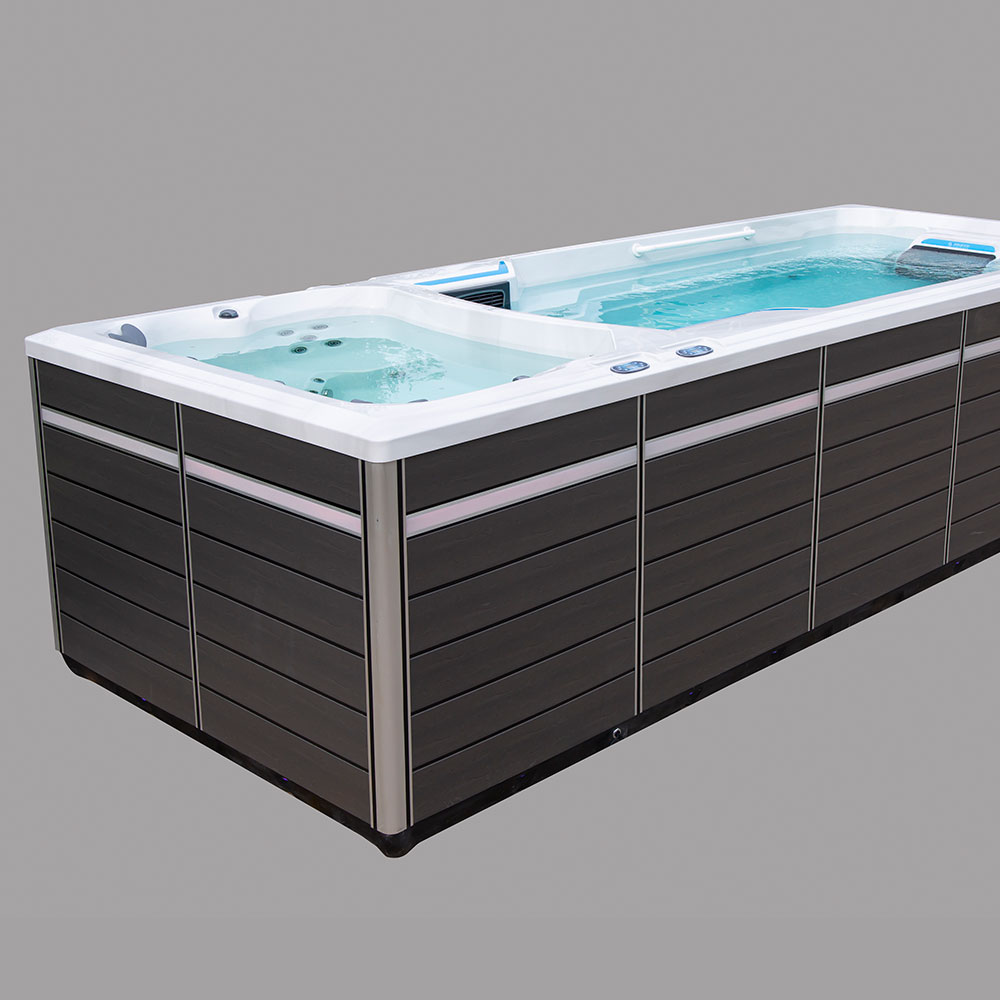

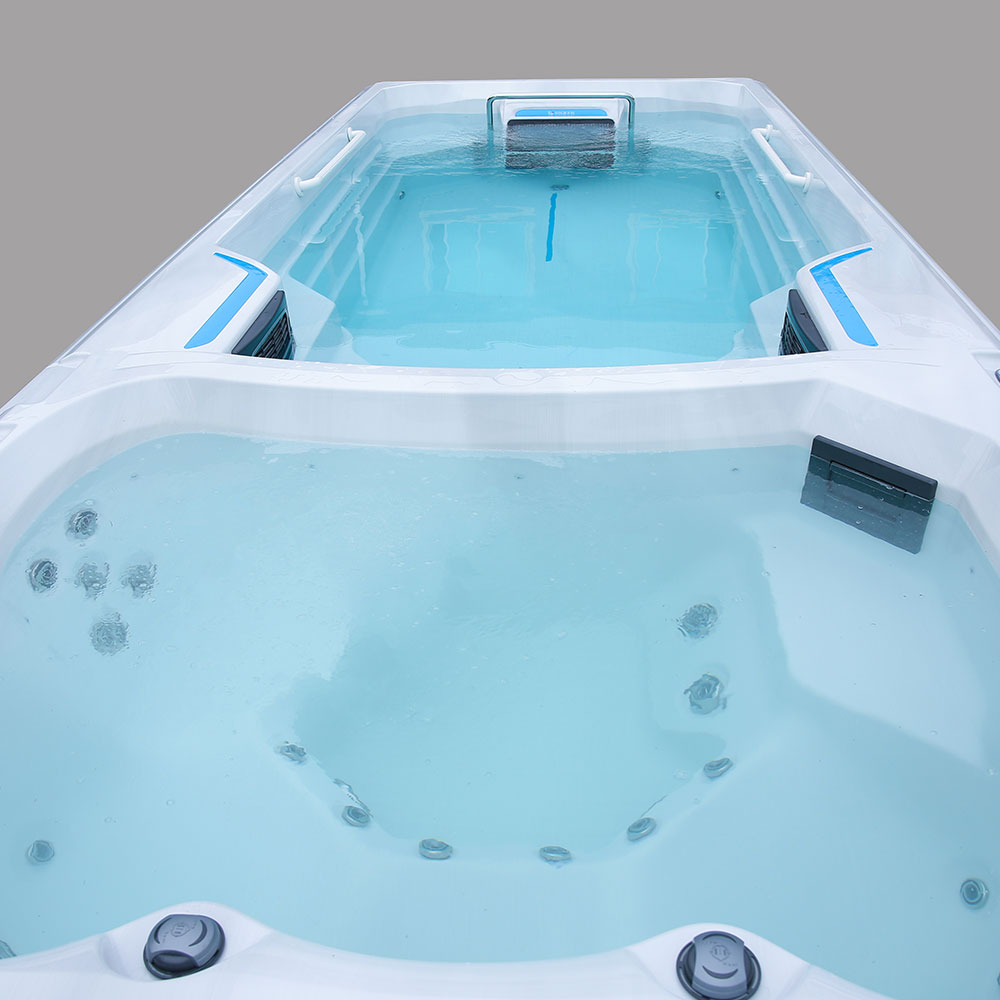

How Does the Independent Dual-Zone Design Work?
The BG-6659 divides its 5.9-meter structure into two purpose-built areas, each optimized for a different activity.

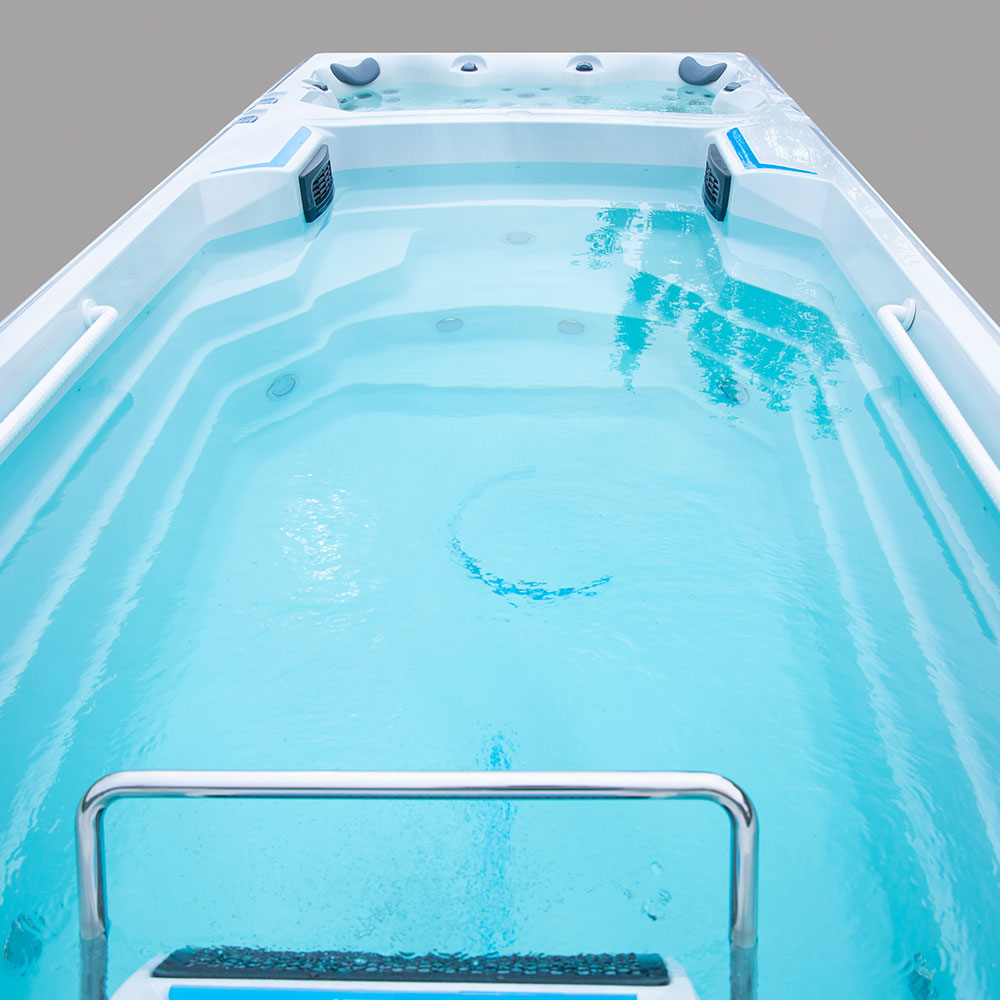

8,000 L Dedicated Swim Zone
The main swimming area measures
4,040 × 1,920 × 1,350 mm, or approximately
13.25 × 6.30 × 4.43 ft.
This open exercise area provides room for:
Counter-current swimming
Low-impact aquatic exercise
Resistance training
Walking and mobility exercises
General family recreation
Warm-up and post-training movement
Its 8,000-liter nominal water capacity helps create a substantial swimming environment without requiring the space, construction time or maintenance demands of a conventional in-ground pool.
View More >>
1,500 L Hydrotherapy Spa Zone
The separate spa area measures
1,470 × 1,920 × 860 mm, or approximately
4.82 × 6.30 × 2.82 ft.
It includes four massage positions and a total of
35 imported hydrotherapy jets. The compact spa compartment is designed for seated relaxation, social use and recovery after swimming or exercise.
Because the spa area is separated from the swimming area, it can be heated to a different temperature without warming all 9,500 liters of water to the same setting.
View More >>

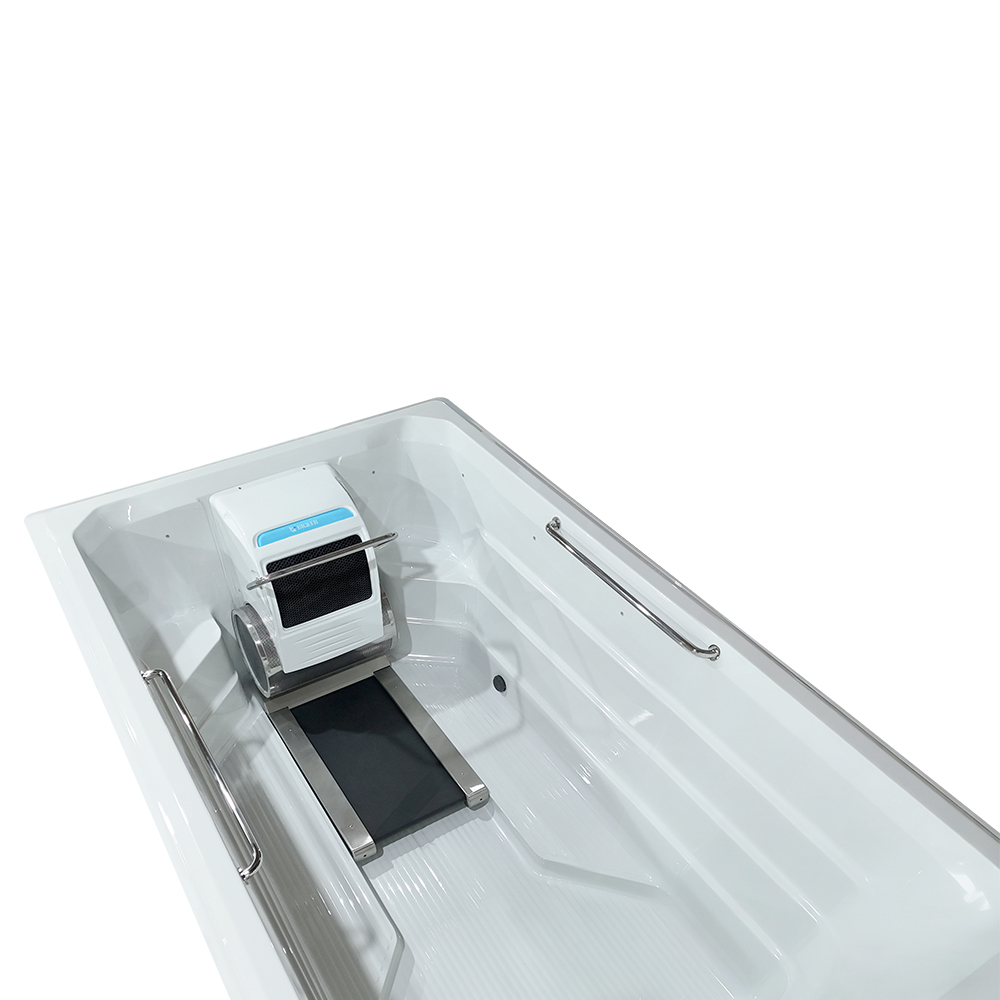

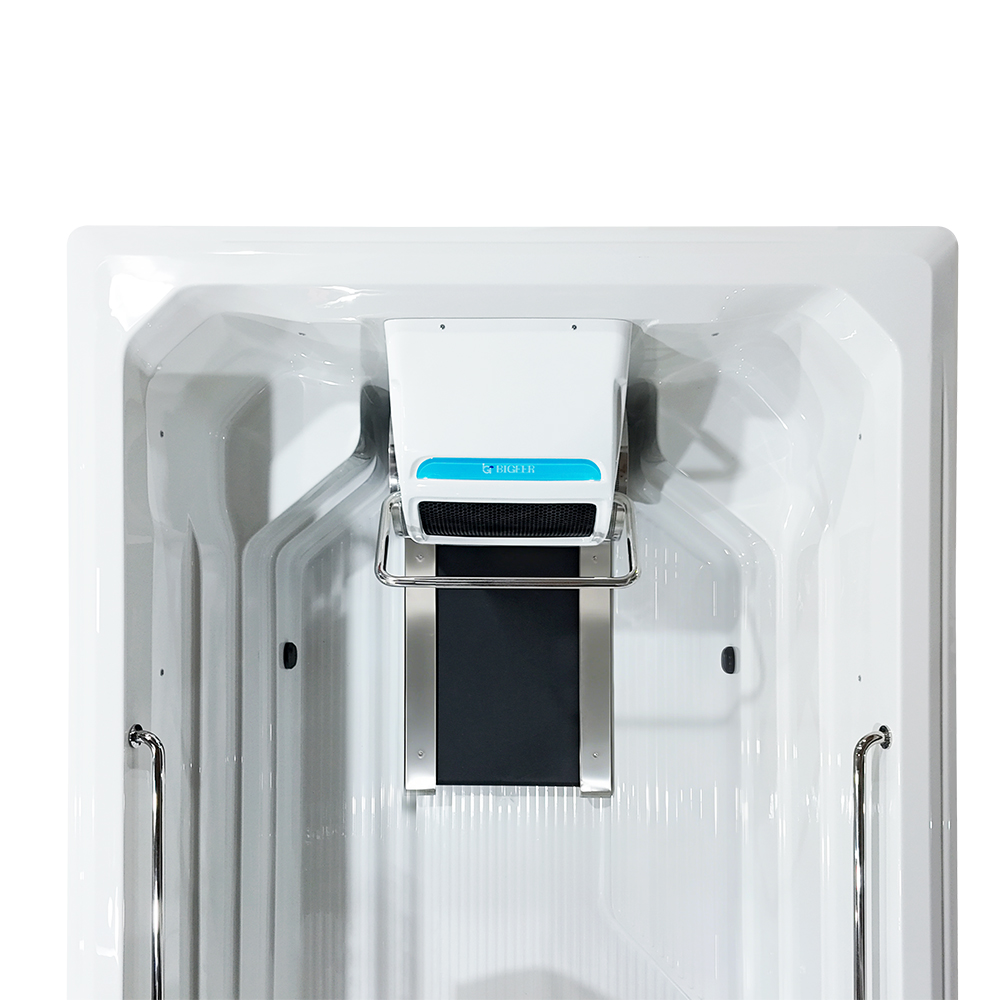

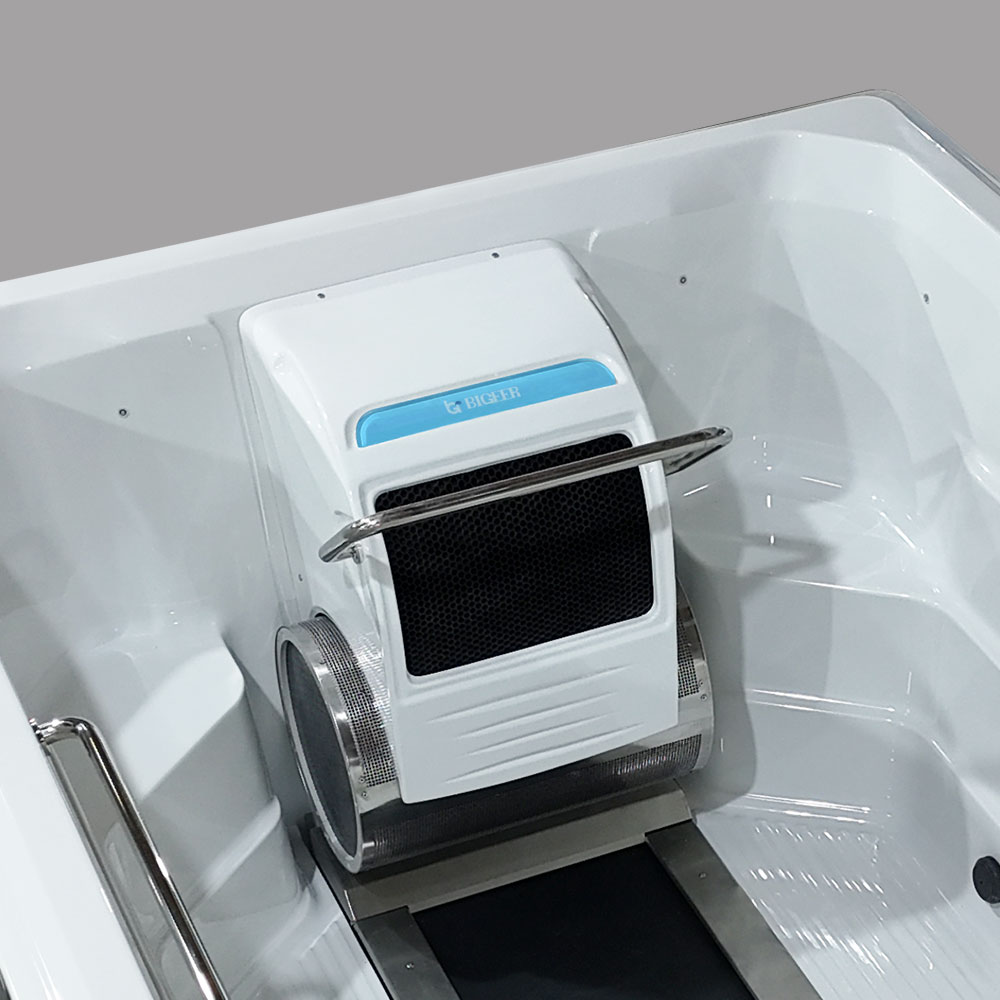

7.5 kW Variable-Speed Counter-Current Swim System
The BG-6659 uses a 7.5 kW integrated variable-speed swim machine to create a continuous counter-current in the swimming zone.
Users swim against the current while remaining in approximately the same position. The adjustable output allows the water flow to be adapted for different users and activities, from relaxed aquatic movement to more demanding fitness sessions.
The variable-speed system is suitable for:
Beginner swim practice
General fitness swimming
Endurance workouts
Resistance-based aquatic exercise
Low-impact cardiovascular activity
Family recreation
Actual current performance may vary according to the selected settings, water level, installation and final equipment configuration.
View More >>

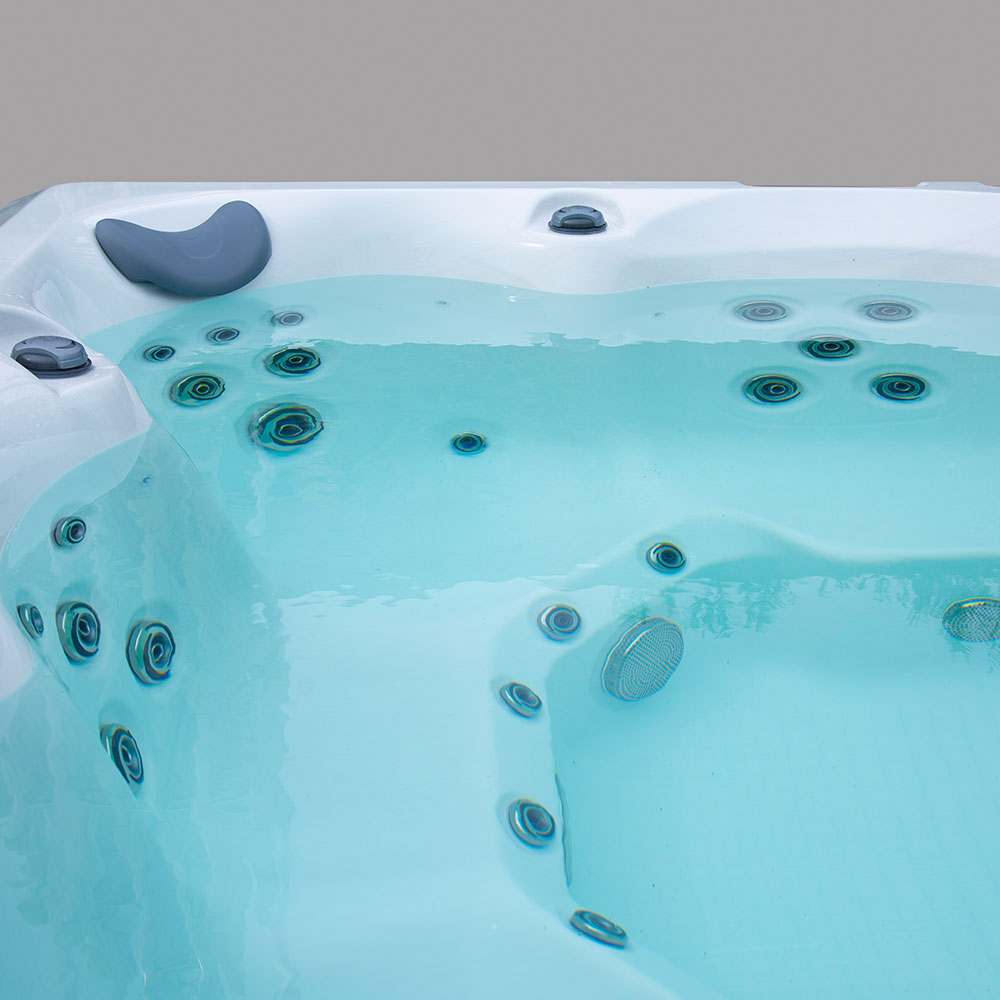

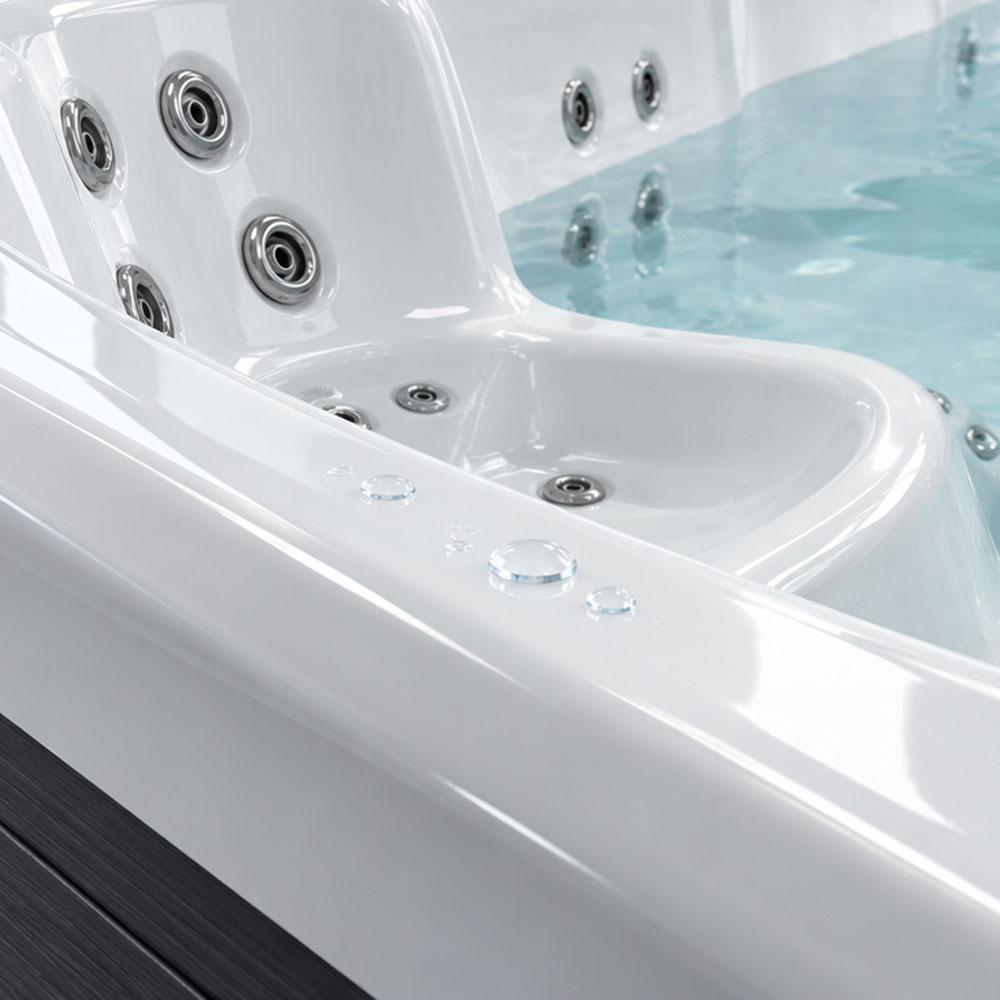

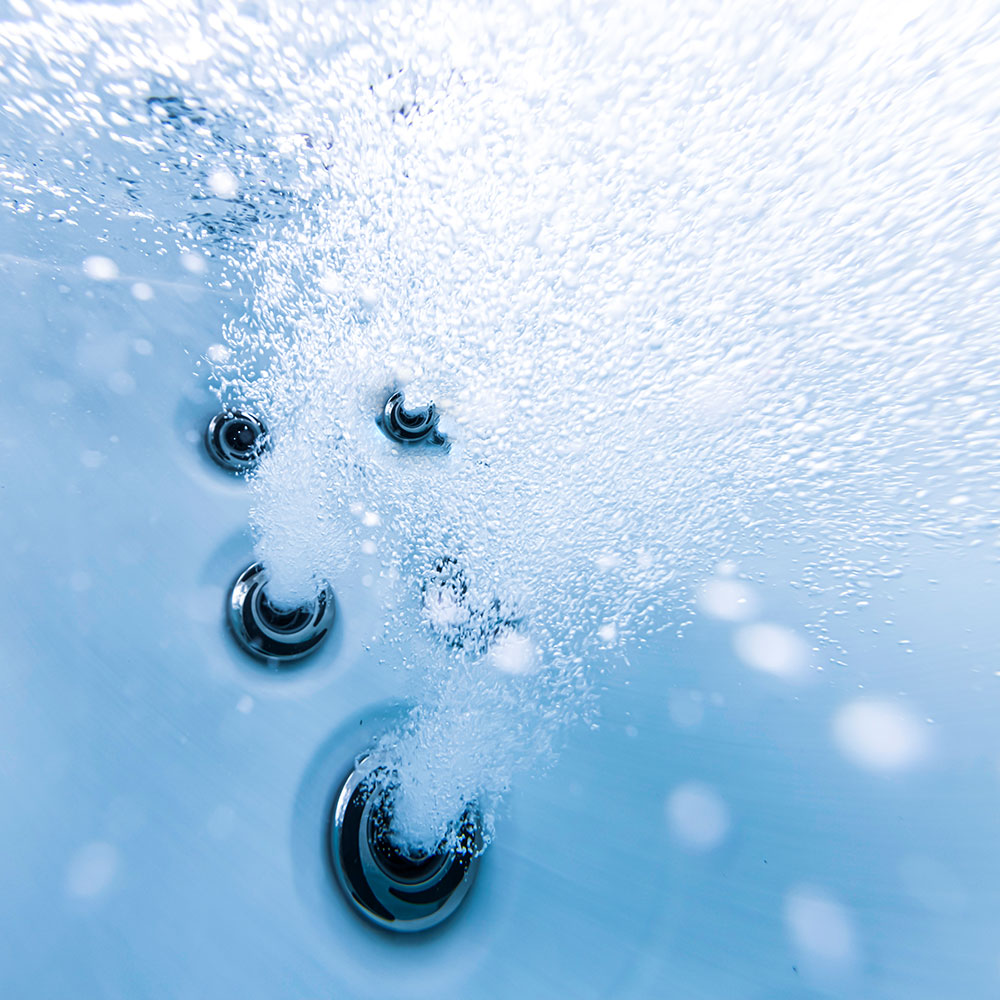

Four Massage Positions and 35 Hydrotherapy Jets
The dedicated spa zone is equipped with four massage positions and 35 imported massage jets.
The jets create focused streams of water for the back, shoulders, waist, legs and other body areas, depending on the selected seat and jet arrangement. Users can move between massage positions to experience different jet placements.
The supporting pump configuration listed for the BG-6659 includes:
Swim area: one 1.5 HP pump and one 2 HP pump
Spa area: two 2 HP pumps
Swimming system: one 7.5 kW variable-speed swim machine
The final pump operating modes and equipment brands should be confirmed in the approved order specification.
View More >>

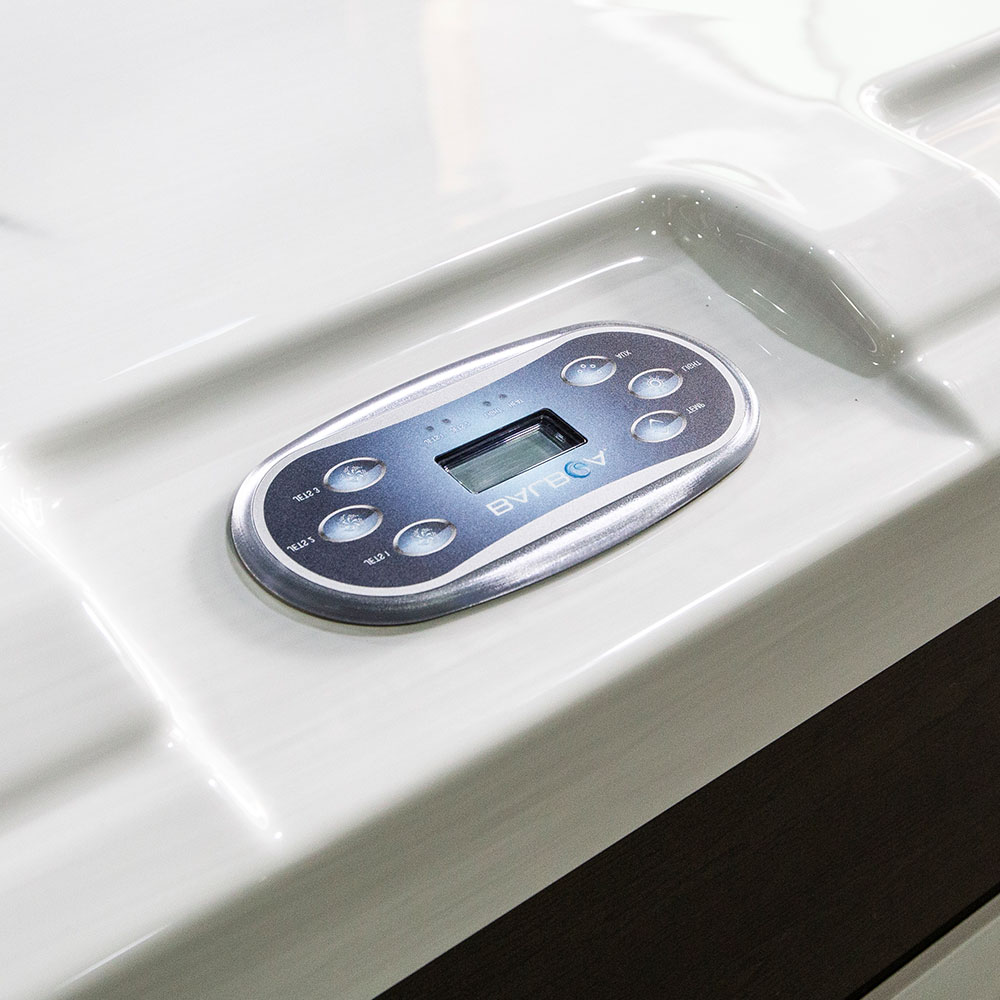

Separate Heating and Control for Each Water Zone
The BG-6659 is equipped with two 3 kW heaters and two control systems, supporting independent operation of the swim and spa areas.
This dual-control architecture allows users to:
Set different temperatures for swimming and hydrotherapy
Operate the two zones for different purposes
Adjust spa functions without interrupting the swim zone
Use swimming and massage functions at the same time
Manage each water area more conveniently
The standard specification lists two Canadian control systems, with U.S. Balboa control systems available as an optional configuration.
The final control brand, interface, electrical standard and available functions should be confirmed before production.
View More >>
Multi-Stage Water Care with Filtration, Ozone and UV
The BG-6659 uses a multi-stage water-management configuration to support water clarity and everyday maintenance.
The listed water-care equipment includes:
Six paper filter elements
One ozone purification system
One 80 W ultraviolet treatment unit
Sand filtration tank with maintenance access
External large-loop circulation pipework
The paper filters capture suspended particles, while the ozone and UV systems provide additional water-treatment support. The large-loop circulation design helps move water through the filtration equipment.
Ozone and ultraviolet treatment complement normal spa-water maintenance but do not eliminate the need for correct sanitizer levels, pH testing, filter cleaning and scheduled water replacement.
Water-treatment requirements should always be adapted to local regulations, usage frequency and water conditions.
View More >>
Durable Materials for Residential and Commercial Projects
The BG-6659 combines an acrylic shell with a reinforced supporting structure designed for long-term installation.
Imported Aristech Acrylic Shell
The main shell is manufactured from imported Aristech acrylic sheet. Acrylic provides a smooth, easy-to-clean surface suitable for swim spa and hot tub applications.
Available shell colors should be confirmed when requesting a quotation.
Insulated Shell and Plumbing
The BG-6659 includes insulation around the spa body and pipework to help reduce unnecessary heat loss.
Actual operating efficiency depends on ambient temperature, selected water temperatures, frequency of use, cover quality and installation conditions.

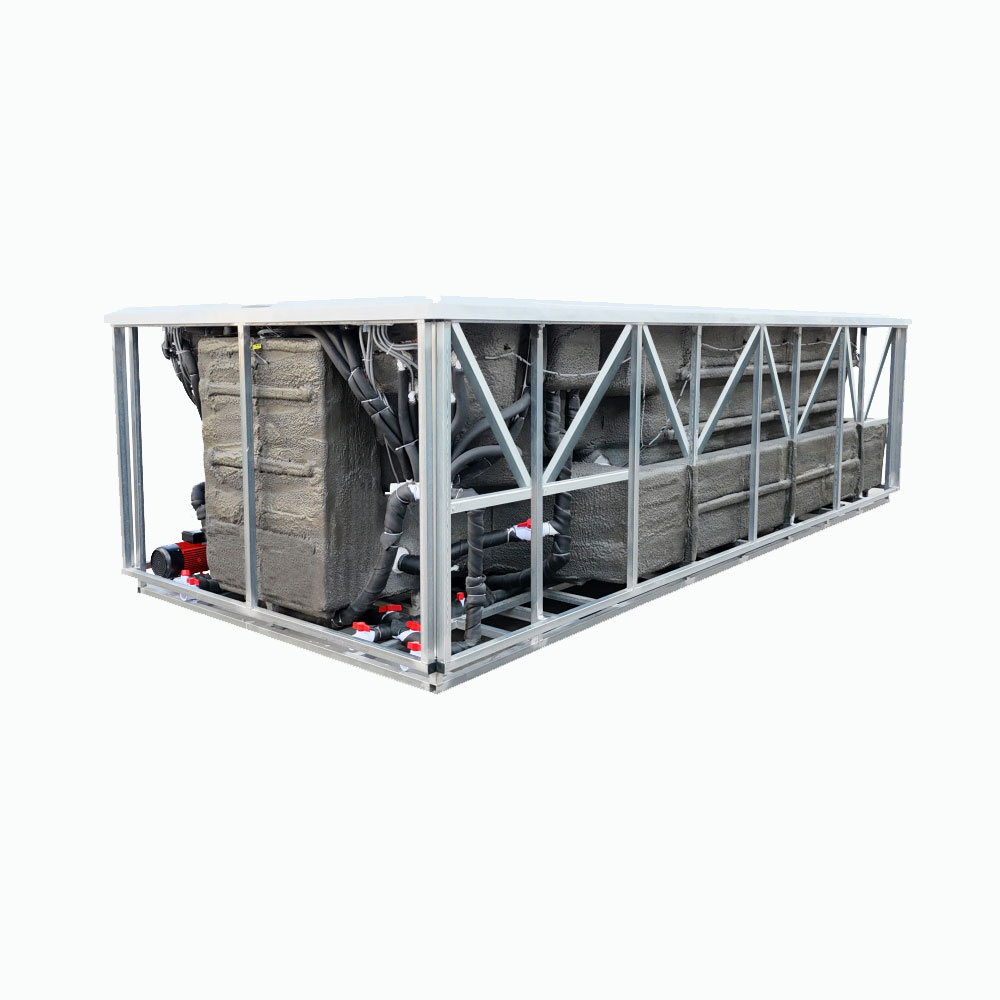

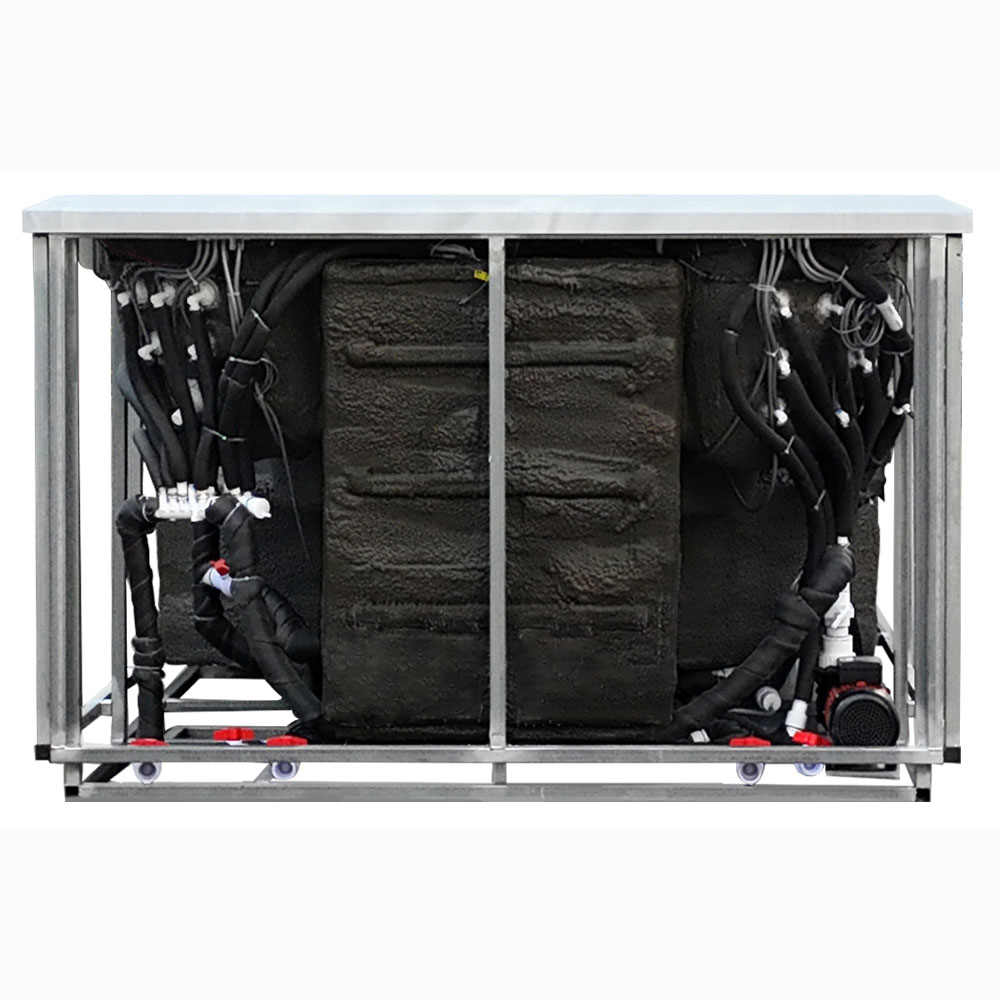

Hot-Dip Galvanized Support Frame
A hot-dip galvanized support frame provides structural support beneath the shell and internal equipment.
The galvanized finish helps protect the frame in humid spa environments. Final site preparation must still provide a flat and correctly engineered foundation.
PS Synthetic-Wood Cabinet
The exterior cabinet uses PS synthetic-wood panels for a modern appearance and lower routine maintenance than natural timber.
Cabinet colors and decorative finishes can be selected from the available factory options, subject to order requirements.

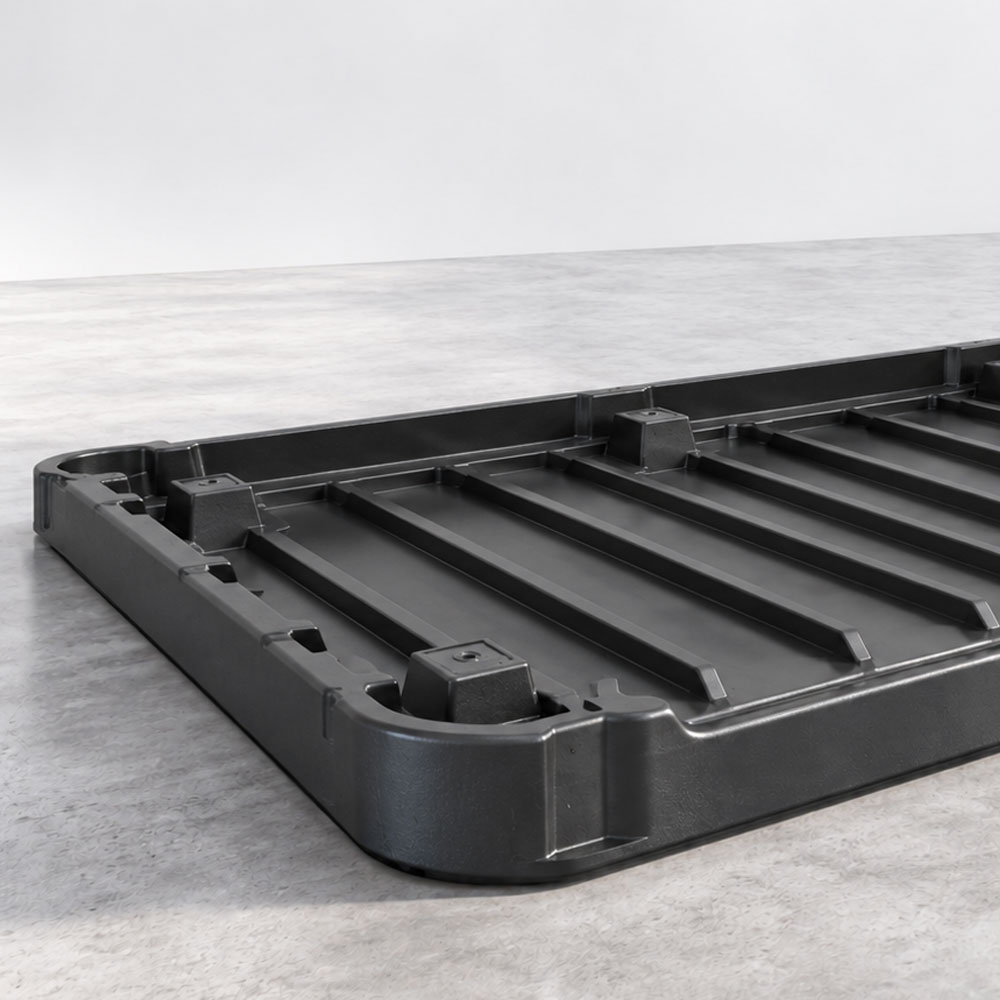

Reinforced ABS Base
The bottom of the swim spa uses a reinforced ABS base pan. The base helps separate internal components from the installation surface and provides additional protection for the underside of the unit.

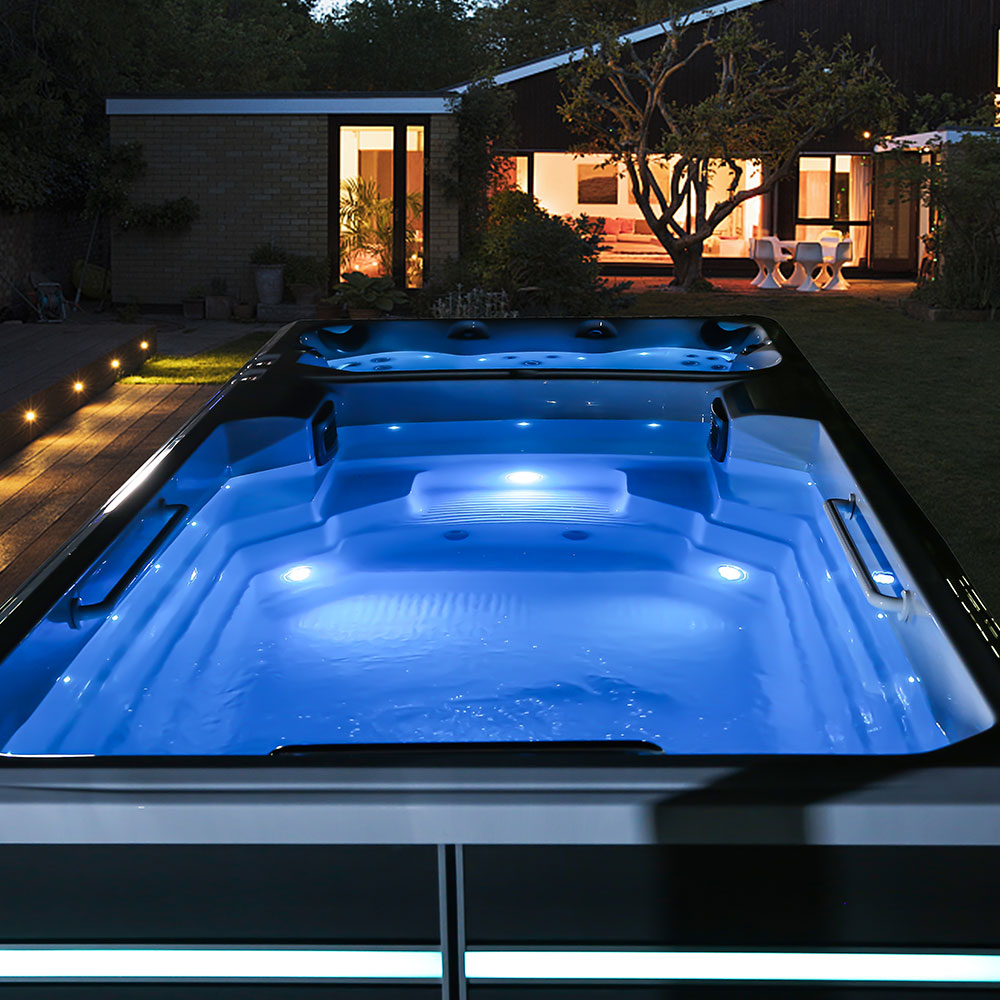

LED Lighting
The underwater and waterline lighting helps define the two-zone layout after dark.

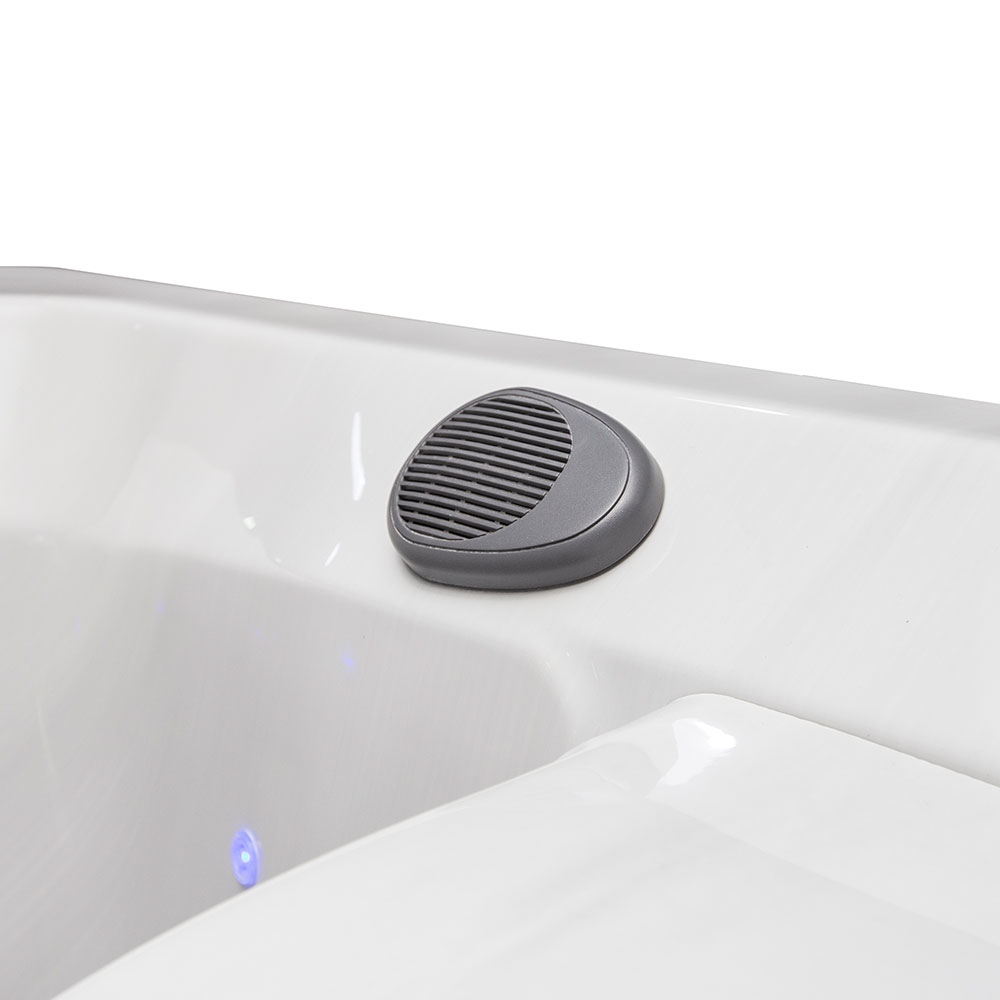

Bluetooth Audio
Bluetooth audio allows users to play music from a compatible mobile device.
BG-6659 Technical Specifications
Specifications may be adjusted as part of product development or an OEM order. The approved quotation and production specification
should be used as the final reference.
| Specification | BG-6659 Configuration |
| Product type | Dual-zone, dual-temperature swim spa |
| Spa-area dimensions | 1,470 × 1,920 × 860 mm |
| Net weight | 1,600 kg / approximately 3,527 lb |
| Massage positions | 4 |
| Massage jets | 35 imported jets |
| Swimming system | 7.5 kW integrated variable-speed swim machine |
| Control system | Two Canadian control systems; U.S. Balboa option available |
| Paper filters | 6 filter elements |
| Ozone system | 1 set |
| UV treatment | 80 W |
| Heaters | 2 × 3 kW |
| Swim-area auxiliary pumps | 1 × 1.5 HP and 1 × 2 HP |
| Spa-area auxiliary pumps | 2 × 2 HP |
| Support frame | Hot-dip galvanized frame |
| Total rated power | 20 kW |
| Available voltage | 220 V or 380 V |
| Feature | BG-6659 Dual-Zone Swim Spa | Typical Single-Zone Swim Spa |
| Separate water compartments | Yes | No |
| Different swim and spa temperatures | Yes | No |
| Simultaneous swimming and hot-water massage | Yes | Usually limited |
| Dedicated swim area | 8,000 L | Shared with seating area |
| Dedicated spa area | 1,500 L | Shared with swim area |
| Heating systems | Two 3 kW heaters | Usually one heating system |
| Control architecture | Two control systems | Usually one control system |
| Massage positions | Four dedicated positions | Integrated into the main water area |
| Best suited for | Swimming, exercise and hydrotherapy at the same time | Users comfortable with one shared temperature |
Who Is the BG-6659 Designed For?
The BG-6659 is suitable for:
Homeowners seeking a combined swim spa and hot tub
Villas and premium residential developments
Swim spa dealers and distributors
Hotels, resorts and holiday properties
Fitness and wellness facilities
Boutique gyms and personal-training studios
Property developers
Private-label spa brands
Importers seeking an OEM dual-zone swim spa
Its 5.9-meter footprint provides a substantial exercise area while remaining more compact than many conventional swimming pools.
Available customization can be discussed for:
Brand logos and private labeling
Acrylic shell colors
Exterior cabinet colors
Control-system selection
Voltage and electrical configuration
Packaging and documentation
Product manuals
Accessories
Dealer or project-specific specifications
Available options, minimum order quantity, certification requirements, warranty terms, production time and packaging should be confirmed during quotation.
For market-specific projects, provide the destination country at the beginning of the inquiry so the appropriate electrical and documentation requirements can be reviewed.
-
What is the actual size of the BG-6659?
The BG-6659 measures 5,900 × 2,250 × 1,500 mm, equivalent to approximately 19.36 × 7.38 × 4.92 ft. It is marketed within the 20-foot swim spa category.
-
Is the BG-6659 a true dual-zone swim spa?
Yes. It has two physically separated water compartments: an 8,000 L swimming area and a 1,500 L spa area.
-
Can the two zones operate at different temperatures?
Yes. The BG-6659 uses two control systems and two 3 kW heaters to support separate temperature management for the swim and spa zones.
-
How powerful is the swimming system?
The BG-6659 is equipped with a 7.5 kW integrated variable-speed swim machine. It produces an adjustable counter-current for stationary swimming and aquatic exercise.
-
How many people can use the spa area?
The hydrotherapy area includes four massage positions. Actual product occupancy must follow local safety requirements and the operating instructions supplied with the unit.
-
How many massage jets does it have?
The BG-6659 has 35 imported massage jets arranged around the hydrotherapy positions.
-
What water-treatment systems are included?
The listed configuration includes six paper filter elements, one ozone system, an 80 W UV unit and sand filtration equipment.
These systems support water clarity and sanitation but must be used together with appropriate water testing and chemical maintenance.
-
What is the total water capacity?
The swimming area holds a nominal 8,000 liters, and the spa area holds 1,500 liters. Combined nominal capacity is 9,500 liters, or approximately 2,510 US gallons.
-
What electrical supply does the BG-6659 require?
The listed total power is 20 kW, with 220 V and 380 V configurations available. The required phase, frequency, cable size, breaker and protective equipment must be confirmed for the destination market before production and installation.
-
Can the BG-6659 be installed outdoors?
Yes, it can be planned for outdoor use when placed on a suitable foundation and installed with the correct electrical protection, drainage, service access and climate-appropriate insulation and cover.
-
Can it be installed indoors?
Indoor installation is possible, but the project must include suitable ventilation, humidity control, drainage, floor protection and access for future maintenance.
-
Can the swim spa be recessed into a deck?
Above-ground, partially recessed or deck-integrated installations may be possible. Equipment panels must remain accessible, and the surrounding structure must not transfer damaging loads to the spa cabinet. Final plans should be reviewed before construction.
-
Is OEM or private-label production available?
Yes. Branding, colors, control systems, electrical configurations, packaging and other project requirements can be discussed for wholesale and private-label orders.
