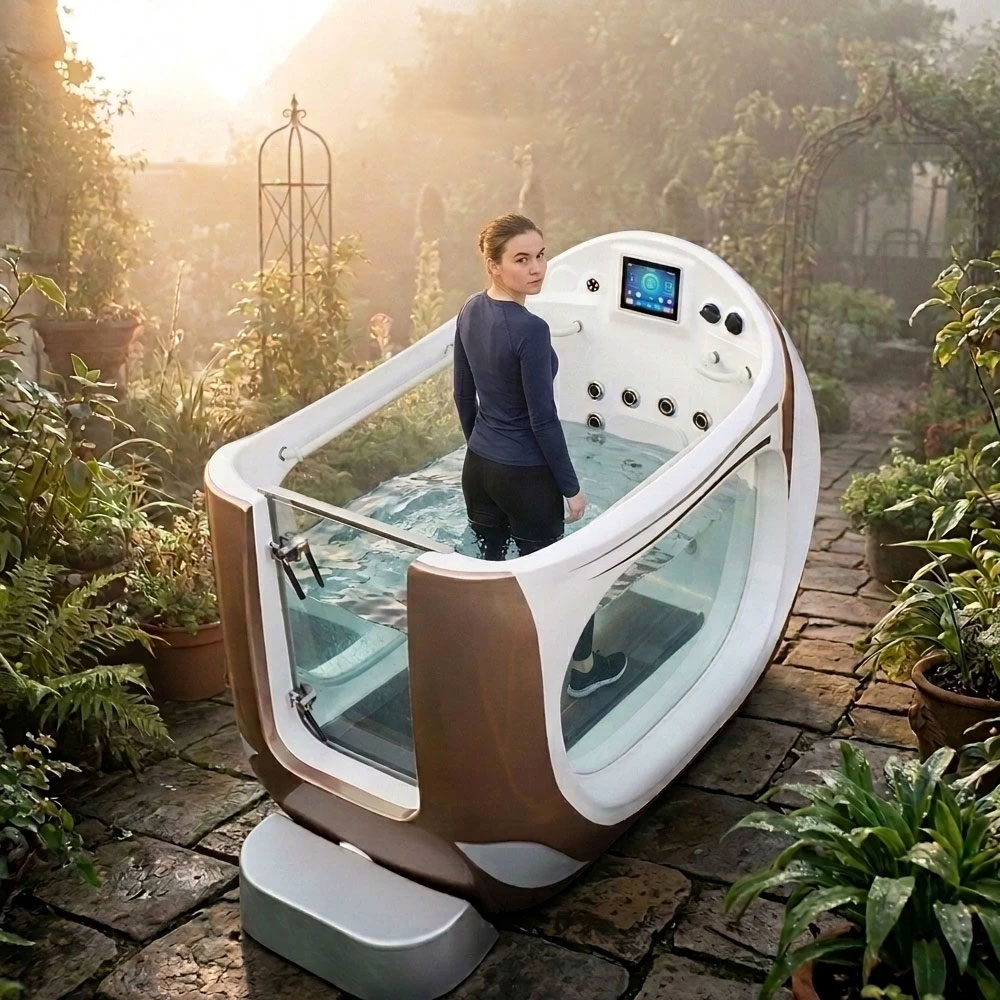

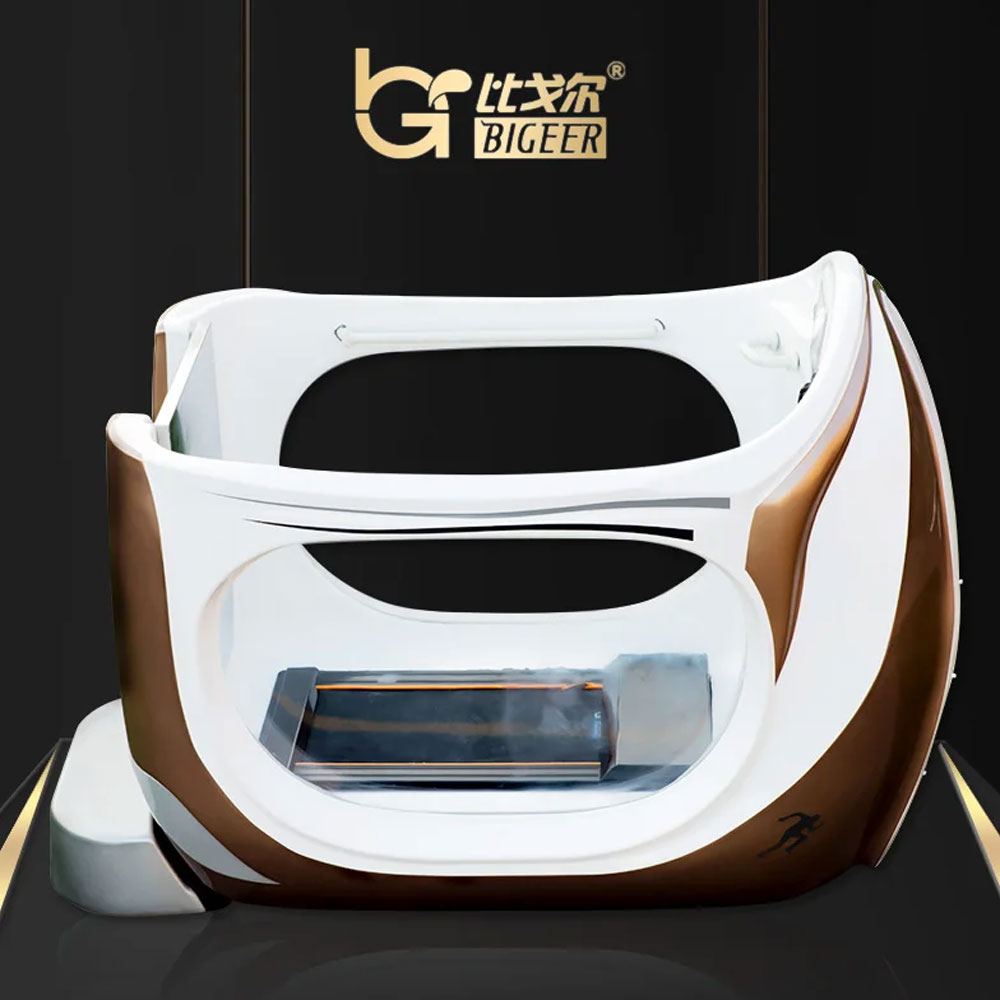

Walk-In Water Walker with Hydraulic Treadmill — bigeer BG-9960
The bigeer BG-9960 is a single-user walk-in underwater treadmill that combines a hydraulic walking belt with heated water and spa massage functions. Door access provides a dedicated entry point into the exercise chamber, creating a space for water walking in fitness, wellness and professionally supervised rehabilitation settings.
For facility owners, the BG-9960 brings aquatic exercise and seated spa use into one equipment package. Its published configuration includes a folding seat, water massage jets, a heater, a water pump and ozone treatment.
Contact bigeer for BG-9960 pricing, technical specifications and installation requirements.
How Does a Walk-In Underwater Treadmill Work?
A walk-in water walker places a powered treadmill inside a water-filled chamber. The user walks on the belt while water provides buoyancy and resistance. Buoyancy supports part of the body’s weight, while moving through water creates resistance.
These properties are also used in aquatic physiotherapy, where exercises are selected around the individual’s needs. Barwon Health explains the role of water in aquatic physiotherapy.
Exercise demand depends on walking pace, immersion depth and the person using the equipment. For rehabilitation, a qualified healthcare professional should assess suitability and set the exercise plan.

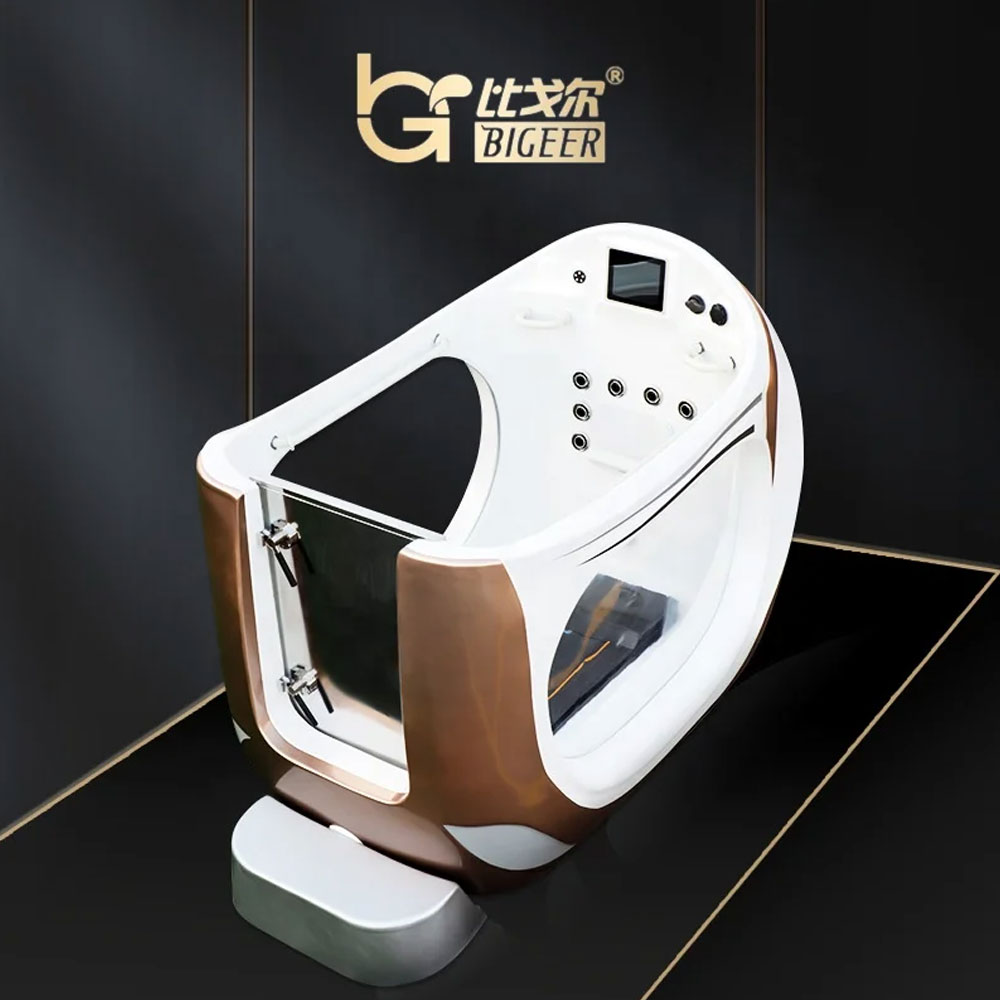

Door Access Without Climbing Over the Chamber Wall
The door-opening design provides an entry route without requiring the user to climb over the chamber wall. The listed configuration also includes an access step.
When planning the installation, consider the doorway opening, threshold, approach space and any assistance the user needs. Walk-in access does not automatically mean wheelchair-accessible or step-free access.

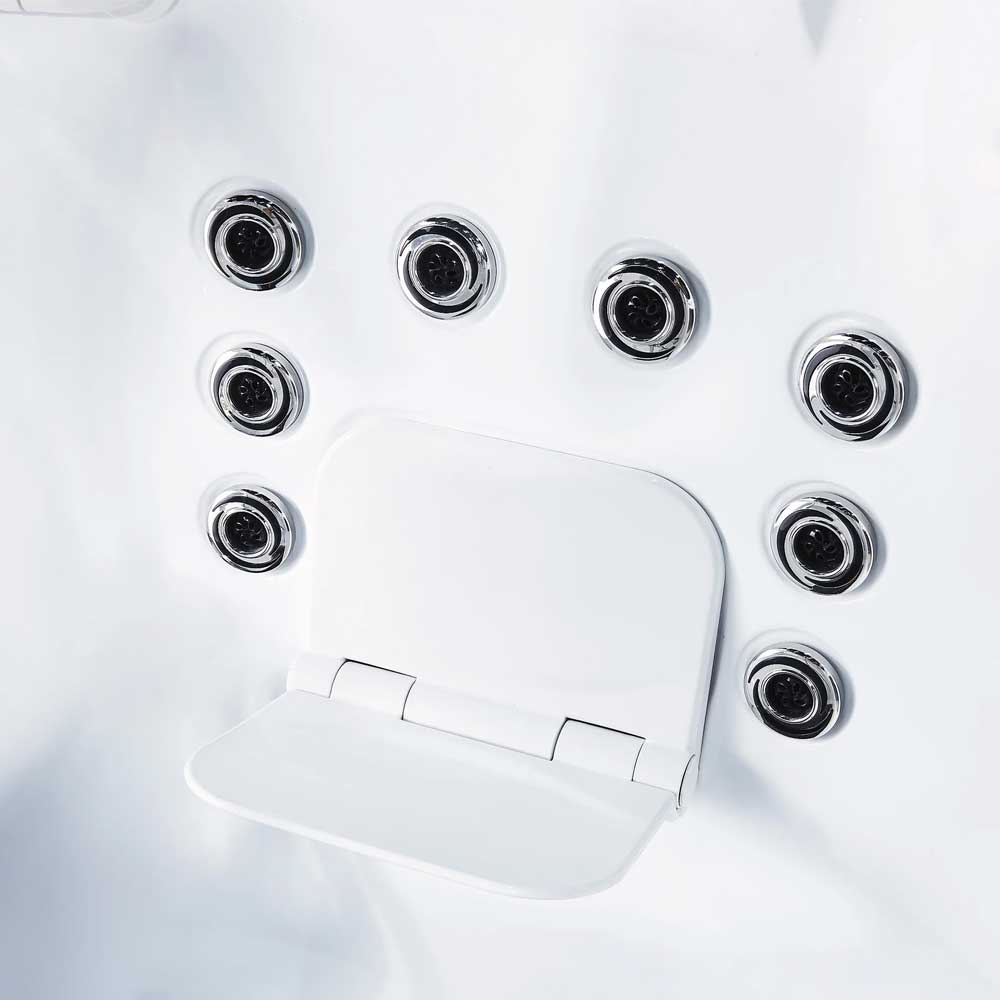

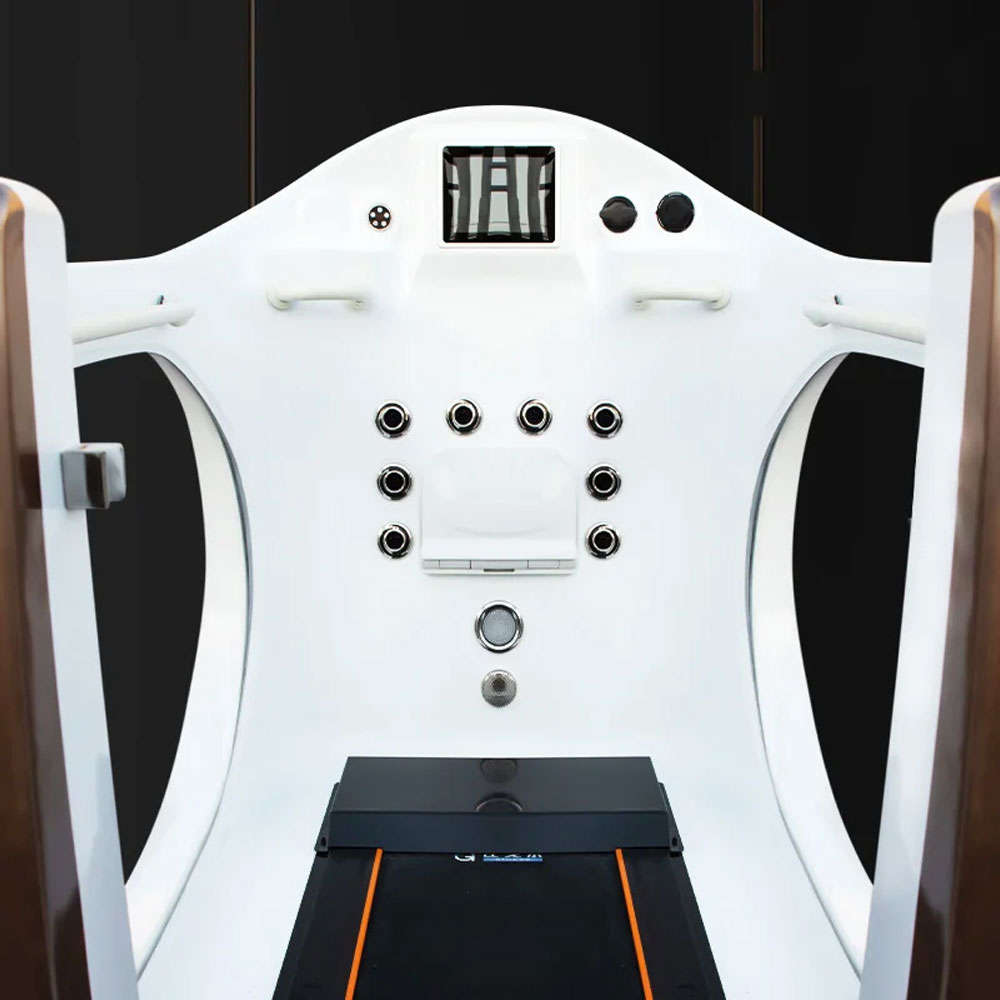

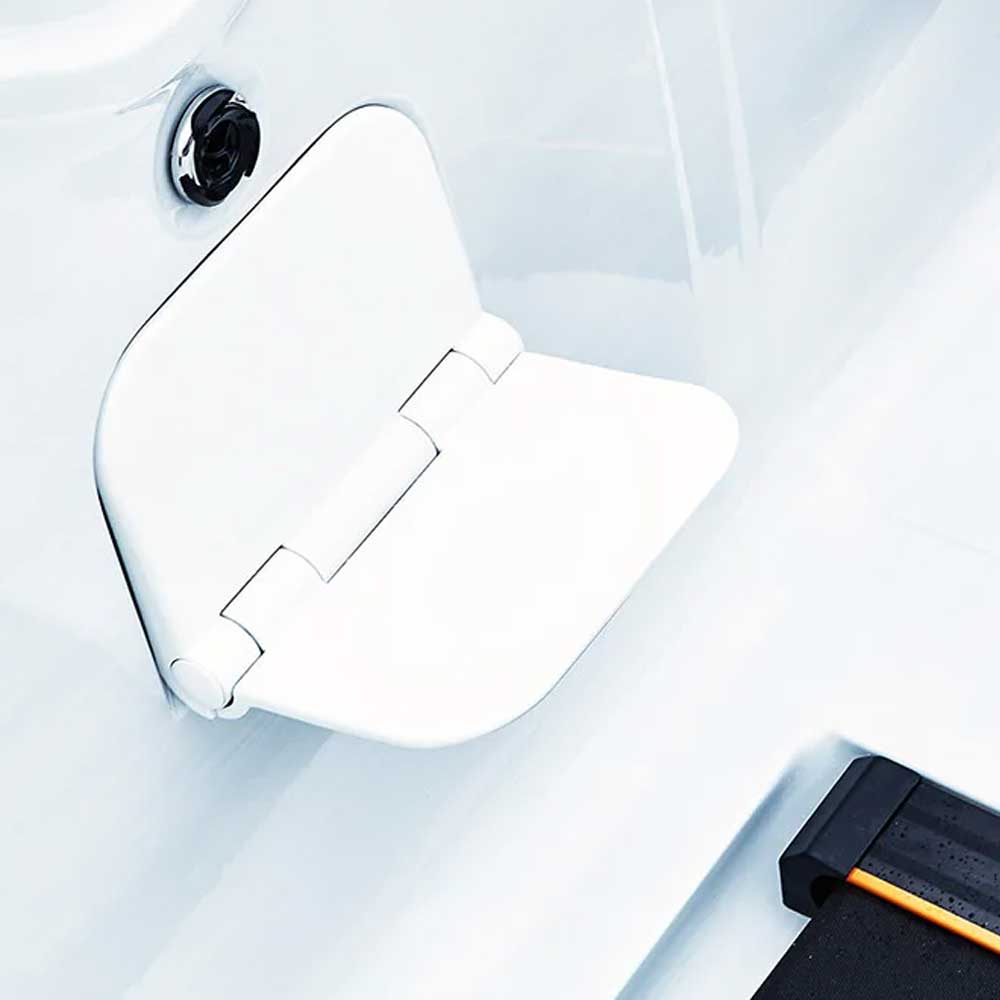

Touchscreen Operation and a Folding Seat
Touchscreen controls provide a central interface for operating the equipment. The folding seat offers a seated position inside the chamber and can be folded away when the walking area is needed.
This combination supports a practical setup for individual sessions. Operators should become familiar with the controls, seat mechanism and session procedures during equipment handover.
Viewing Window, Anti-Slip Floor and Emergency Stop
The large viewing window allows an attendant or rehabilitation professional to observe movement inside the chamber. An anti-slip chamber floor and emergency-stop button are included in the design.
These features support supervised use. Operators should understand the stopping and assisted-exit procedures before beginning a session.
4 kW Hydraulic Drive and Automatic Water Management

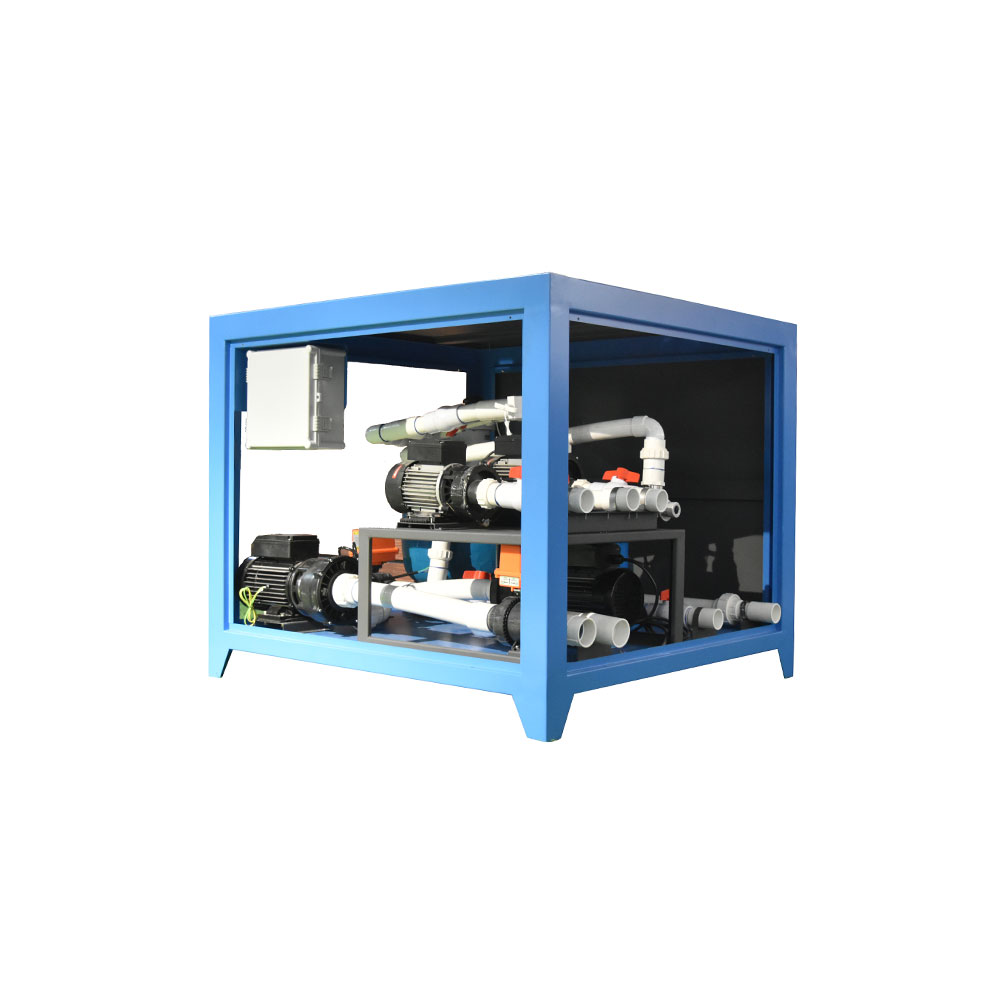

Hydraulic Power for the Underwater Treadmill
The BG-9960 uses a 4 kW hydraulic power unit to drive the treadmill. Its separate power station forms part of the system layout, while the complete product has a listed power rating of 12.8 kW.
For equipment selection, request the confirmed treadmill speed range, usable belt dimensions and maximum user weight for the supplied version.
Automatic Filling and Drainage
Dedicated filling and drainage pumps work with motorized inlet and drainage valves to manage water movement. Automatic filling and drainage support session preparation and completion without manually transferring water into and out of the chamber.
Actual filling and drainage times depend on the supplied system and installation. Confirm the operating sequence and cycle times during commissioning.
External Filtration, Heating and Water Treatment
The water-management package includes external circulation and filtration equipment, a sand filter vessel, a 3 kW heater and an ozone generator. A separate 3T-designated water tank is included in the configuration.
The heater supports water-temperature management, while the circulation and filtration components support routine water care. Ozone equipment does not replace a complete cleaning and water-quality management program.
Ultraviolet water treatment and an air-source heat pump are available as optional upgrades. Specify these separately when requesting a quotation.
BG-9960 Underwater Treadmill Technical Specifications
| Parameter | Specification |
| Product type | Walk-in water walker with hydraulic treadmill |
| Treadmill external dimensions | 2400 × 1520 × 1760 mm |
| Internal chamber dimensions | 1800 × 1340 × 1230 mm |
| Hydraulic power station dimensions | 1240 × 1160 × 1050 mm |
| External water tank dimensions | 1940 × 1085 × 1480 mm |
| Listed treadmill unit weight | 440 kg |
| Listed power station weight | 180 kg |
| Listed water tank weight | 200 kg |
| Listed water capacity | 2700 L |
| External water tank designation | 2T |
| Hydraulic power unit | 4 kW |
| Listed product power | 12.8 kW |
| Main controls | Touchscreen |
Internal chamber dimensions are not the usable treadmill belt dimensions. The 2700 L water capacity and 3T external tank designation are separate catalogue entries; confirm the required operating fill volumes for the complete system.
Use the approved installation drawing and confirmed operating loads for final site planning.
Applications for Home and Rehabilitation Facilities
We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.
Professionally Guided Home Aquatic Exercise
Small Rehabilitation and Physiotherapy Facilities
Individual Water-Walking Exercise
Installation Requirements and Routine Maintenance

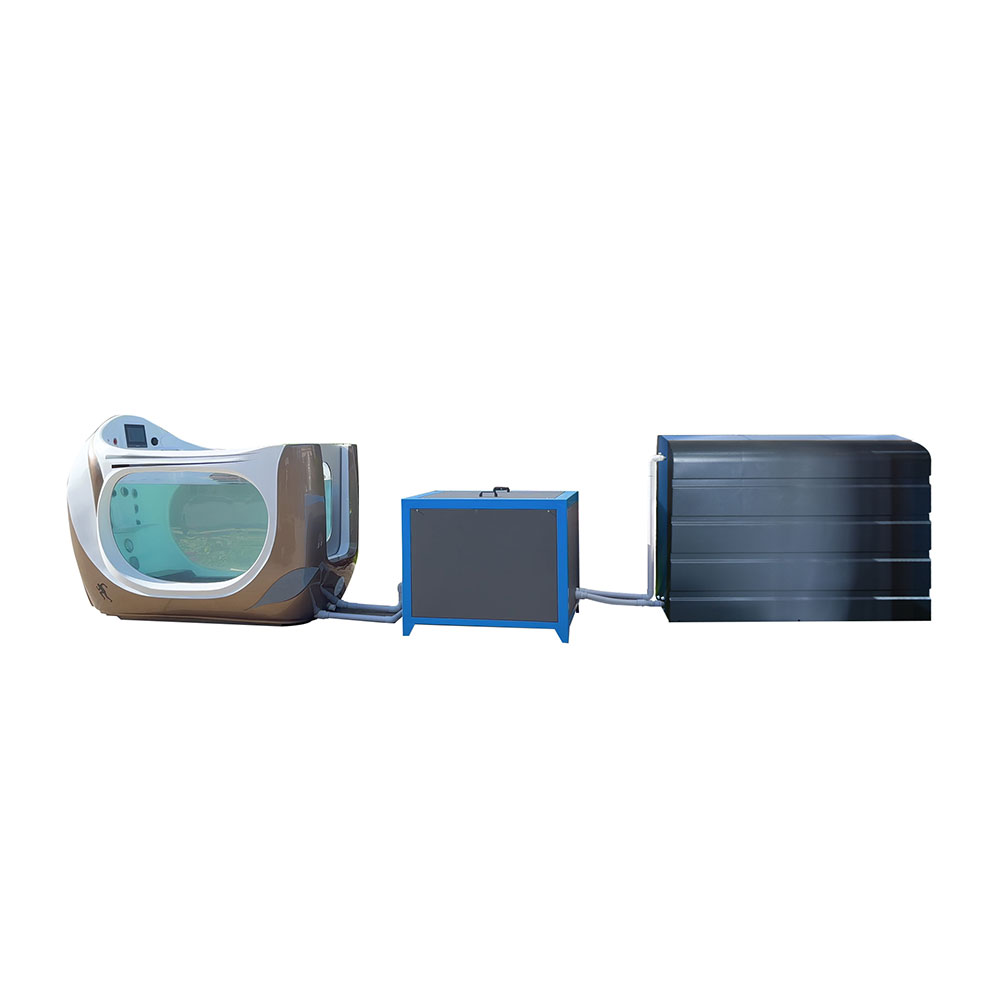

The main treadmill body measures 2400 × 1520 × 1760 mm, but these dimensions do not represent the total installation space. The external power station and water tank need their own positions and service access.
Your layout should account for:
*All three equipment units and their connecting pipework.
*Door movement, the access step and the user's entry route.
*Attendant working space and maintenance clearances.
*Delivery access, unloading and movement through the building.
*Water supply, drainage, electrical connections and room ventilation.
Share a dimensioned room plan with bigeer before finalizing the installation.
Verify Floor Loading and Electrical Supply
Site assessment must consider the equipment, operating water volumes and user load. A qualified site professional should check the supporting floor against the confirmed filled operating loads and equipment layout.
The listed product power is 12.8 kW. Request the voltage, frequency, phase, circuit and protective-device requirements for your supplied configuration, and have a qualified local electrician review them before installation.
Establish a Practical Maintenance Routine
Follow the equipment manual for cleaning the chamber, viewing window, seat and walking area. Routine care should also cover door seals, filters, water quality, pumps, valves, pipe connections, hydraulic components and safety controls.
Cleaning and water-treatment procedures should match the installation's usage and applicable local requirements. Include maintenance access, consumables and replacement parts in your purchasing discussion.
Discuss a custom project
-
What Is a Walk-In Water Walker with a Hydraulic Treadmill?
It is an aquatic exercise system with door access to a water-filled chamber containing a hydraulically driven walking belt. The BG-9960 combines this exercise chamber with a separate power station and external water tank.
-
Does the BG-9960 Require an Existing Swimming Pool?
No. The BG-9960 has its own exercise chamber and external water-management equipment. It still requires a suitable installation area, structural assessment and the utility connections specified for the supplied system.
-
How Much Space Does the BG-9960 Need?
The treadmill body measures 2400 × 1520 × 1760 mm. Additional space is required for the 1240 × 1160 × 1050 mm power station, the 1940 × 1085 × 1480 mm water tank, entry access and maintenance. The final room requirement depends on the approved layout.
-
Is the Water Capacity 1800 L or 2T?
The catalogue lists 1800 L as the water capacity and describes the separate external water tank as 3T. These entries should not be treated as identical operating volumes. Confirm the fill volumes and total operating load for the complete installation.
-
Are UV Treatment and an Air-Source Heat Pump Included?
No. They are optional upgrades. The listed configuration includes a 3 kW heater, ozone equipment and external filtration; UV treatment and an air-source heat pump should be specified separately.
-
Is Walk-In Access the Same as Wheelchair Access?
No. A door provides an alternative to climbing over the chamber wall, but wheelchair compatibility depends on doorway clearance, threshold, transfer arrangements and the installation layout. Confirm access requirements before ordering.
-
Can the BG-9960 Be Used for Rehabilitation After Surgery?
A qualified healthcare professional should decide whether aquatic exercise is appropriate, when it can begin and what supervision is needed. Suitability depends on the individual and their recovery plan; the equipment does not guarantee a particular clinical outcome.
-
How Much Does the BG-9960 Cost?
Pricing depends on the confirmed equipment package, optional upgrades, quantity and delivery destination. Request an itemized quotation and consider freight, site preparation, installation, commissioning and ongoing maintenance when comparing total project cost.
-
