Bigeer
-
BG-9980
-
4860 × 1800 × 2130 mm
-
3000 × 1620 × 2100 mm
-
2500 L
-
2530 kg
-
1 Seat
-
Cartridge filtration 1set* Ultraviolet treatment *1set Ozone disinfection*1set
-
Chiller 1 × 1.5 HP
-
Variable-Frequency Control System
-
316 Stainless Steel
-
316 Stainless Steel
-
12 kW
-
1 unit
-
45 days
Horse Underwater Treadmill for Equine Training and Rehabilitation
What Is a Horse Underwater Treadmill?
A horse underwater treadmill, also called an equine water treadmill or equine aqua treadmill, is an exercise system in which a horse moves on a belt inside a water-filled chamber.
Unlike swimming, treadmill exercise maintains contact between the hooves and the moving surface. Water introduces resistance and buoyancy, creating a different exercise environment from a dry treadmill. The effect depends on the horse, water depth, belt speed and session design.
For rehabilitation, a veterinarian should determine whether water treadmill exercise is appropriate and guide the program. Equipment settings should support that plan rather than replace professional assessment.

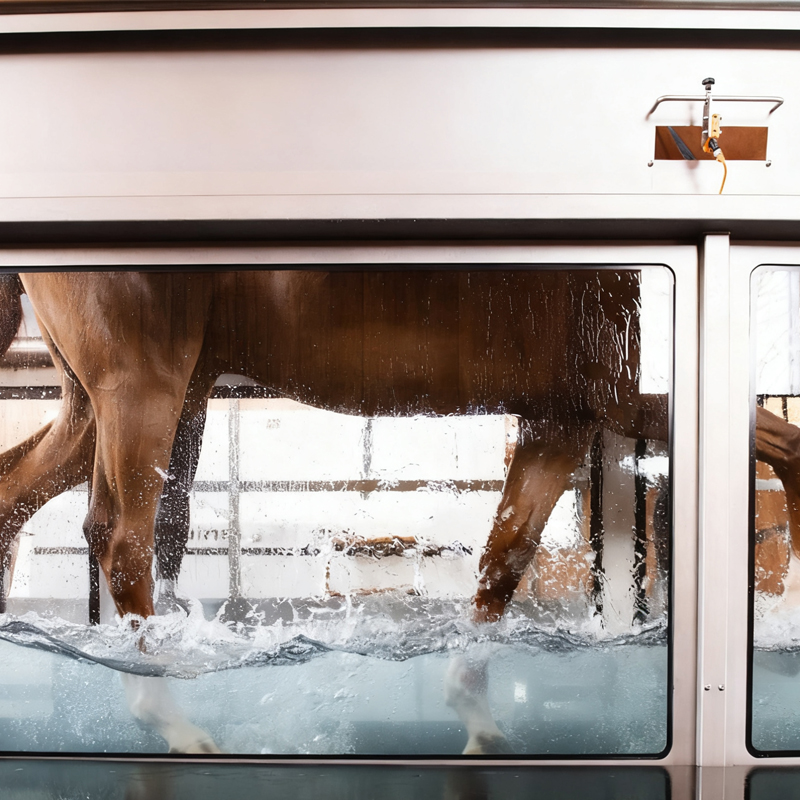

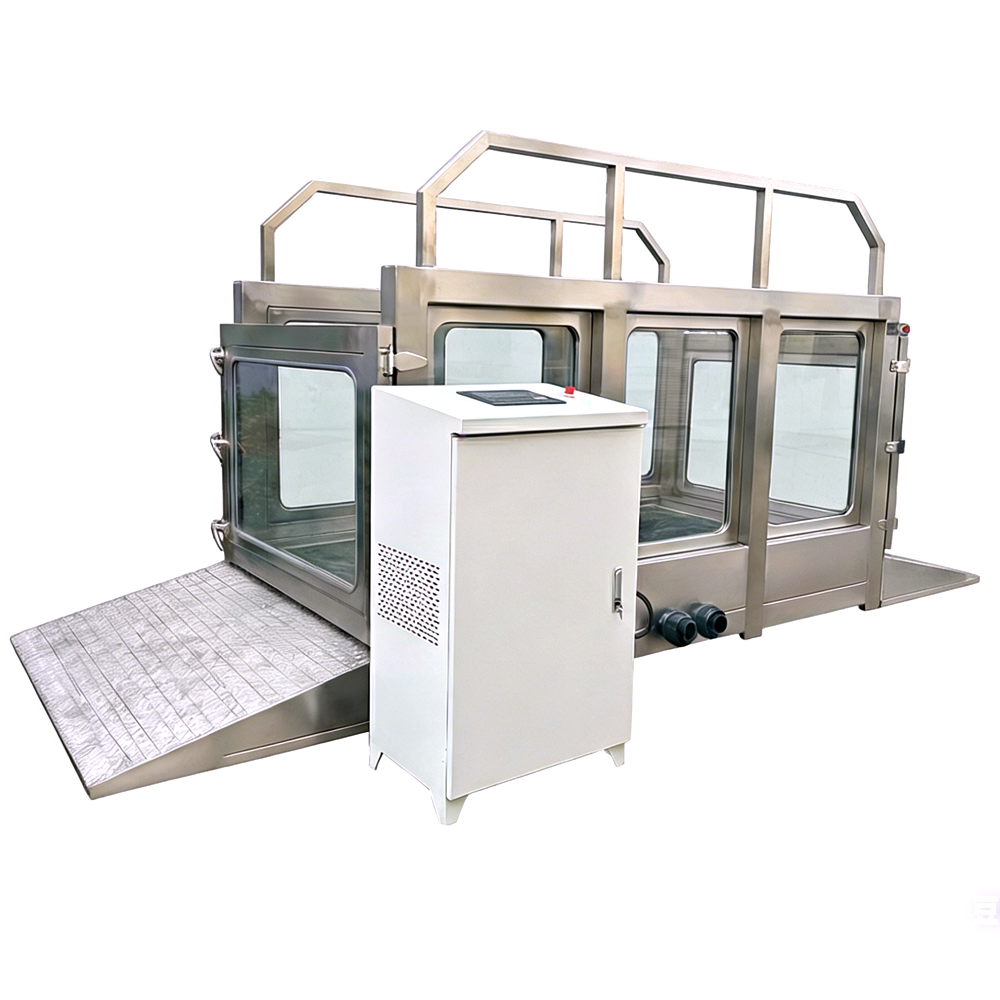

Transparent Panels for Observing Equine Movement
The BG-9980 Fully Transparent Edition gives handlers a view into the exercise chamber through transparent panels. This visibility helps staff observe limb movement, hoof placement and the horse’s response while supervising a session.
For facilities comparing equine hydrotherapy equipment, visibility is a practical consideration: operators need to see the horse as well as access the controls.
| Edition | Catalog description |
| BG-9980 Fully Transparent Edition | Transparent chamber design emphasizing visibility |
| Luxury Gold Edition | Gold-finish version with a corrosion-resistant metal cabin |
Variable-Speed Operation and Touchscreen Controls
The horse treadmill system combines variable-speed operation with a 10.2-inch touchscreen. A 4kW hydraulic system forms part of the listed equipment configuration.
Speed control gives operators a way to match belt movement to the professionally selected exercise plan. During equipment selection, review the control interface, adjustment range and available operating modes with bigeer.
The catalog lists a speed range of 0.8–15 km/h. This is an equipment specification, not a recommended underwater training range. Confirm the permitted speeds for wet and dry operation, together with operating limits and stopping procedures, before use.
Stainless Steel Construction and a Non-Slip Belt
The horse treadmill section specifies 316 stainless steel and tempered glass, together with rounded corners and a non-slip, shock-absorbing running belt.
These construction details matter when selecting equipment for a wet environment. The chamber, belt, access points and surrounding floor should be considered together as part of the facility’s handling setup.

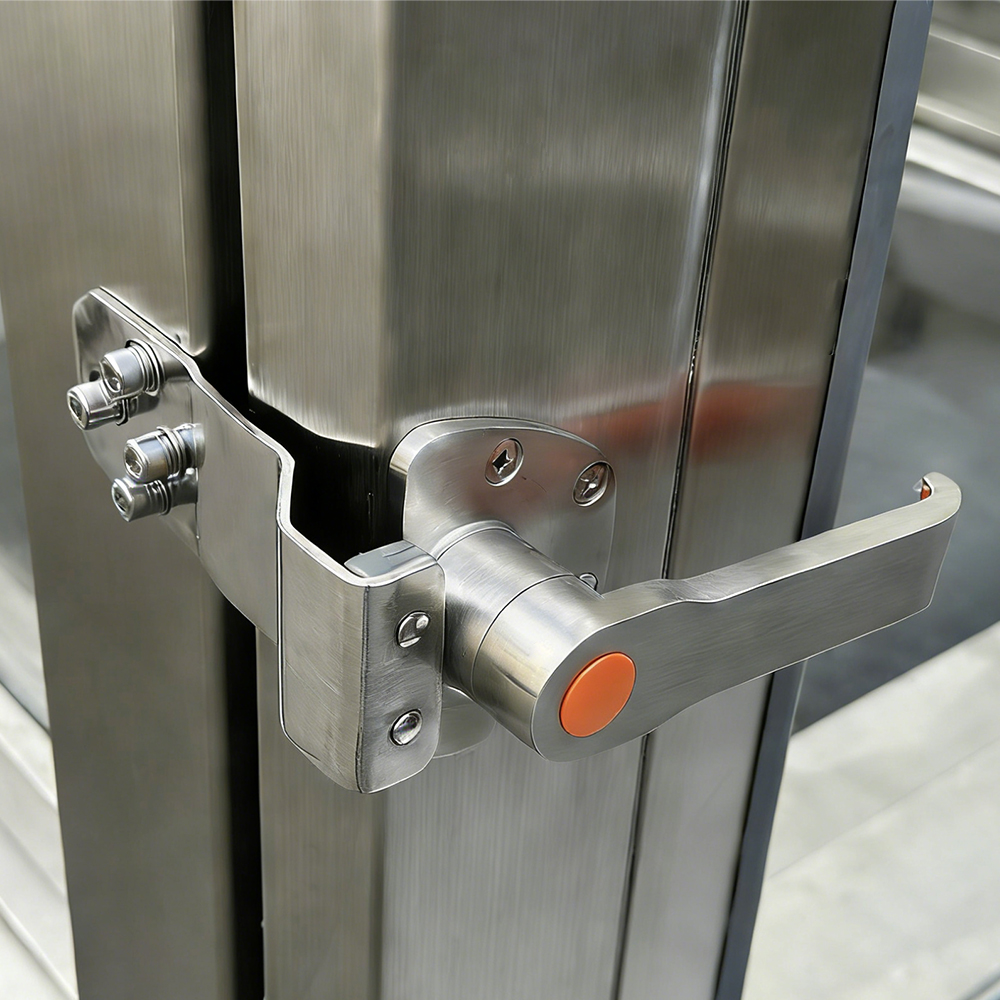

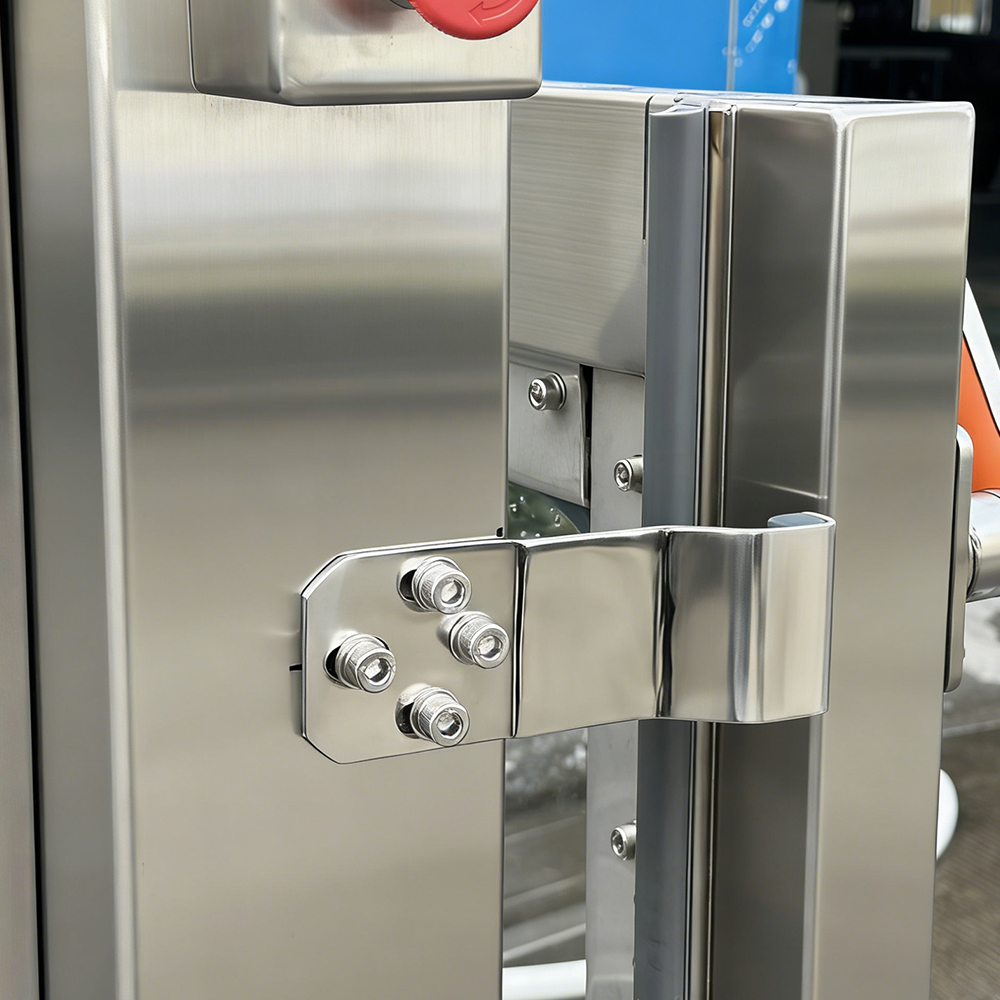

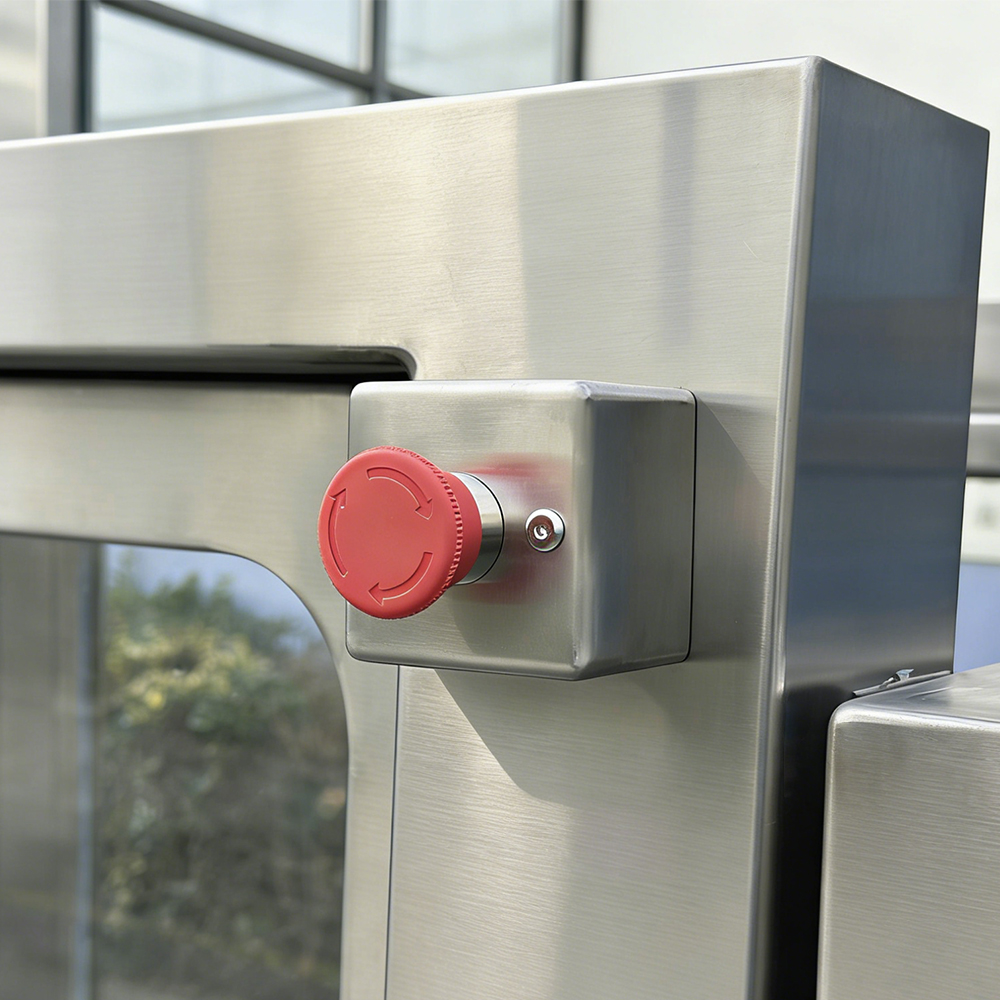

Review the supplied access arrangement, door operation and operator positions during the equipment demonstration. Confirm emergency-stop functions, drainage procedures and operator training as part of commissioning.
| Specification | Catalog reference |
| Product category | Horse underwater treadmill / equine water treadmill |
| Transparent edition | BG-9980 Fully Transparent Edition |
| Alternative edition | Luxury Gold Edition |
| Listed overall dimensions | 4,860 × 1,800 × 2,130 mm |
| Approximate overall dimensions | 15.94 × 5.91 × 6.99 ft |
| Treadmill external dimensions | 3,000 × 1,620 × 2,100 mm |
| Chamber internal dimensions | 2,610 × 1,360 × 1,780 mm |
| Listed equipment weight | 2,530 kg |
| Listed water capacity | 2,500 L / approximately 660 US gal |
| Listed product power | 12kW |
| Hydraulic system | 4kW |
| Listed speed range | 0.8–15 km/h; operating-mode limits require confirmation |
| Touchscreen | 10.2 inches |
| Chiller | 1 × 1.5HP |
| Construction materials | 316 stainless steel and tempered glass |
| Running belt | Non-slip, shock-absorbing belt |
| Water-treatment equipment | Cartridge filtration, UV and ozone |
| Water tank external dimensions | 1,840 × 1,040 × 1,460 mm |
| Water-treatment enclosure dimensions | 1,240 × 1,160 × 1,050 mm |
| Listed voltage | 380V |
| Listed frequency | 50/60Hz |
Installation Planning for Equine Facilities
A successful installation begins with the complete system layout, including the treadmill, water tank, water-treatment enclosure and access routes.
Space and Horse Access
Provide your available room dimensions, door openings and delivery route. Plan clear entry and exit paths, handler positions and service access around the equipment.
Use the approved project drawing to establish the installation area. Chamber dimensions alone do not determine whether the equipment is suitable for every horse.
Water, Drainage and Floor Loading
Confirm water supply, drainage connections and cleaning access before installation. Floor design must account for equipment, water, the horse and the distribution of loads across the system.
The listed equipment weight should not be treated as the complete operating load. Request the project-specific loading information for your facility.
| Facility type | Intended application |
| Equine veterinary facilities | Equipment for veterinarian-directed exercise programs |
| Equine rehabilitation centers | Supervised aquatic exercise where clinically appropriate |
| Equestrian clubs | An additional exercise option within a managed training program |
| Professional training yards | Structured water treadmill sessions alongside other training |
| Horse breeding facilities | Managed exercise for suitable horses |
Discuss a custom project
-
Is a horse water treadmill the same as a horse swimming pool?
No. A water treadmill allows the horse’s hooves to contact a moving belt during exercise. In a swimming pool, the horse swims without that belt contact. The appropriate choice depends on the exercise objective and professional assessment.
-
Can the BG-9980 be used for rehabilitation?
The catalog positions the horse treadmill for training and rehabilitation settings. For an injured or postoperative horse, use should be approved and directed by the treating veterinarian.
-

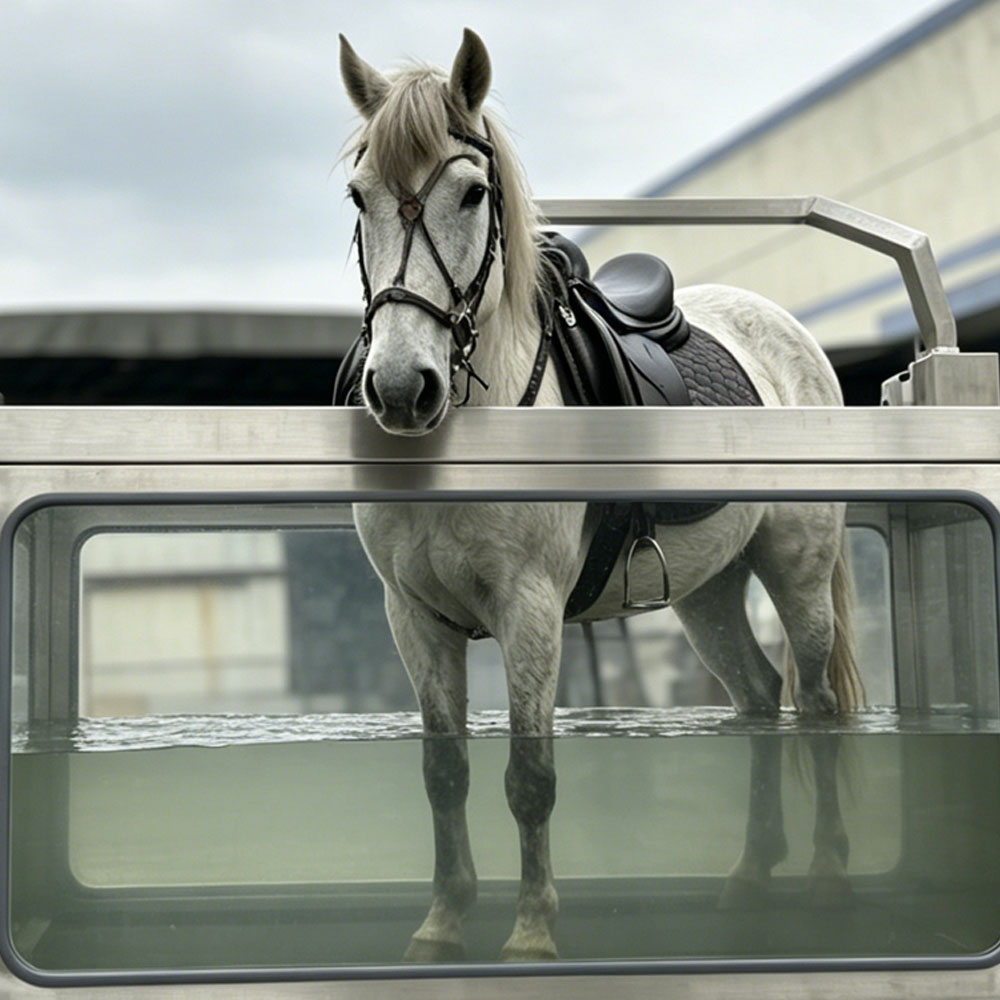

Can operators see the horse’s legs during a session?
The BG-9980 Fully Transparent Edition uses transparent panels to provide a view into the chamber. Visibility also depends on water clarity, lighting and the operator’s position.
-
What water depth does the treadmill support?
Request the confirmed operating water-depth range for the selected edition. The appropriate session depth depends on the horse and exercise plan, within the equipment’s approved limits.
-

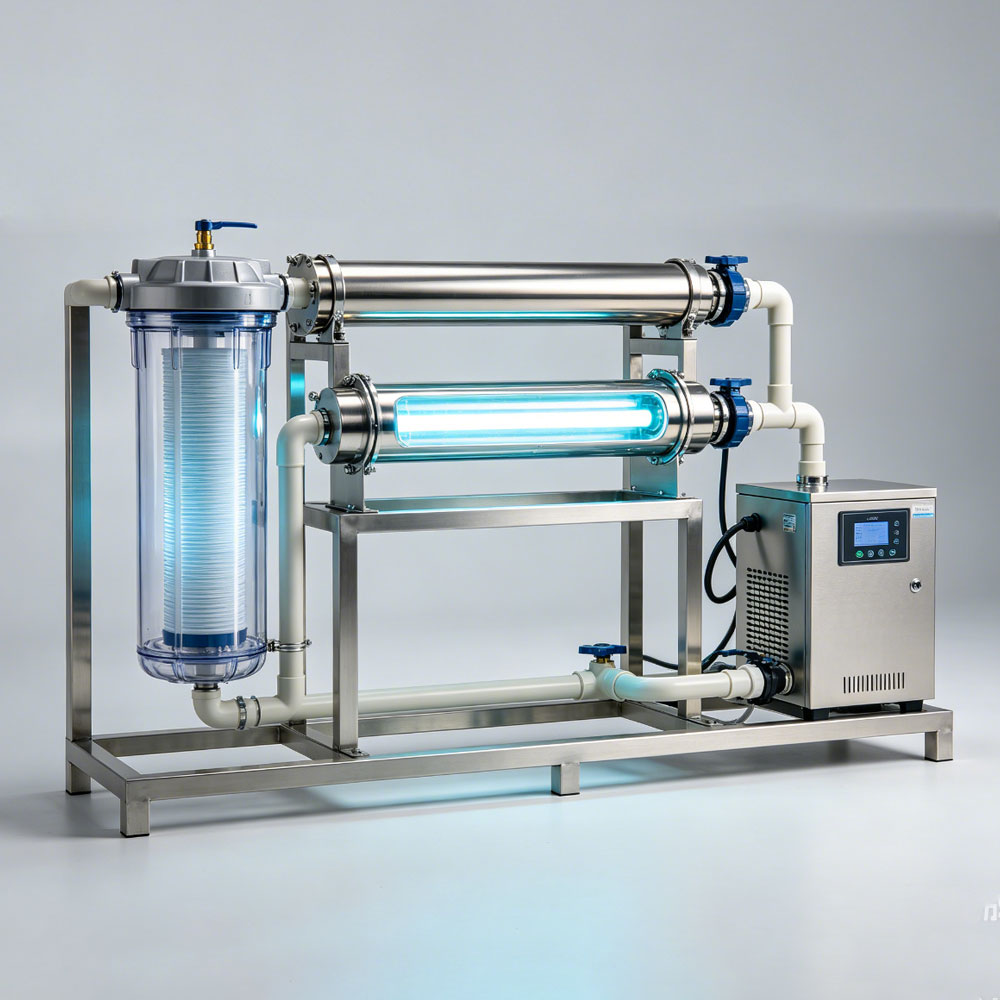

Does the system include cooling and water treatment?
The catalog configuration lists a 1.5HP chiller, cartridge filtration, UV and ozone equipment. Confirm inclusion and the operating specifications in your final quotation.
-
How much space is required?
The catalog lists overall dimensions of 4,860 × 1,800 × 2,130 mm, plus separate dimensions for the water tank and treatment enclosure. The complete installation needs additional space for access, handling and maintenance.
-
Can it be installed in the United States?
A U.S. installation requires review of the site’s electrical supply, applicable documentation and installation requirements. The catalog lists 380V; confirm the destination-specific equipment configuration before ordering.
-
How much does a horse underwater treadmill cost?
Pricing is quoted according to the selected edition, equipment configuration, destination and service scope. Send your project details to bigeer for an itemized quotation.
Request a bigeer Horse Underwater Treadmill Quote
Plan your equine water treadmill installation around visibility, equipment specifications and practical facility requirements. The BG-9980 Fully Transparent Edition brings a clear-view chamber together with variable-speed operation, touchscreen controls and a dedicated water-management package.
